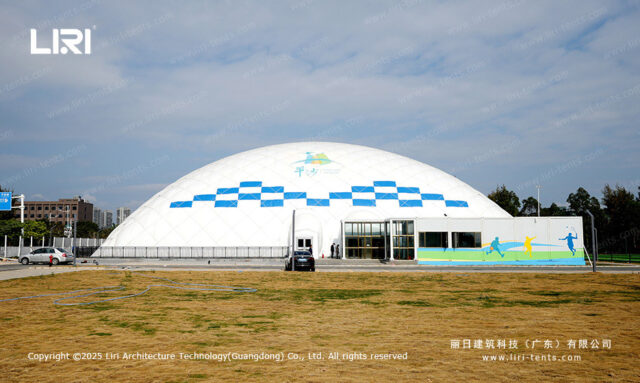

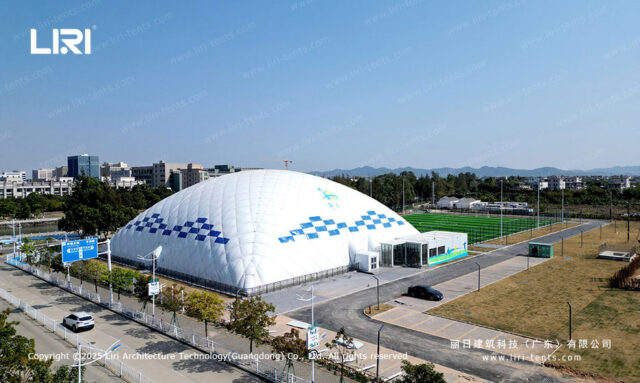

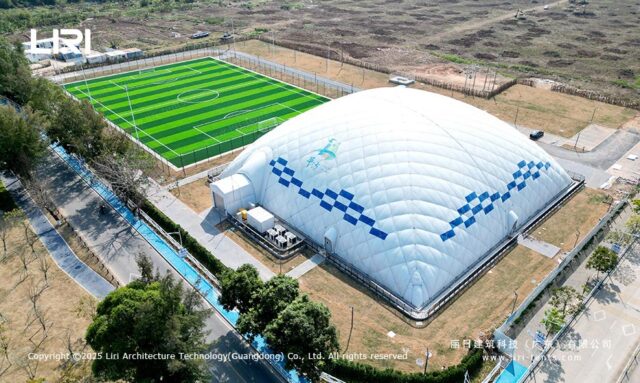

Sports air domes are air-supported clear-span enclosures that deliver a column-free playing field at a fraction of rigid-build cost. They keep courts, pitches, and pools in play through every season.
Our sports air domes uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Inflate a 20–80 m clear-span enclosure on a perimeter foundation with no interior columns.
- Specify double-layer membrane with insulation for winter heating efficiency.
- Fit airlocks, rolling doors, and HVAC for comfortable play in any climate.
- Integrate lighting truss, line markings, and spectator bleachers inside.
- Monitor pressure, access, and climate through an automated control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 20–80 m span (66–262 ft), air-supported |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications

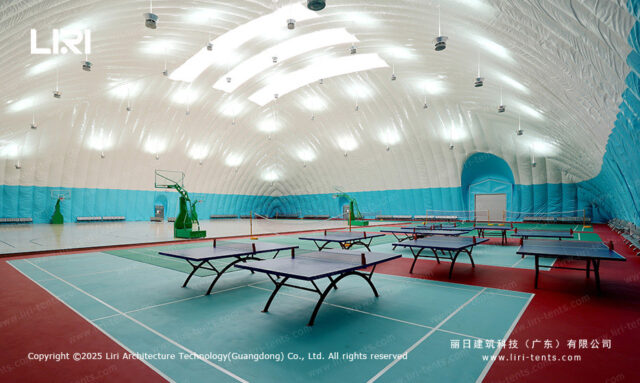

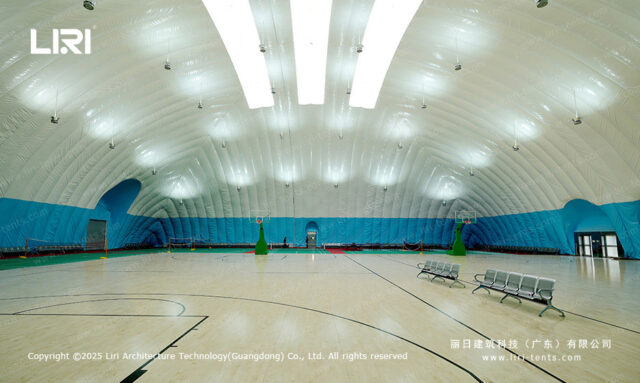

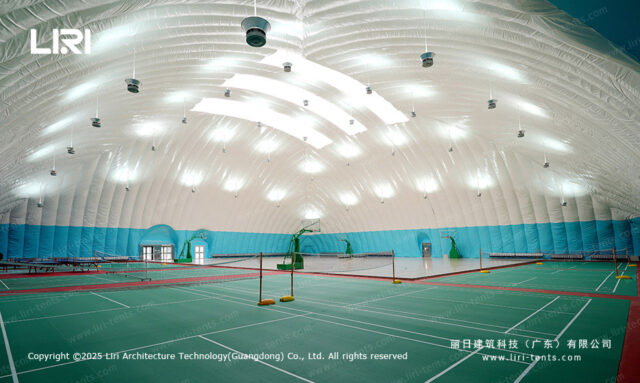

- Indoor tennis, padel, and basketball courts.
- Covered swimming pools and training centers.
- School and community sports halls.
- Ice rinks and winter training fields.
Related Products
Sports Air Domes — Frequently Asked Questions
What span widths are available for the sports air domes?
Clear spans from 3 m up to 20–80 m span (66–262 ft), air-supported are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the sports air domes be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
