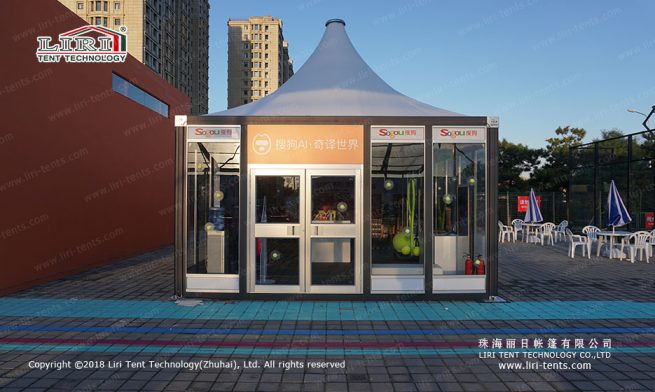

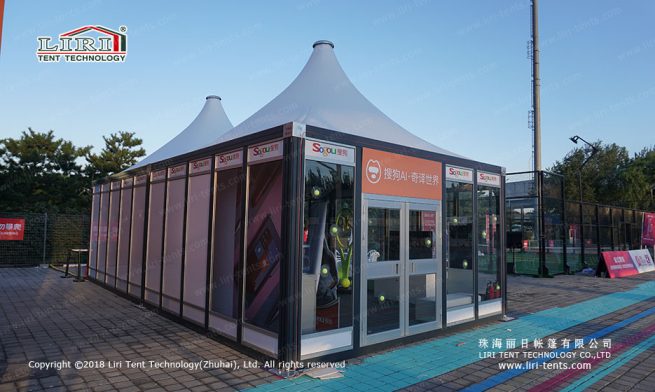

Modular pyramid tents bring a striking high-peak silhouette to any site while keeping the floor fully open and free of interior poles.
Our modular pyramid tents uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Erect a 6–25 m pyramid in 4 m bay modules with a single central peak up to 12 m.
- Frame in anodized 6061/T6 aluminum with tool-free wedge locking.
- Dress the peak in translucent or blackout PVC for day or night events.

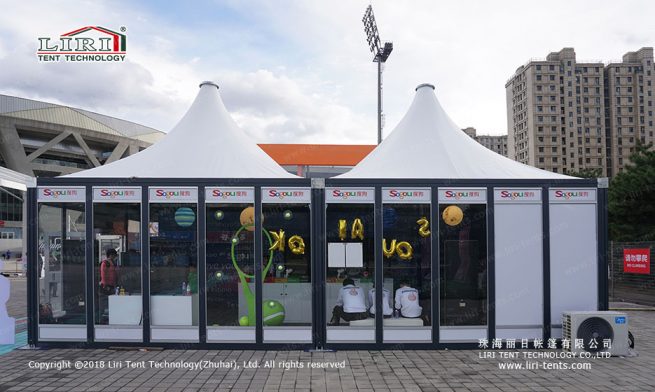

- Link multiple pyramids via gutter eaves to form larger covered complexes.
- Add glass walls, linings or a chandelier rig from the integrated ridge beam.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 6–25 m clear span, 4–8 m eave |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 100 km/h (62 mph), 0.5 kN/m² |
| Snow load | 100 kg/m² (20 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Wedding ceremonies and luxury banquet halls
- Festival pavilions and brand activation stages
- Resort dining and poolside lounges
- Exhibition atriums and VIP hospitality suites
Related Products
Modular Pyramid Tents — Frequently Asked Questions
What span widths are available for the modular pyramid tents?
Clear spans from 3 m up to 6–25 m clear span, 4–8 m eave are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the modular pyramid tents be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
