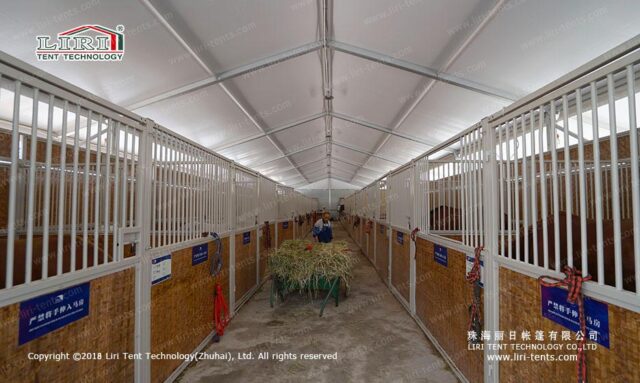

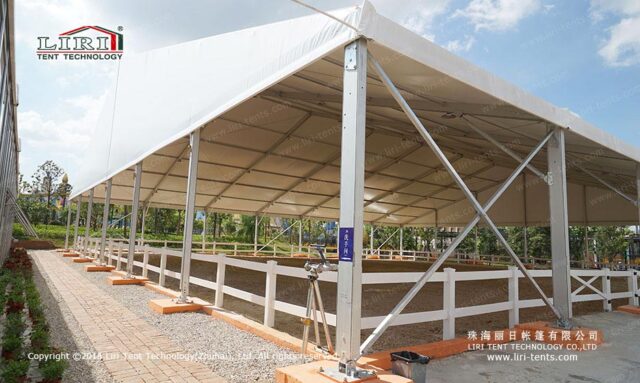

Indoor horse arenas deliver a bright, draught-free riding hall that protects riders, horses and footing through every season.
Our indoor horse arena uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Clear-span 20–60 m widths with 4–6 m eaves for jumping clearance.
- Protect sand and fibre footing with a sealed, dust-controlled envelope.
- Ventilate through ridge vents and roll-up gables for horse comfort.
- Rate the frame to 120 km/h wind for rural, open sites.
- Add kick-boards, viewing galleries and wash-bay annexes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 20–60 m width, 4–6 m eave |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 120 km/h (75 mph), 0.6 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Private and livery yard training halls
- Dressage and showjumping schools
- Riding-club and pony-club venues
- Equine therapy and rehabilitation centres
Related Products
Indoor Horse Arena — Frequently Asked Questions
What span widths are available for the indoor horse arena?
Clear spans from 3 m up to 20–60 m width, 4–6 m eave are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the indoor horse arena be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
