The star shade tent is a radial canopy with peaks radiating from a center mast, giving wide shade with a striking star silhouette. It suits open-air gatherings where only light cover is needed.
Our star shade tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Stretch a radial canopy from a central mast to 5–20 m point-to-point coverage.
- Support the peaks on a slim aluminum frame with minimal ground fixings.
- Specify UV-block PVC or shade-cloth skin in custom colors.
- Add side curtains or walls to convert shade into a light enclosure.

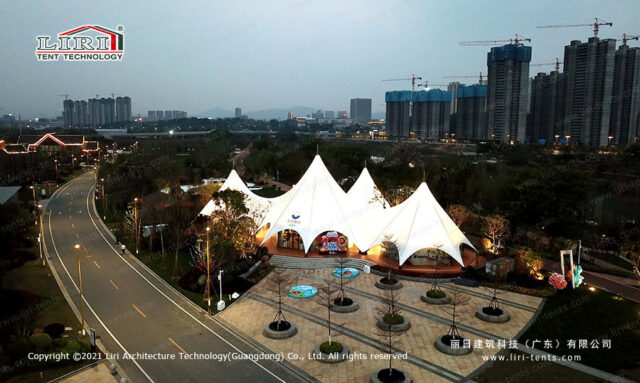

- Cluster several star shades into a connected covered plaza.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 5–20 m point-to-point (16–66 ft), radial |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Market and festival shade zones.
- Beach and poolside lounges.
- Outdoor café and beer-garden cover.
- Event welcome and queue areas.
Related Products
Star Shade Tent — Frequently Asked Questions
What span widths are available for the star shade tent?
Clear spans from 3 m up to 5–20 m point-to-point (16–66 ft), radial are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the star shade tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
