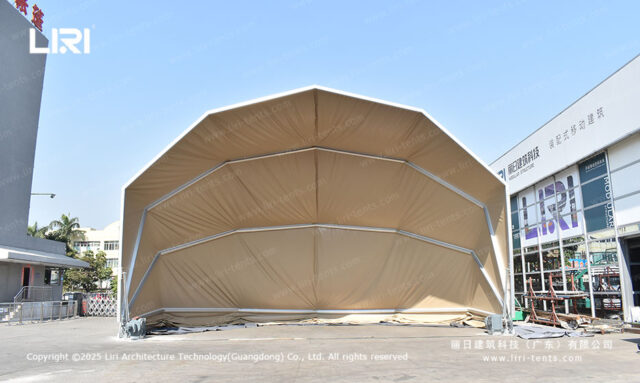

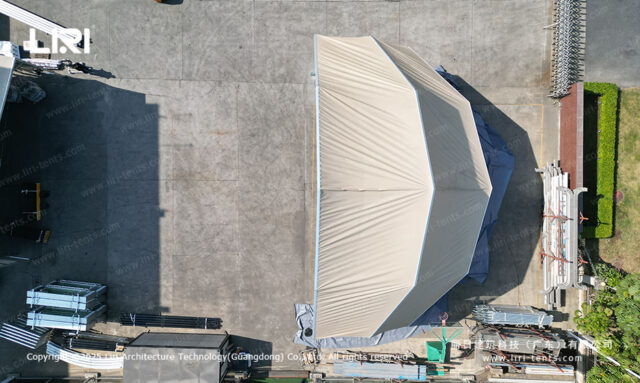

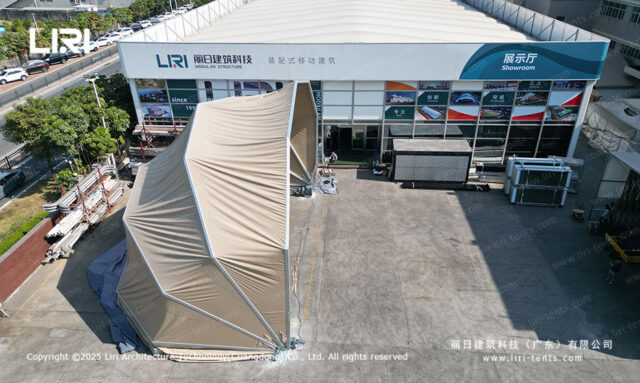

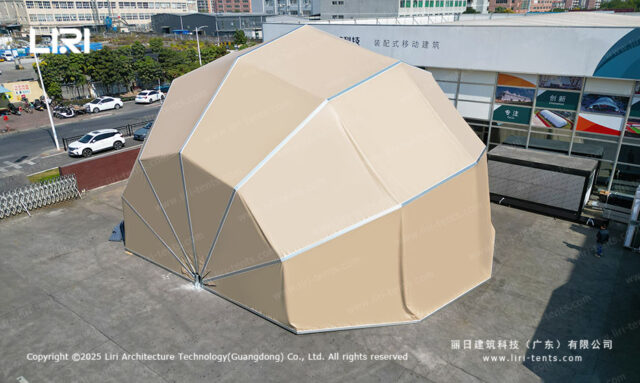

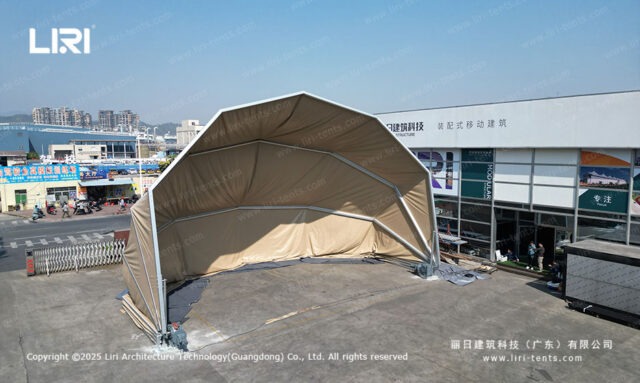

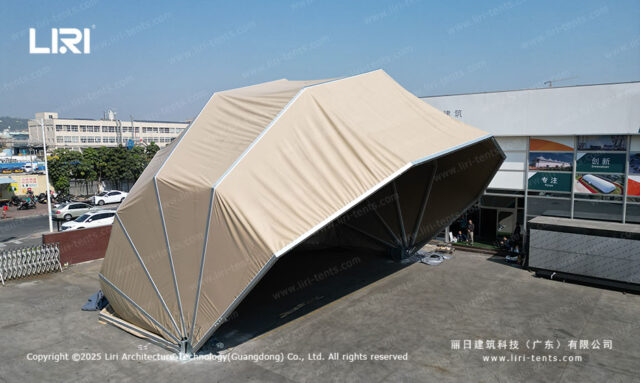

Intelligent Control Scallop Hangar
The intelligent control scallop hangar is an aluminum clear-span shelter with a scalloped ridge and a motorized door that opens fully or in part at the touch of a controller. It gives fast, weather-protected access for aircraft, vehicles and bulk storage.
Our intelligent control scallop hangar uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Reach 20-60 m clear spans on a 6-series T6 aluminum frame that resists wind and snow loads.
- Drive the scalloped warehouse door by electric intelligent control, opening whole or partial bays.
- Separate the cover in double-sided PVC that is rain, UV and flame retardant.
- Fold the fabric and break down the frame for compact transport and repeat deployment.
- Expand the bay length in 3-5 m modules to fit the site and load.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 20-60 m span (66-197 ft), scalloped ridge with electric door |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Aircraft, helicopter and UAV maintenance hangars.
- Vehicle, bus and equipment garages.
- Logistics transit and material storage points.
- Exhibition awnings and workshop canopies.
Related Products
Intelligent Control Scallop Hangar — Frequently Asked Questions
What span widths are available for the intelligent control scallop hangar?
Clear spans from 3 m up to 20-60 m span (66-197 ft), scalloped ridge with electric door are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the intelligent control scallop hangar be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
