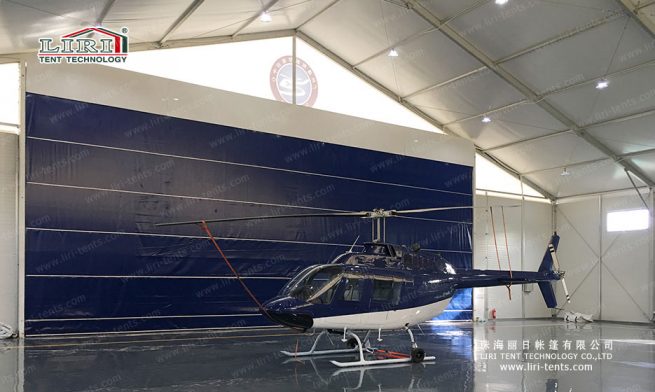

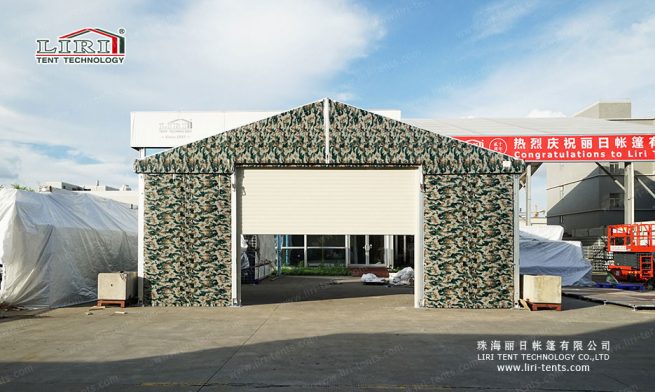

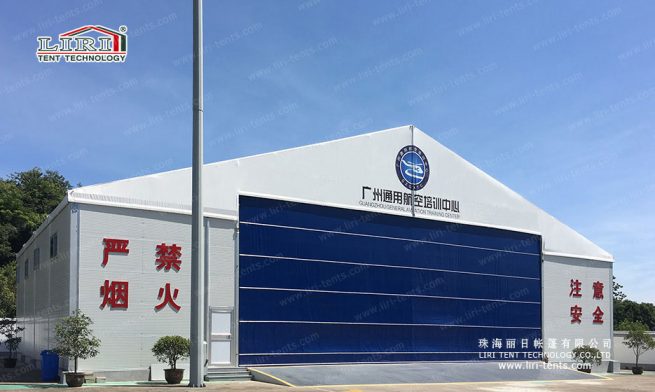

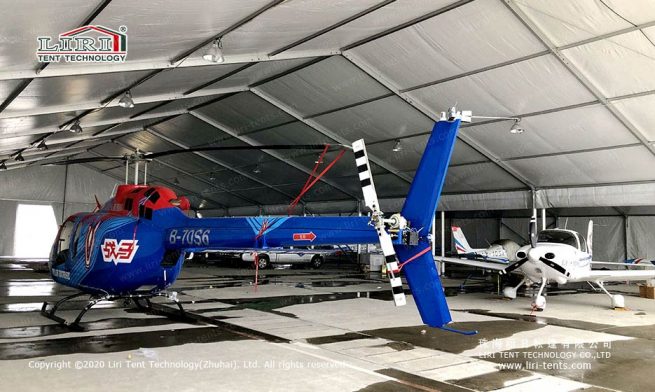

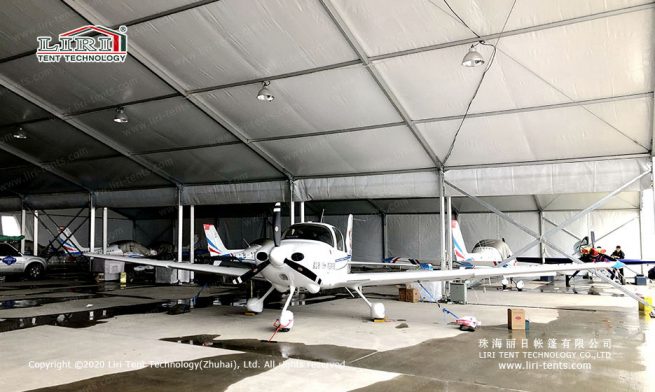

Helicopter Hangar Tent
The Helicopter Hangar Tent provides a clear-span aluminum shelter with a tall roll-up front, protecting rotorcraft and equipment from weather with minimal foundation work.
Our helicopter hangar tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Clear-span 20-60 m on a heavy 6061/T6 aluminum frame with door heights to 12 m.
- Clad with 850 g/m2 PVC roof and 650 g/m2 sidewalls, flame-retardant to DIN4102 B1.
- Fit a zip or rigid roll-up door sized to the rotor diameter.
- Withstand 80-100 km/h wind and 75 kg/m2 snow on galvanized connectors.
- Add lighting, flooring, and work bays for maintenance use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | Span 20-60 m (66-197 ft), door height up to 12 m |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Helicopter and light-aircraft storage.
- MRO and field maintenance shelters.
- Mining and remote-site equipment cover.
- Military and emergency response depots.
Related Products
Helicopter Hangar Tent — Frequently Asked Questions
What span widths are available for the helicopter hangar tent?
Clear spans from 3 m up to Span 20-60 m (66-197 ft), door height up to 12 m are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the helicopter hangar tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
