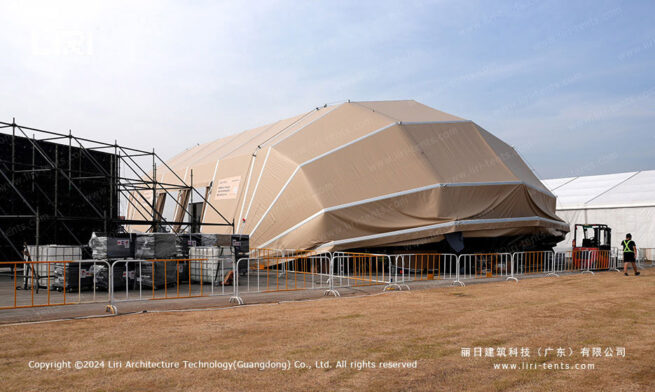

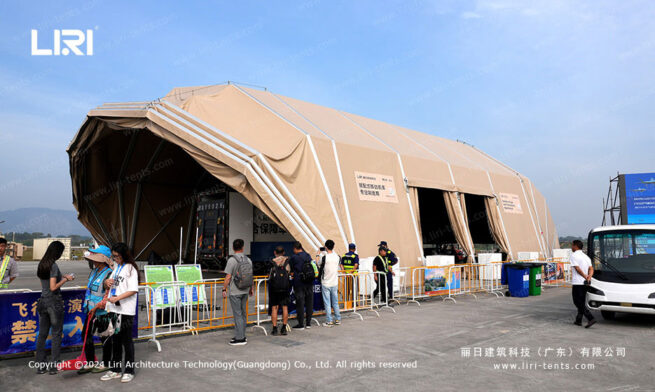

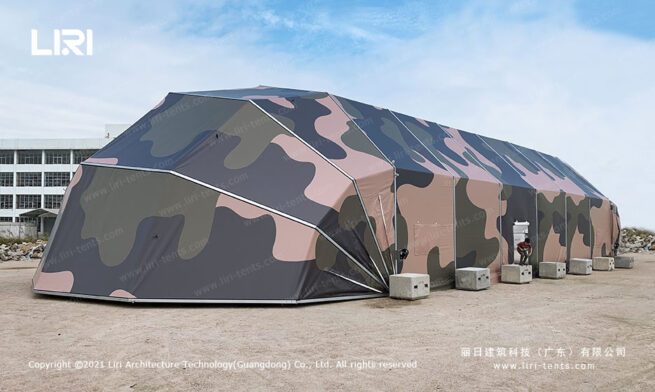

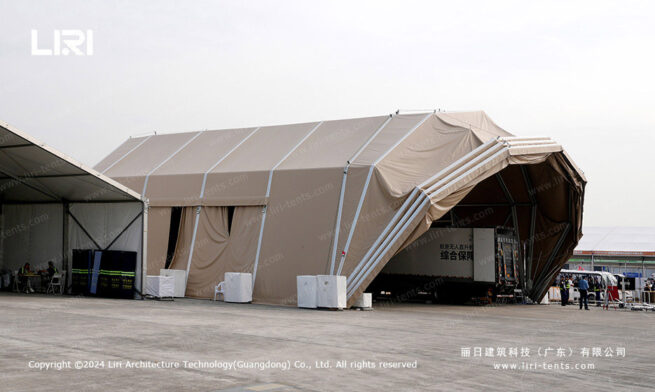

Eyelid Hangar Tent
The eyelid hangar tent uses a motorized clamshell skin that opens and closes like an eyelid, giving planes and vehicles a rapid, weather-sealed shelter on almost any ground.

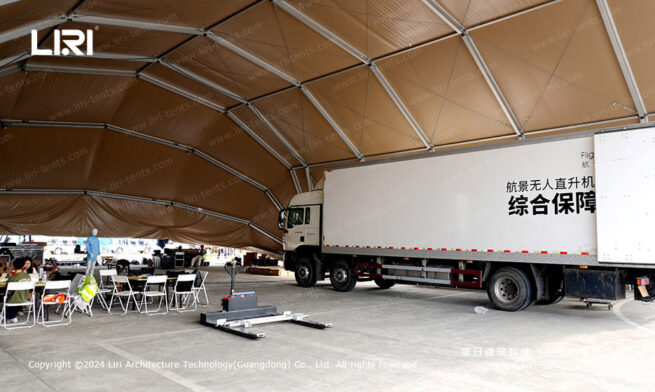

Our eyelid hangar tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Cover 20–60 m clear spans with a PVC skin that drives open and shut automatically.
- Size the bay to your aircraft or vehicle dimensions for a custom-fit hangar.
- Set up on concrete, grass, or temporary ground with ballast or anchor feet.
- Hold 80–100 km/h wind and 75 kg/m² snow on a 6061/T6 aluminum frame.
- Pack every component for air or truck transport between sites.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 20–60 m clear span (66–197 ft), clamshell opening |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Civil and military aircraft hangars
- Helicopter and UAV shelters
- Heavy-vehicle and equipment storage
- Rapid-deploy field maintenance bays
Related Products
Eyelid Hangar Tent — Frequently Asked Questions
What span widths are available for the eyelid hangar tent?
Clear spans from 3 m up to 20–60 m clear span (66–197 ft), clamshell opening are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the eyelid hangar tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
