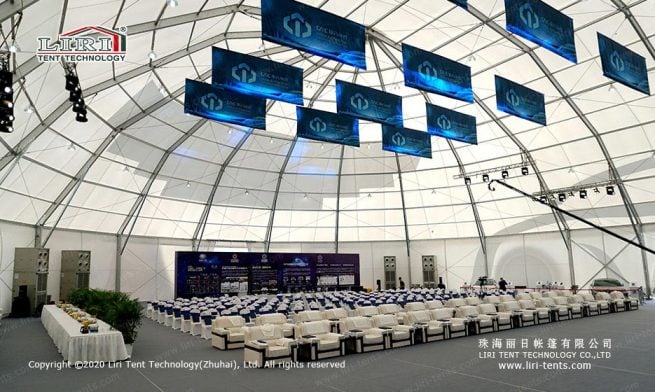

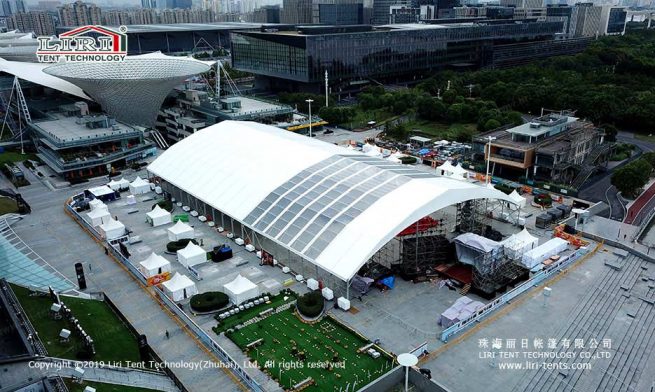

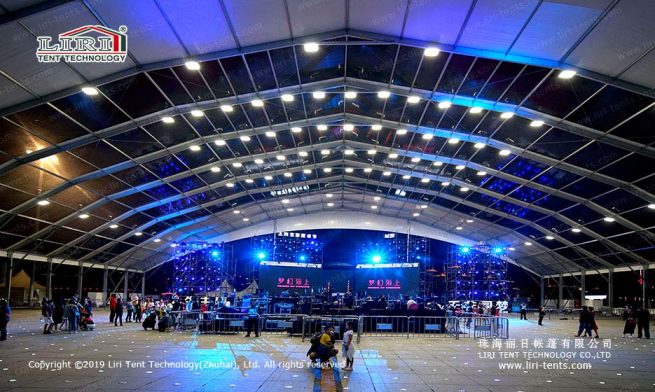

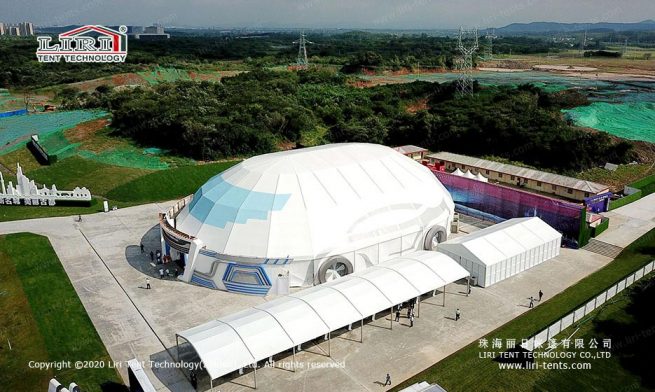

Polygon Huge Hall
The polygon huge hall is our largest clear-span solution for mass-gathering events, industrial shelters and sports arenas. Multi-sided geometry maximizes interior volume and sightlines while the aluminum frame delivers fast, reusable deployment at scale.
Product Overview
- Largest clear spans in our range, no interior columns
- Multi-sided geometry for maximum volume and sightlines
- Engineered for high wind and snow loads
- Modular bays for very long or wide footprints
- Industrial and event-grade lining options
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 30–80 m (98–262 ft) |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Sports arenas and stadium covers
- Mass-gathering events and festivals
- Industrial and logistics halls
- Large exhibition and convention spaces
Related Products
Polygon Huge Hall — Frequently Asked Questions
What span widths are available for the polygon huge hall?
Clear spans from 3 m up to large widths are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the polygon huge hall be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
