Transparent Tent

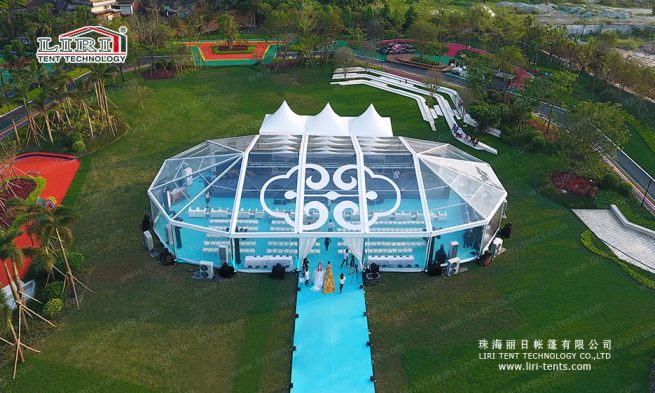

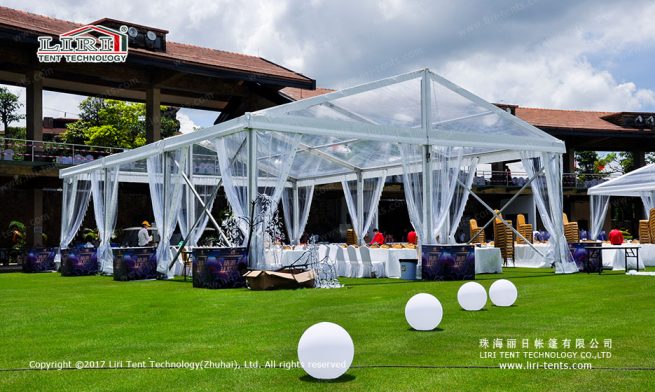

The transparent tent is a clear-roofed structure finished with glass or transparent PVC walls, reading like a crystal palace day or night. It brings full natural light indoors and suits both short events and long-term venues on grass, concrete or water.
Our transparent tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Span 10-40 m clear widths with a fully transparent roof and wall system.
- Specify glass walls or clear PVC panels around the perimeter for the look you want.
- Cut daytime lighting cost with a clear cover that floods the interior with natural light.

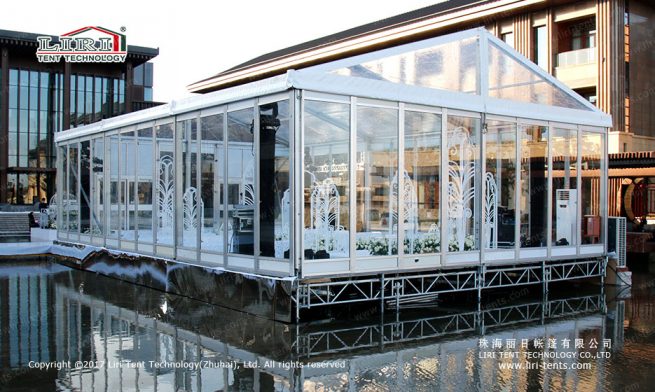

- Set the base on grass, hard ground or even floating pontoons for waterside events.
- Finish interiors with lining, flooring and lighting for a dressed venue fast.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 10-40 m span (33-131 ft), clear roof + glass/clear PVC walls |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Wedding receptions and gala dinners.
- Product launches and VIP viewing lounges.
- Garden parties and rooftop socials.
- Restaurant and bar seasonal extensions.
Related Products
Transparent Tent — Frequently Asked Questions
What span widths are available for the transparent tent?
Clear spans from 3 m up to 10-40 m span (33-131 ft), clear roof + glass/clear PVC walls are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the transparent tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
