Indoor Badminton Court

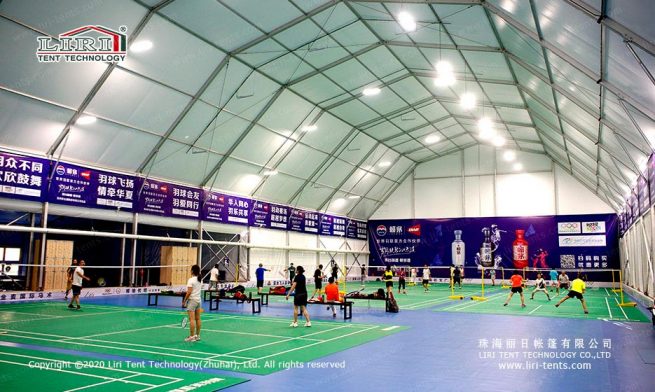

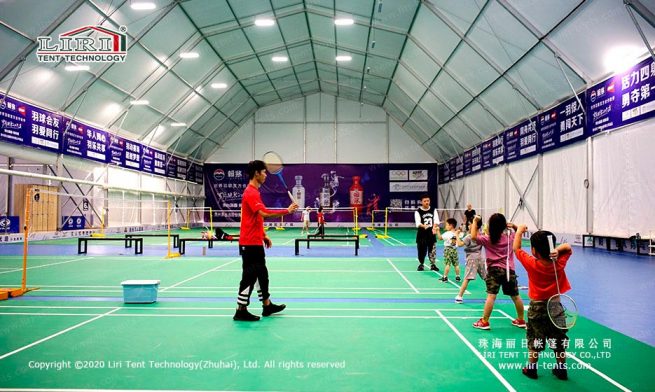

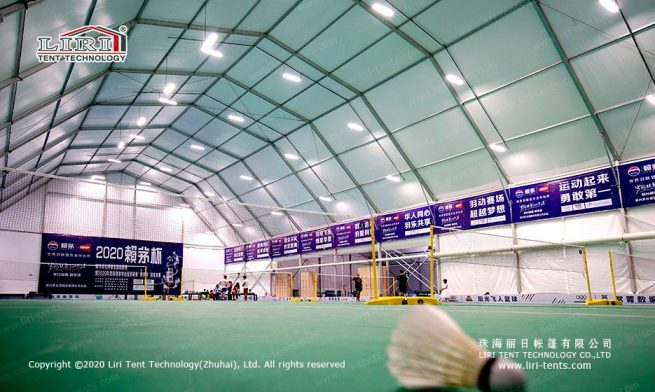

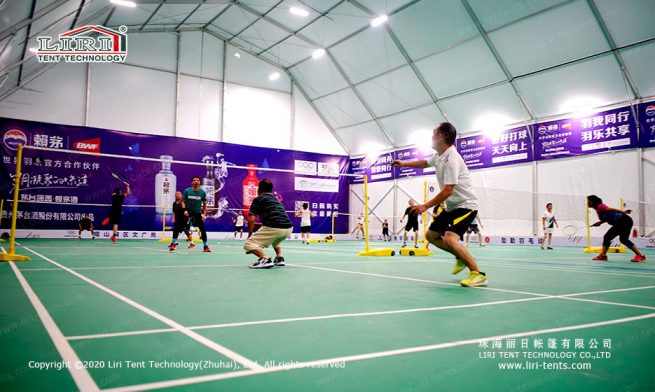

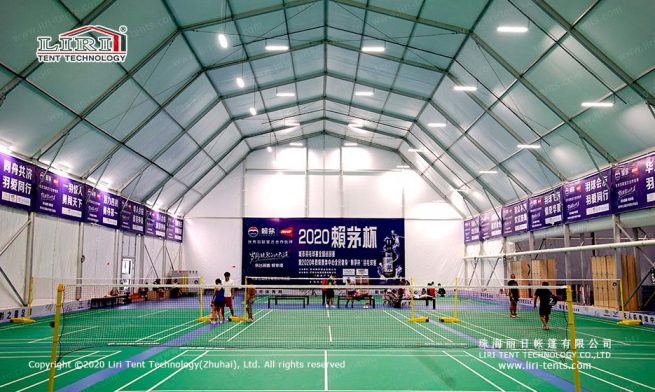

The indoor badminton court is a clear-span fabric hall that turns an open lot into an all-weather sports venue with no center poles. A 30 m wide hall can hold around 20 standard courts, lit and lined for play in any season.
Our indoor badminton court uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Open 15-40 m clear spans so courts sit pole-free across the full floor.
- Build the frame from prefabricated aluminum erected on site in a couple of days.
- Let daylight through 850 g/m2 PVC while staying waterproof, fire-resistant and anti-UV.
- Fit sports lighting, badminton PVC flooring, A/C and sidewall vents as needed.
- Reuse the modular kit on soft land or concrete and relocate without waste.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 15-40 m span (49-131 ft), holds up to 20 courts in one hall |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Club and community badminton halls.
- School and university sports centers.
- Multi-sport training venues.
- Pay-per-play and rental court businesses.
Related Products
Indoor Badminton Court — Frequently Asked Questions
What span widths are available for the indoor badminton court?
Clear spans from 3 m up to 15-40 m span (49-131 ft), holds up to 20 courts in one hall are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the indoor badminton court be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
