Big Badminton Court Tent Sport Polygon Tent
The Polygon Tent Series is design for the need of high interior space and special appearance. Suitable used for sport tent, wedding party tent, exhibition tent and so on.

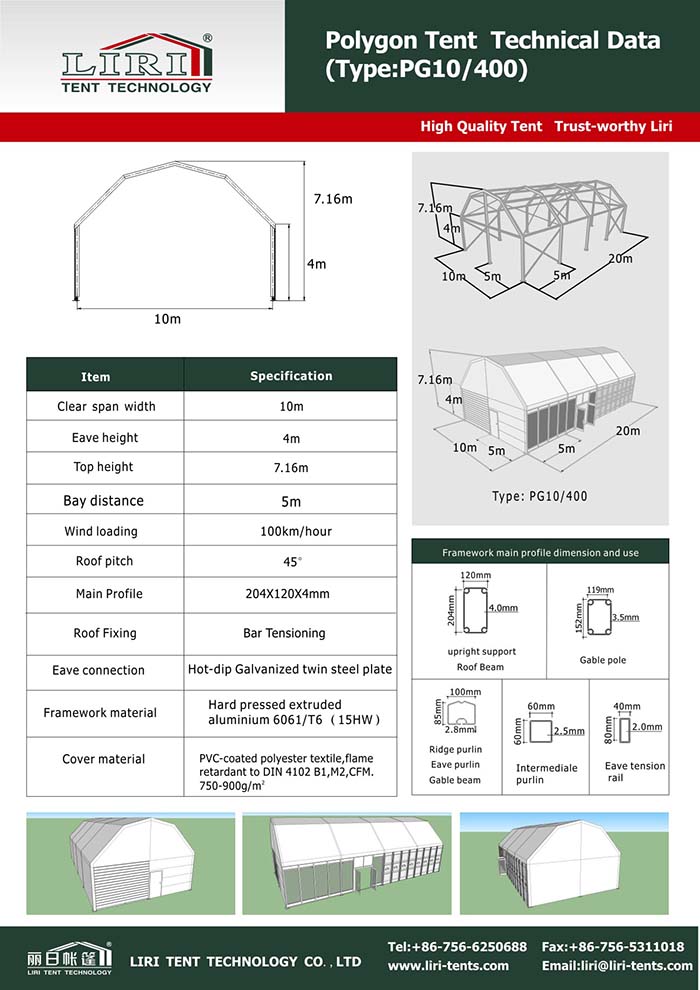

The clear span widths of the Polygon Tent is from 10m to 60m with unlimited length. It could resist the 100km/h strong wind. Please refer to the following chart to get more detail,
| Model No. | Span Width | Length | Eave Height | Ridge Height | Bay Distance | Main Profile |
| PG10/400 | 10m | unlimited | 4m | 7.16m | 5m | 204x120x4mm |
| PG12/400 | 12m | unlimited | 4m | 7.4m | 5m | 204x120x4mm |
| PG15/400 | 15m | unlimited | 4m | 8.75m | 5m | 204x120x4mm |
| PG18/400 | 18m | unlimited | 4m | 9.15m | 5m | 204x120x4mm |
| PG20/400 | 20m | unlimited | 4m | 9.42m | 5m | 256x121x5mm |
| PG25/400 | 25m | unlimited | 4m | 11.72m | 5m | 256x121x5mm |
| PG30/400 | 30m | unlimited | 4m | 13.2m | 5m | 256x121x5mm |
| PG40/400 | 40m | unlimited | 4m | 15.6m | 5m | 300x120x5m |
| PG50/400 | 50m | unlimited | 4m | 16m | 5m | 400x120x7mm |
| PG60/400 | 60m | unlimited | 4m | 18m | 5m | 400x120x7mm |
System Features
–Elegant polygon appearance
–High interior space
–Four-channel aluminium frame
–Bar tensioning roof system
–Durable, wind resistant, flame retardant with according certificates
–Modular system easy to installation and dismantle
–Customized design for special requirements available
For more details, please contact me,
Zhuhai Liri Tent Technology Co., Ltd
Ms. Rainbow
Mob. / Whatsapp: +86 135 7066 9565
Pho. +86 0756 6320 923
Email: tent65@liri-tents.com
Skype: tents65
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this sports tent?
This sports tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
Will the tent protect the sports surface underneath?
Yes. The clear-span design leaves the full court/field free of poles, and optional flooring or ground protection can be added so the playing surface stays intact.
What are the MOQ, lead time and shipping for this sports tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
