Warehouse Tent

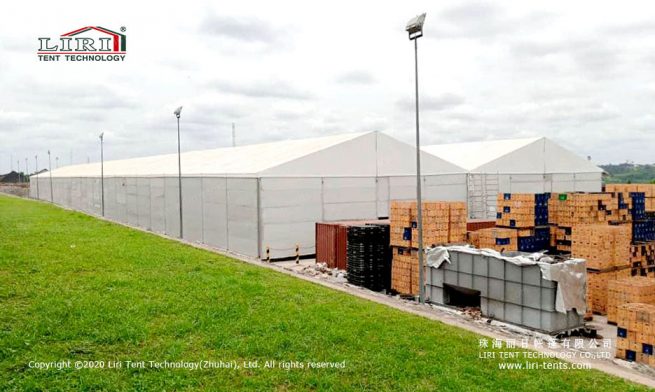

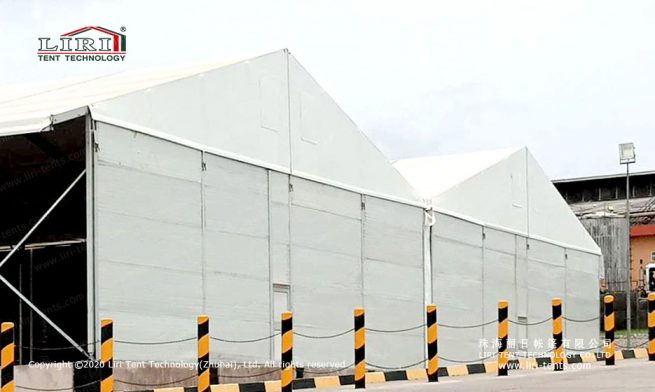

A warehouse tent gives rapid, relocatable bulk storage under a clear-span aluminum frame — no interior columns to block racking or forklift aisles. It is the fast, low-cost answer to overflow stock, equipment cover and seasonal demand.
Product Overview
- Wide clear span for racking and aisles
- Rapid assembly and full relocation

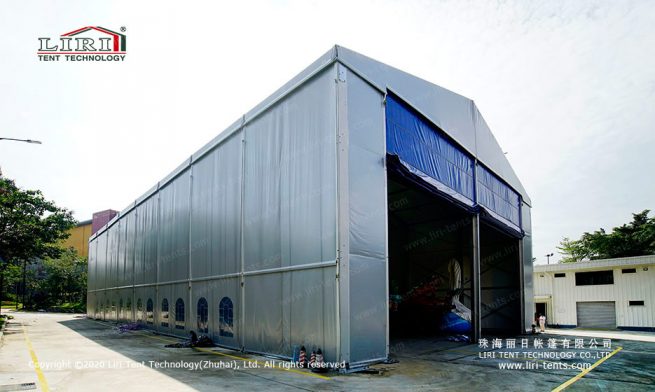

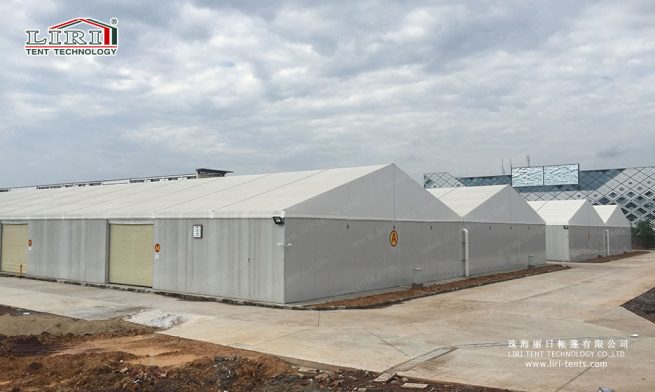

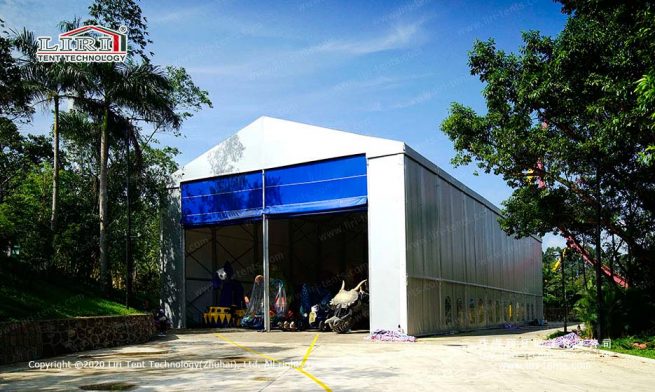

- Roll-up and personnel door options
- Insulation and ventilation packages
- Industrial-grade PVC skin
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 10–50 m (33–164 ft) |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Bulk storage and distribution
- Equipment and machinery cover
- Seasonal overflow stock
- Workshops and logistics hubs
