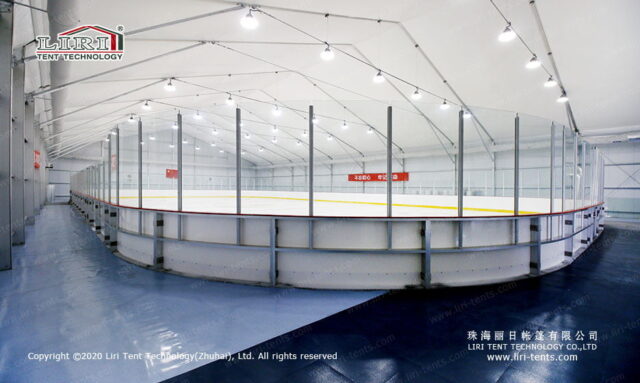

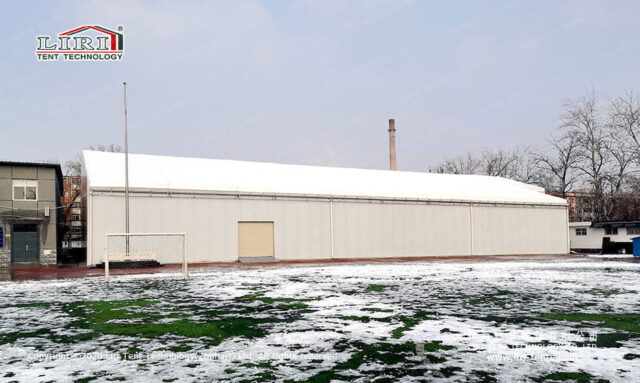

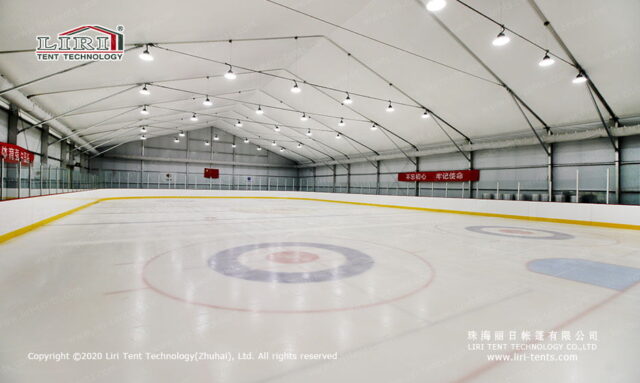

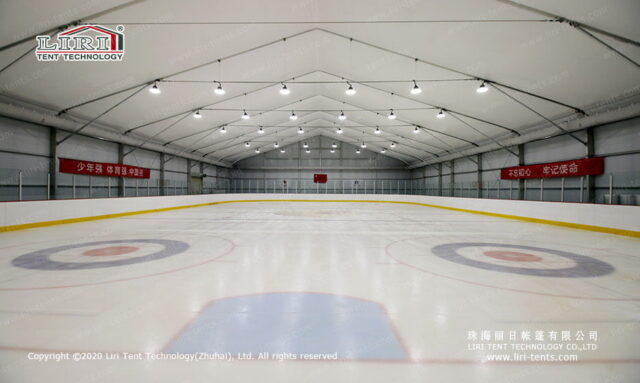

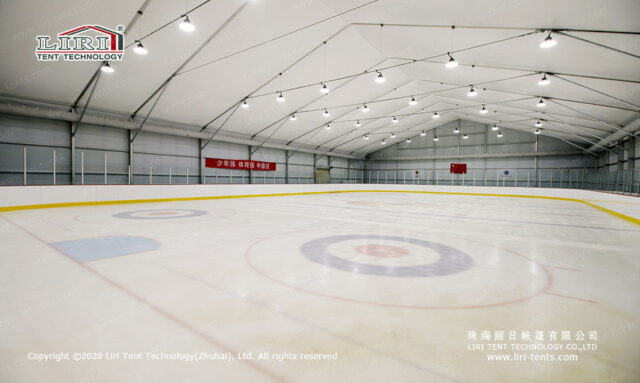

Clear Span Tent for Ice Hockey Rink
The clear-span ice hockey rink tent is an aluminum structure that encloses a standard 26-30 m wide rink under a column-free roof. With refrigeration, lighting and climate control added, it delivers an all-weather skating venue in days rather than months.
Our clear span tent for ice hockey rink uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Span up to 70 m with no interior poles, length extended in 3-5 m bays to fit any rink standard.
- Frame the hall in anodized 6061/T6 aluminum rated for 80-100 km/h wind and 75 kg/m2 snow.
- Skin walls and roof in 850 g/m2 PVC that is waterproof, UV-stable and flame retardant.
- Integrate rink refrigeration, sports lighting, A/C and insulated lining for year-round ice.
- Erect on grass or concrete and relocate the whole hall when the season moves.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 30-70 m span (98-230 ft), length extendable 3-5 m bays |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Public and training ice hockey rinks.
- Seasonal skating and curling centers.
- School and community sports halls.
- Temporary winter sports venues.
Related Products
Clear Span Tent for Ice Hockey Rink — Frequently Asked Questions
What span widths are available for the clear span tent for ice hockey rink?
Clear spans from 3 m up to 30-70 m span (98-230 ft), length extendable 3-5 m bays are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the clear span tent for ice hockey rink be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
