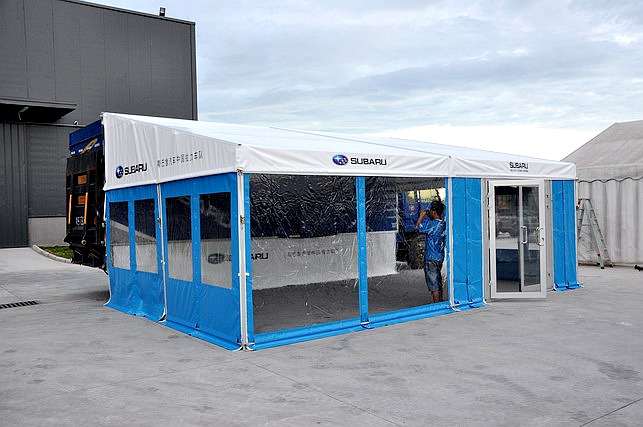

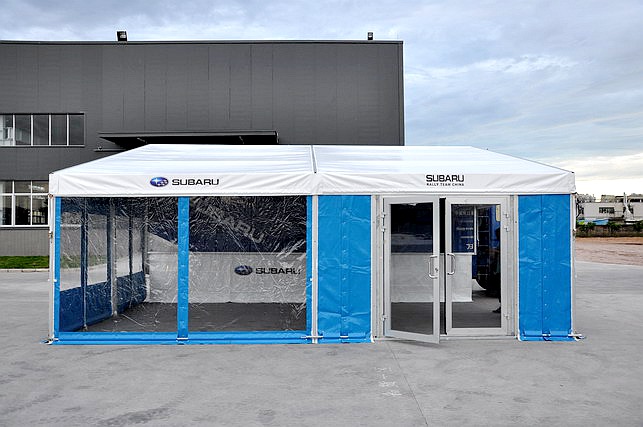

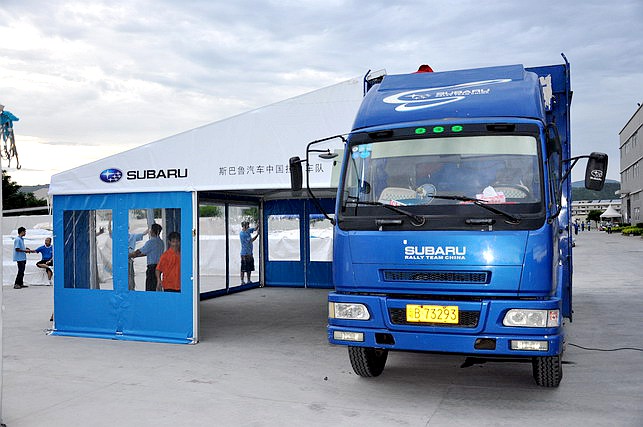

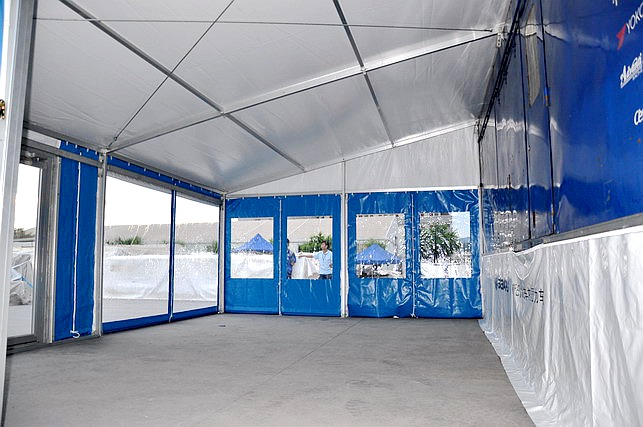

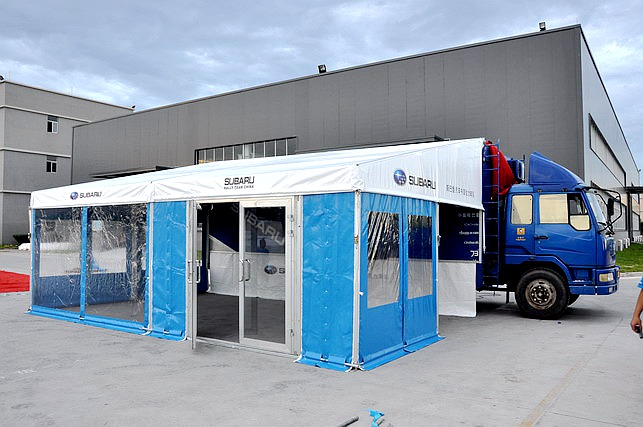

The trailer tent is a towable unit that unfolds into a spacious sheltered room wherever the vehicle can park. It merges camper convenience with a real tent-like living space.
Our trailer tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Unfold a 12–40 m² living area from a road-legal trailer base.
- Support the canopy on a fixed aluminum frame with no extra tools.
- Fit the interior with beds, a kitchenette, and storage as configured.
- Add awnings and side rooms to extend covered space on site.
- Hook up power and water from the trailer supply when pitched.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 12–40 m² (130–430 ft²), towable |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Caravan parks and campsites.
- Mobile hospitality and touring stays.
- Event crew and vendor accommodation.
- Roadside and road-trip glamping.
Related Products
Trailer Tent — Frequently Asked Questions
What span widths are available for the trailer tent?
Clear spans from 3 m up to 12–40 m² (130–430 ft²), towable are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the trailer tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
