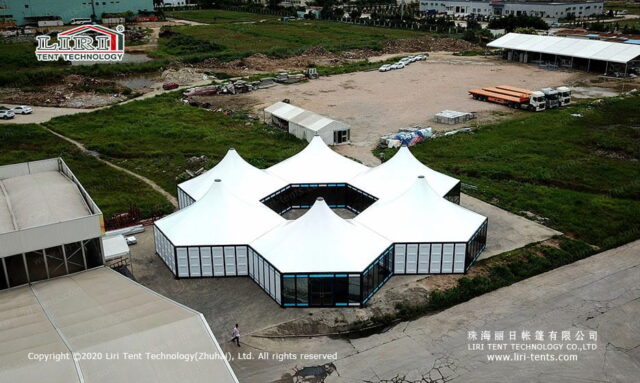

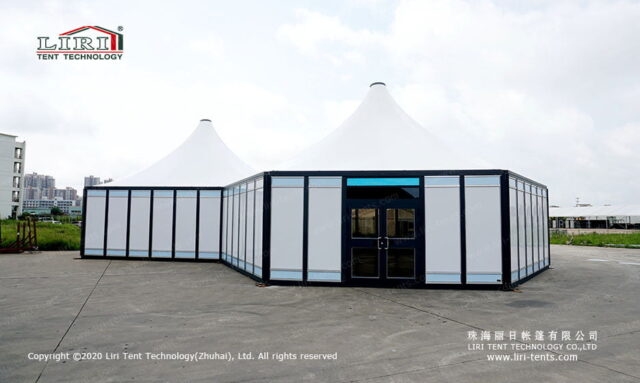

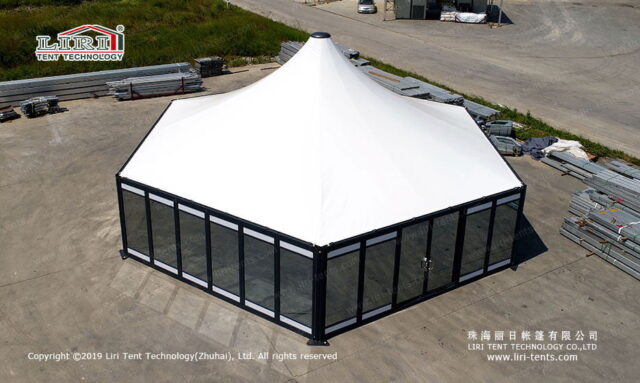

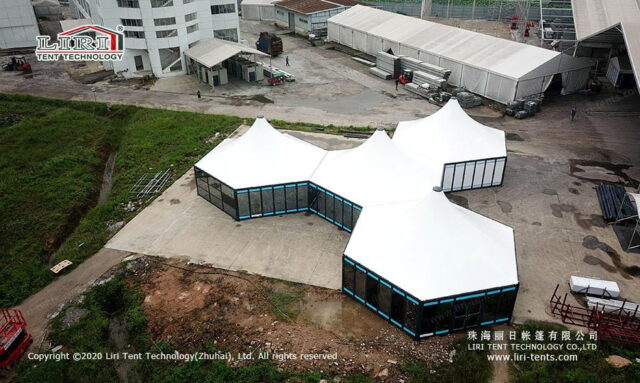

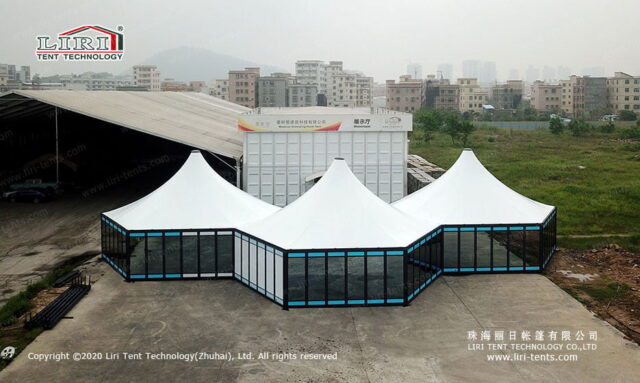

Hexagon Module Square Tent
The Hexagon Module Square Tent pairs a six-sided clear-span aluminum frame with interchangeable wall panels, giving event planners a distinctive footprint that assembles without interior poles.
Our hexagon module square tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Bolt together six anodized 6061/T6 aluminum modules in 5 m bays for a rigid, pole-free 8-25 m hexagon floor.
- Clip on 850 g/m2 PVC roof covers and 650 g/m2 sidewalls rated DIN4102 B1 flame retardant.
- Swap solid, glass, or transparent wall cassettes to match exhibition, retail, or garden use.
- Withstand 80-100 km/h wind and 75 kg/m2 snow with hot-dip galvanized connectors.
- Integrate flooring, lining, and lighting truss onto the universal eave rail in under a day.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | Side span 8-25 m (26-82 ft), modular 5 m bays, eave 3-4 m |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Brand pavilions and product launches needing a standout six-sided footprint.
- Garden summerhouses and private outdoor lounges.
- Pop-up retail kiosks at malls and festivals.
- Corporate hospitality suites at outdoor shows.
Related Products
Hexagon Module Square Tent — Frequently Asked Questions
What span widths are available for the hexagon module square tent?
Clear spans from 3 m up to Side span 8-25 m (26-82 ft), modular 5 m bays, eave 3-4 m are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the hexagon module square tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
