Double Decker Tent
The double decker tent stacks two clear-span floors under one aluminum frame, doubling your usable area on tight sites where ground space is scarce.
Our double decker tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Stack two 10–30 m clear-span levels for up to 2× the footprint on the same ground.

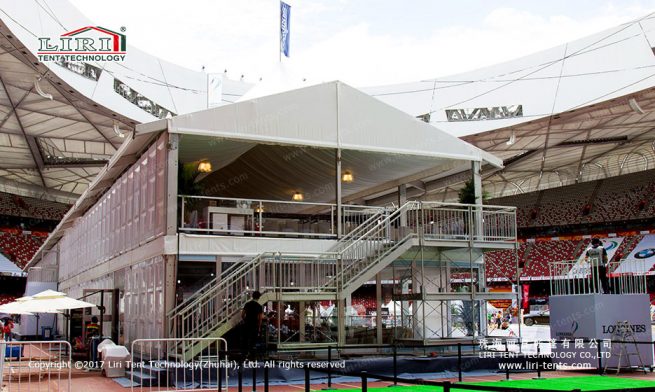

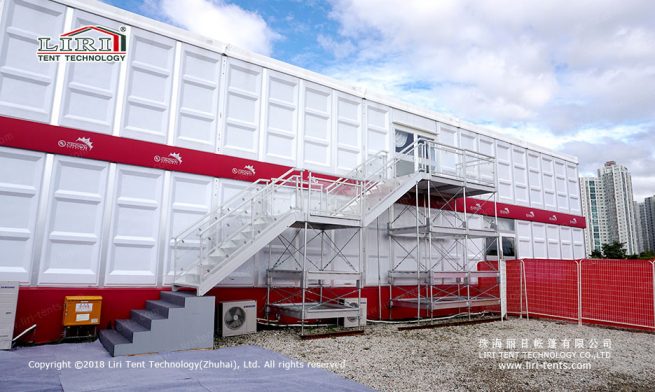

- Link floors with internal or external aluminum stairs and a balcony rail for VIP decks.
- Run a 6061/T6 frame rated to 80–100 km/h wind on both storeys.

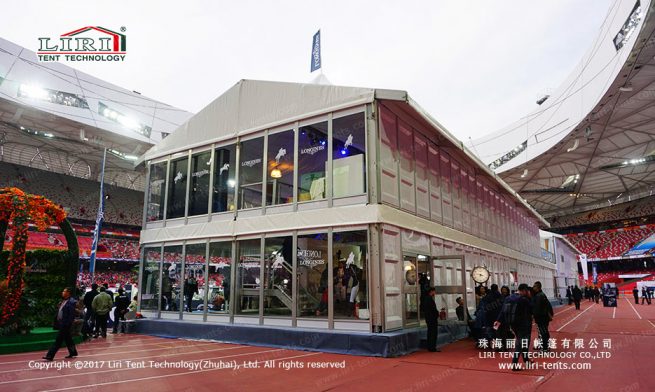

- Fit glass, PVC, or solid walls per level for lounges, offices, or viewing decks.
- Add flooring, HVAC, and lighting truss so each floor works as its own room.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 10–30 m width (33–98 ft), two floors |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Two-level VIP hospitality at races and festivals
- Pop-up restaurants with kitchen below, dining above
- Multi-floor exhibition stands and brand activations

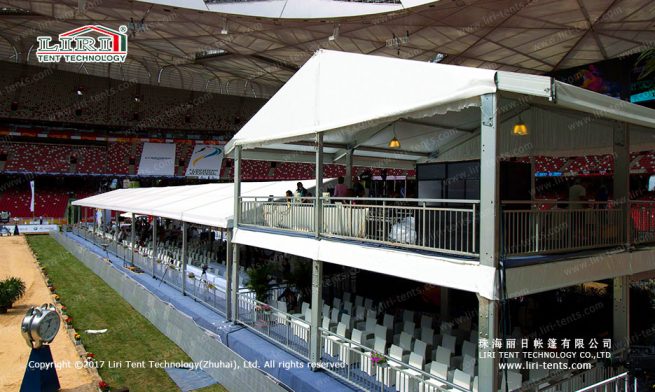

- Rooftop-style viewing decks at stadiums
Related Products
Double Decker Tent — Frequently Asked Questions
What span widths are available for the double decker tent?
Clear spans from 3 m up to 10–30 m width (33–98 ft), two floors are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the double decker tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
