High Peak Double Decker Tent
The High Peak Double Decker Tent stacks a peaked upper deck on a clear-span lower hall, doubling usable floor space without expanding the footprint.
Our high peak double decker tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Span 10-30 m over two levels on a reinforced 6061/T6 aluminum frame in 5 m bays.
- Top both levels with 850 g/m2 PVC and line the high-peak roof for acoustics.
- Access the deck via internal stairs rated for public use.
- Hold 80-100 km/h wind and 75 kg/m2 snow with galvanized connectors.
- Equip with glass walls, flooring, and truss lighting per floor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | Span 10-30 m (33-98 ft), two floors, 5 m bay |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications

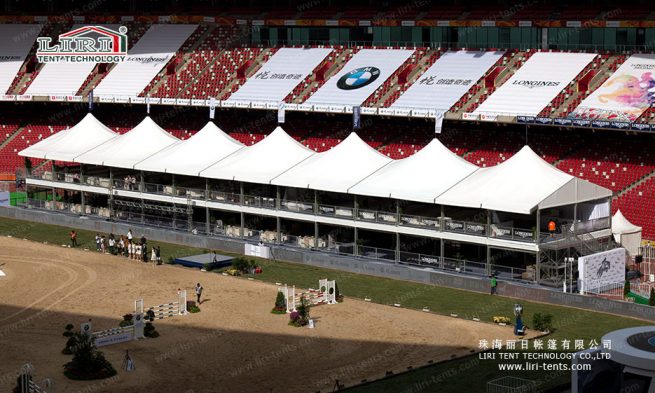

- VIP viewing decks at sports and races.
- Two-level exhibition stands.
- Festival hospitality and bars.
- Corporate gala and product launches.
Related Products
High Peak Double Decker Tent — Frequently Asked Questions
What span widths are available for the high peak double decker tent?
Clear spans from 3 m up to Span 10-30 m (33-98 ft), two floors, 5 m bay are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the high peak double decker tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
