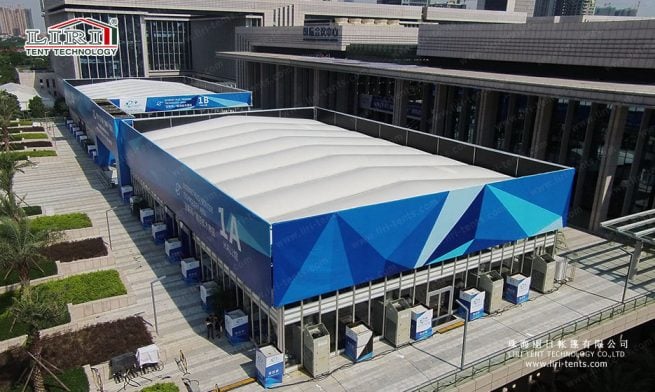

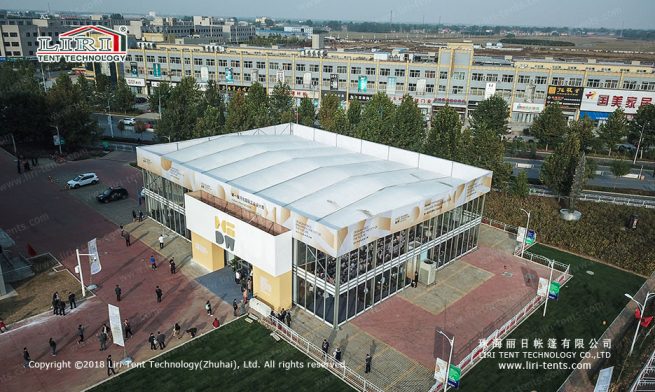

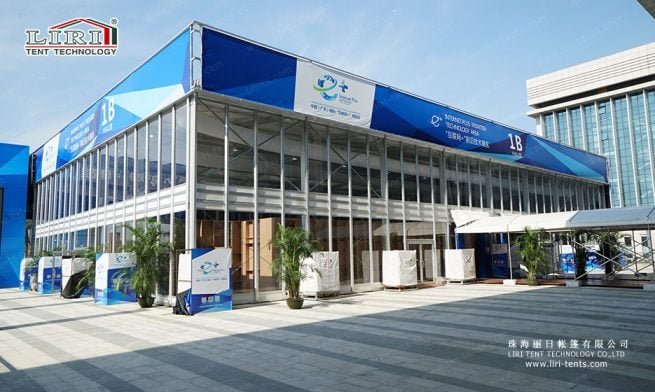

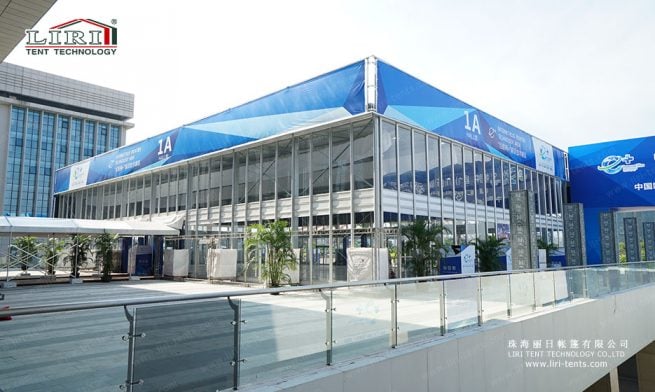

Cube Double Decker Tent
The cube double decker tent stacks two clear-span levels under one structural frame, doubling usable floor area on a small footprint. Its squared eaves and straight walls suit VIP decks, temporary offices and elevated viewing galleries.
Product Overview
- Two clear-span levels in one frame
- Straight walls and squared eaves for a modern look
- Glass balustrade and stair packages
- Load-rated upper deck for people and equipment
- Rapid install and relocation
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 10–30 m (33–98 ft) per level |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- VIP decks and hospitality suites
- Temporary offices and site welfare
- Elevated viewing galleries
- Brand and product launches
