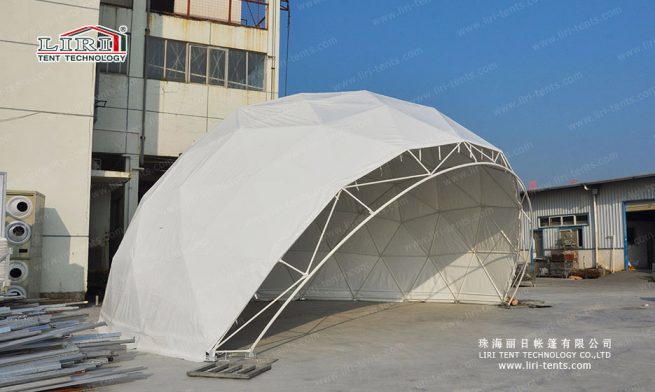

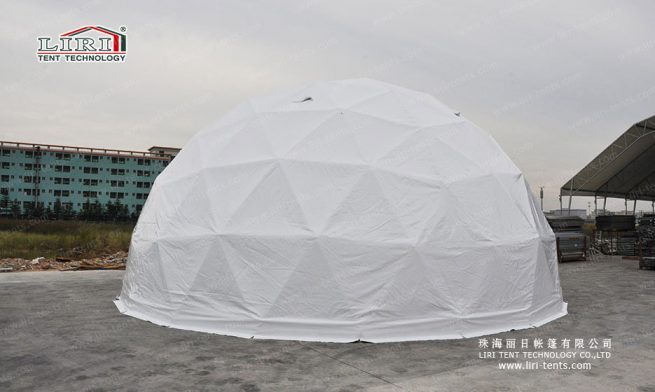

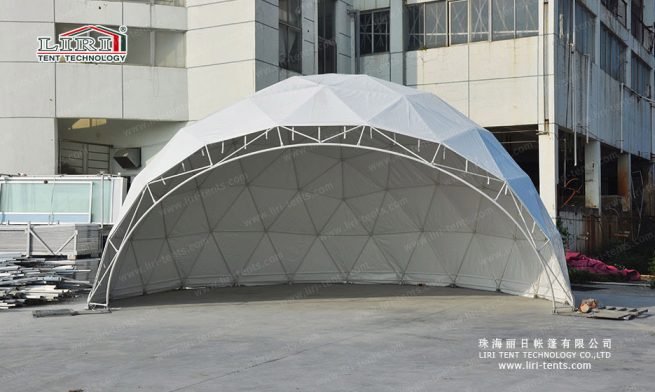

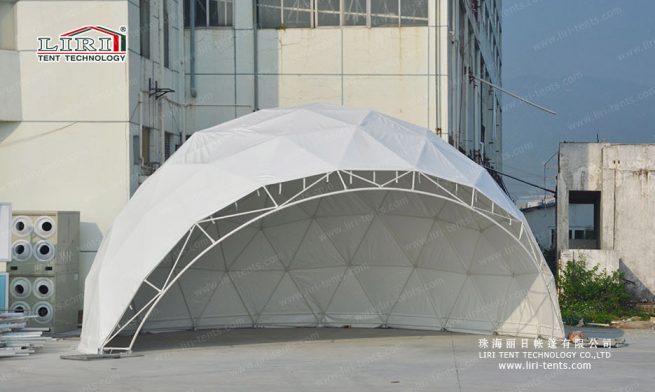

Amphitheater Dome Tent
The amphitheater dome tent opens one side of a geodesic sphere to the outdoors, blending an enclosed stage with an open-air bowl that pulls the crowd and the landscape together.
Our amphitheater dome tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Form 10–40 m geodesic domes with one open face for stage-and-bowl layouts.
- Connect the dome to external space so audiences wrap the performance from every side.
- Mount lighting and rigging on the steel nodes for concert-grade production.
- Seat thousands by pairing the dome with tiered open-air seating.
- Resist 80–100 km/h wind through the spherical frame's even load spread.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 10–40 m diameter (33–131 ft), open geodesic |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Concert and festival main stages
- Open-air theaters and screenings
- Product launches and brand spectaculars
- Conference and multi-use event halls
Related Products
Amphitheater Dome Tent — Frequently Asked Questions
What span widths are available for the amphitheater dome tent?
Clear spans from 3 m up to 10–40 m diameter (33–131 ft), open geodesic are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the amphitheater dome tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
