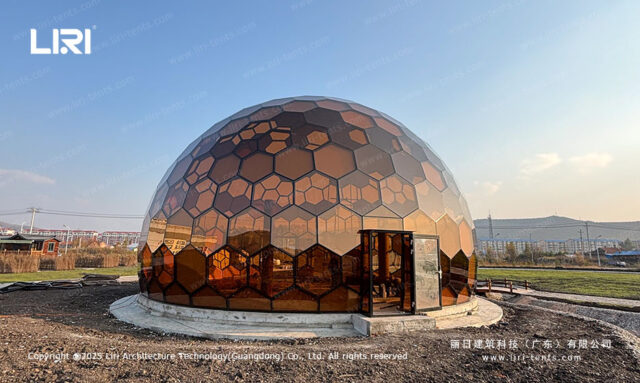

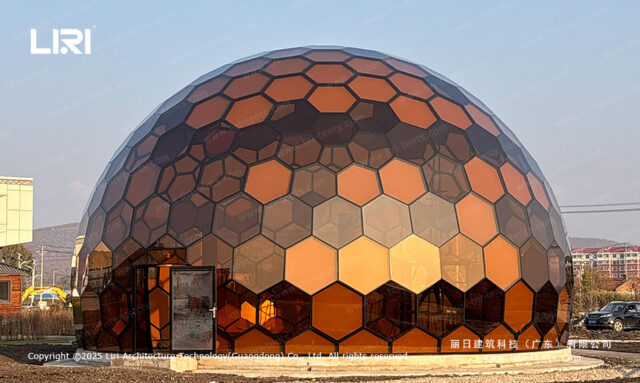

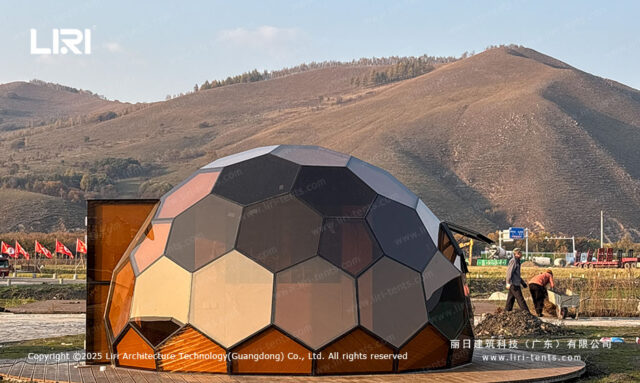

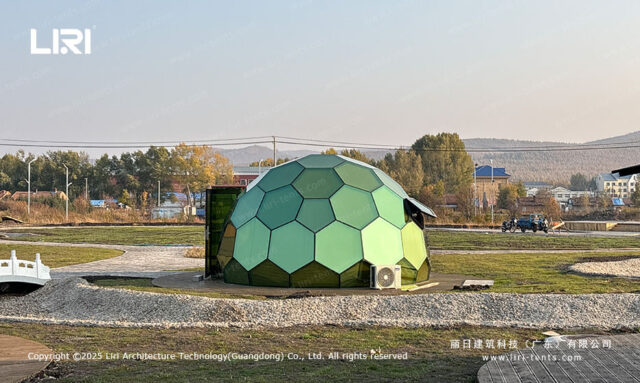

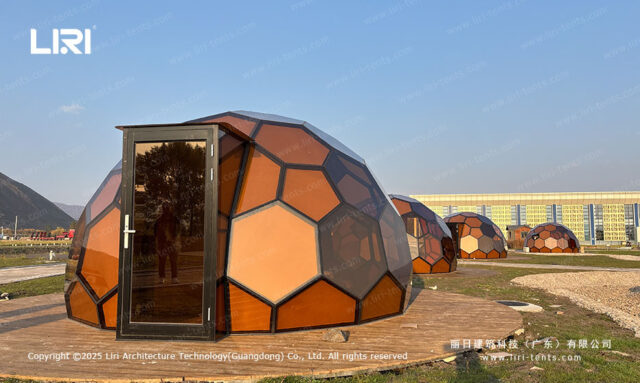

Glass Geodesic Dome
The glass geodesic dome pairs a triangulated aluminum frame with full glass panels for a luminous, fully transparent shelter. It turns any terrace, garden, or plaza into a year-round viewing and dining space.
Our glass geodesic dome uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Erect a triangulated geodesic frame in diameters from 6 m to 30 m with no interior columns.
- Glaze the full envelope in tempered glass with opening vents for natural ventilation.
- Specify double-glazed or Low-E panels to extend the usable season in cold climates.
- Add a glass or solid entrance module and connect to adjacent marquees.
- Fit interior climate control, lighting, and flooring for comfortable all-weather use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 6–30 m diameter (20–98 ft) |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Fine-dining restaurants and wine bars under glass.
- Garden parties and winter wedding venues.
- Observation decks and panoramic lounges.
- Botanical displays and conservatory-style exhibitions.
Related Products
Glass Geodesic Dome — Frequently Asked Questions
What span widths are available for the glass geodesic dome?
Clear spans from 3 m up to 6–30 m diameter (20–98 ft) are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the glass geodesic dome be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
