Top TFS Curve Tent as Tennis Court

Home / event marquee / Top TFS Curve Tent as Tennis Court

1. Application:

The tent can be widely used as the tennis court, outdoor sports events, swimming pool tent, big outdoor event, celebration marquee, festival marquee and so on.

inside of our curve tent

2. System Feature

–Clear span design 100% interior space availabel

–Easy to set up all kinds of ground

–Modular system, able to flexibly extend and move

–Cost effective than fixed structure

–Customized design for field requirements available

–Durable materials of aluminum frame and PVC roof cover

3. Size

There are 3 types for Curve Tent series. These include CBT(span from 15m to 25m), CEBT(span from 15m to 30m), and CTH(span from 20m to 40m). With its curved roof design, curve tent series has capability of snowload. It’s a solution for semi-permanent stucture.

For the details, please refer to the following chart(CEBT series)

Model No. Span Width Length Eave Height Ridge Height Bay Distance Main Profile
CEBT15/400 15m unlimited 3.89m 7.8m 5m 256x121x5mm
CEBT20/400 20m unlimited 3.89m 8.9m 5m 256x121x5mm
CEBT25/400 25m unlimited 3.89m 10m 5m 256x121x5mm
CEBT30/400 30m unlimited 3.89m 11.2m 5m 256x121x5mm

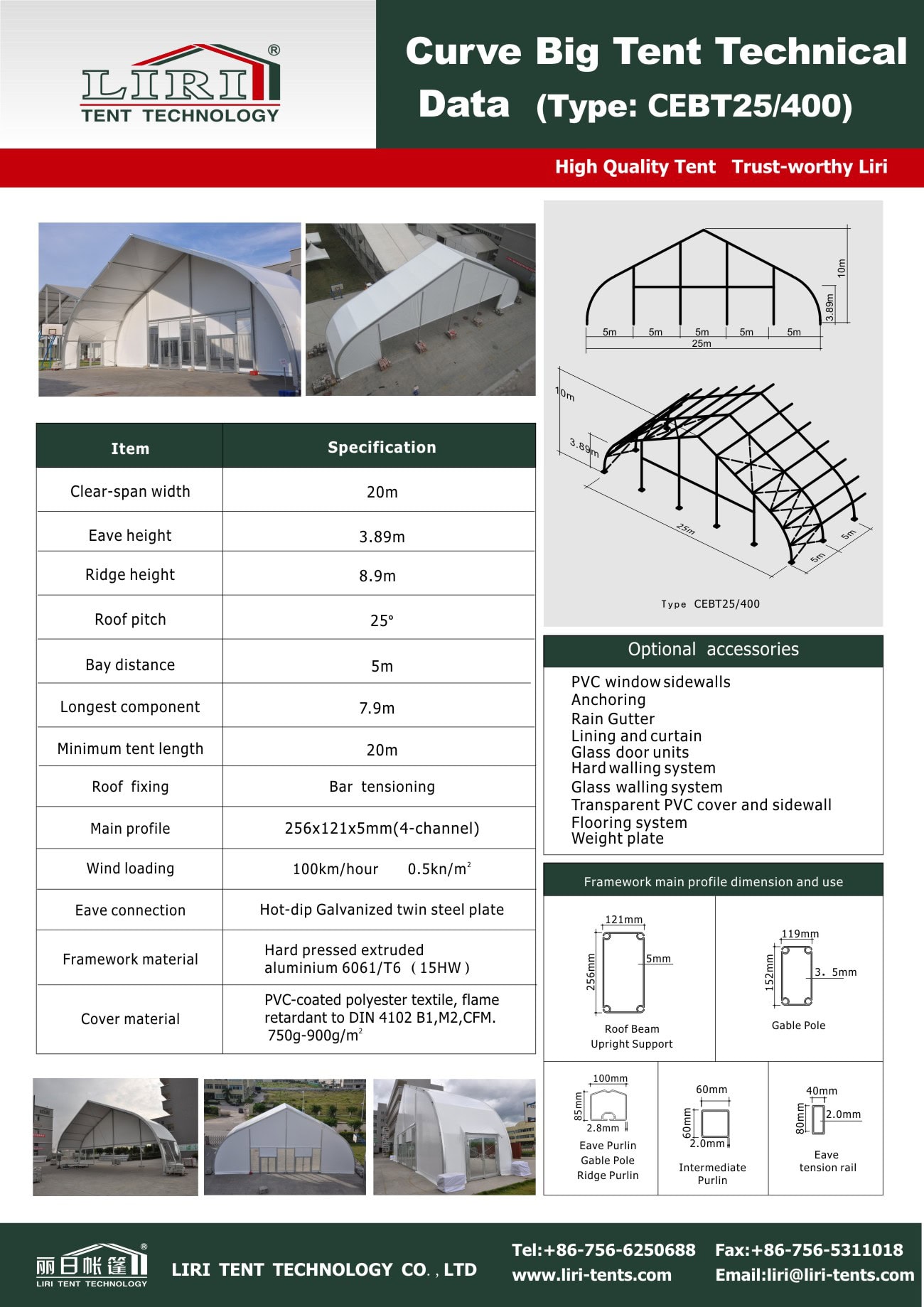

CEBT25-400

4. Materials
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

5. Installation of tents, canopies and marquee tents

We will provide you the installation manual in English and Russian. Supervisor will be available if needed.

6. Package of Liri Tents, Canopies and Marquee tents
1) Aluminum Frame–membrane film
2)Hardware–solid carton box
3) Tent cover–PVC carry bag
