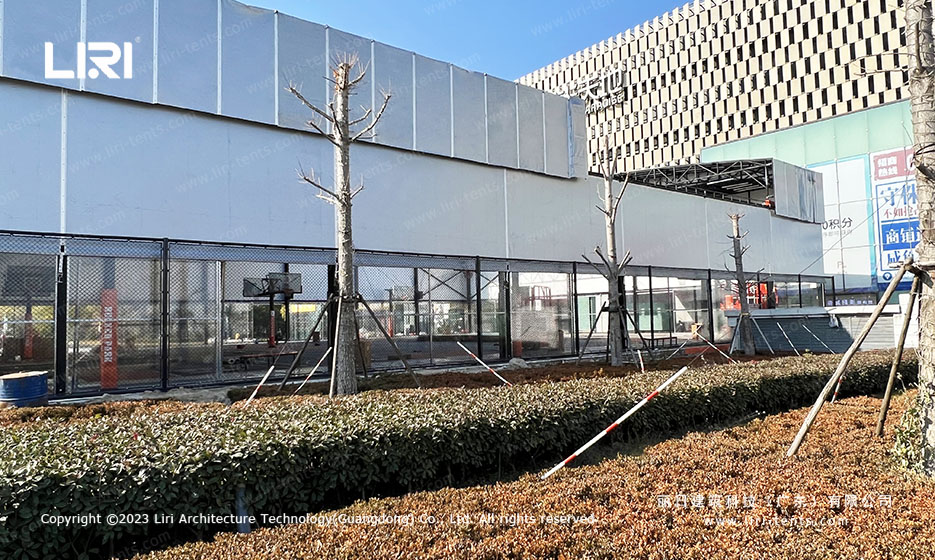

A 1,160 m² outdoor half-shell at the Locke Park basketball community could not keep its schedule through spring rain, summer heat, or winter cold. Players abandoned the court during weather windows, and a permanent concrete hall would have doubled the project budget and required a separate permit cycle. The owner asked for a permanent-feeling indoor court that could still open to the sky on the right days. A 29 m × 40 m electric retractable basketball court tent answered the call, locking in a year-round training and league environment without the cost or lead time of a steel-framed sports hall.
Why an Outdoor Court Needs a Retractable Roof
Outdoor basketball courts in the region are typically closed for 90 to 120 days a year due to rain, snow, and high humidity. Each day offline costs booking revenue and pushes amateur leagues to migrate to other facilities. Permanent steel-and-concrete sports halls solve availability but introduce new problems: high capital cost, long approval timelines, and limited ability to reconfigure the space for community events. A retractable basketball court tent sits between these two extremes. The structure ships as a kit, bolts together on the existing slab, and can be pushed open to expose the playing surface when weather permits.

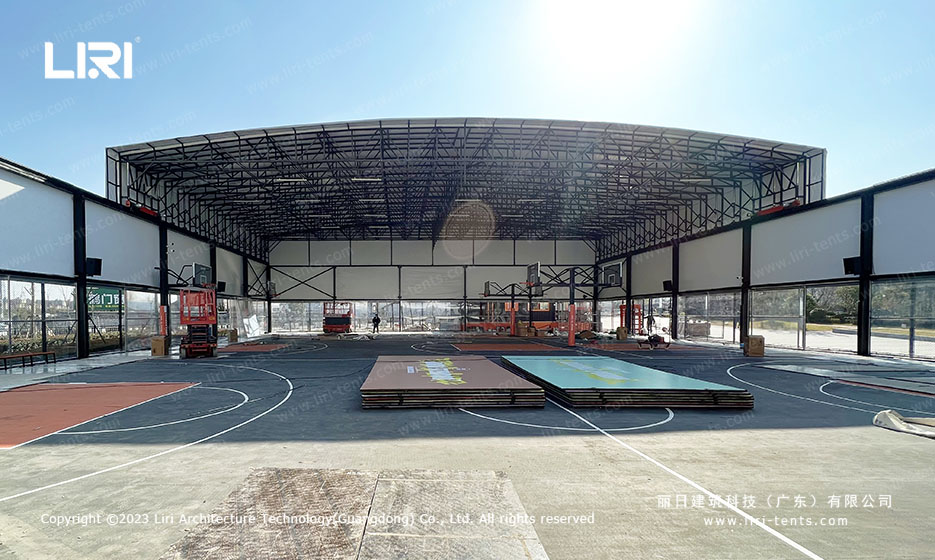

The decision to use an electric drive system rather than a manual awning was driven by daily use. Staff at the venue do not want to crank a roof by hand before every training session, and a hydraulic or chain-driven failure point would have been a recurring maintenance cost. The motorised push-pull system on this 29x40m hall completes a full open-or-close cycle in roughly 8 minutes, with safety stop sensors along the rail. The system runs on standard three-phase site power and includes a manual override for power outages. The hall is positioned over the regulation adult court with a 1.5 m safety margin on all four sides, leaving room for bleachers, scorer table, and a coach box.
Structural Design for an Electric Retractable Court

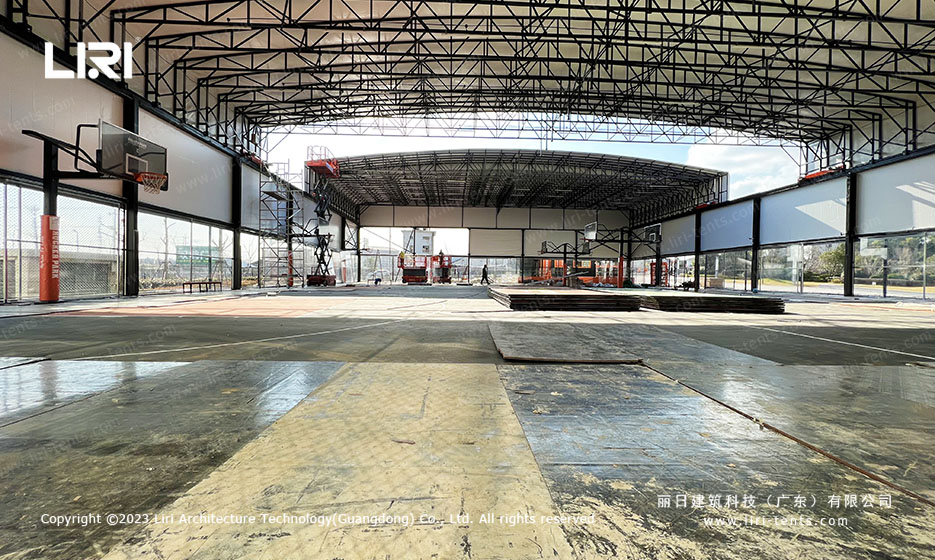

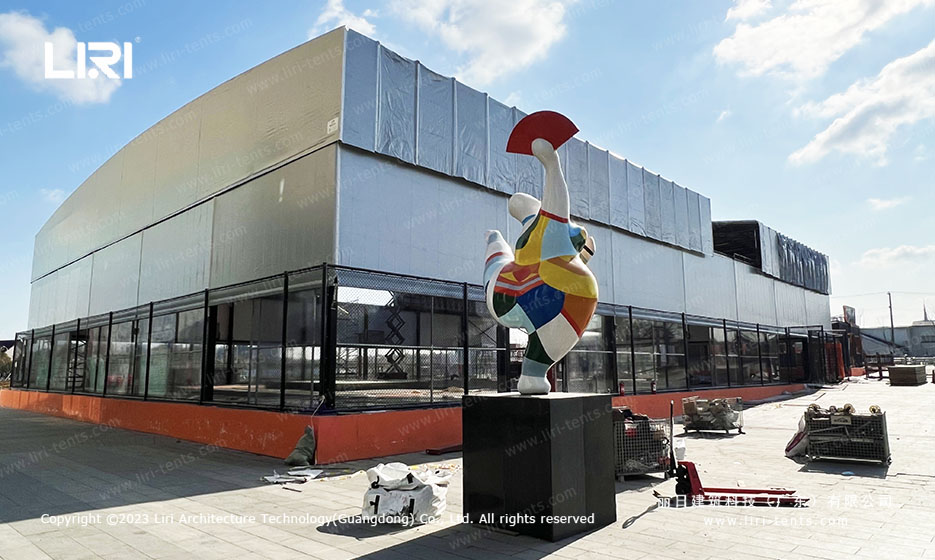

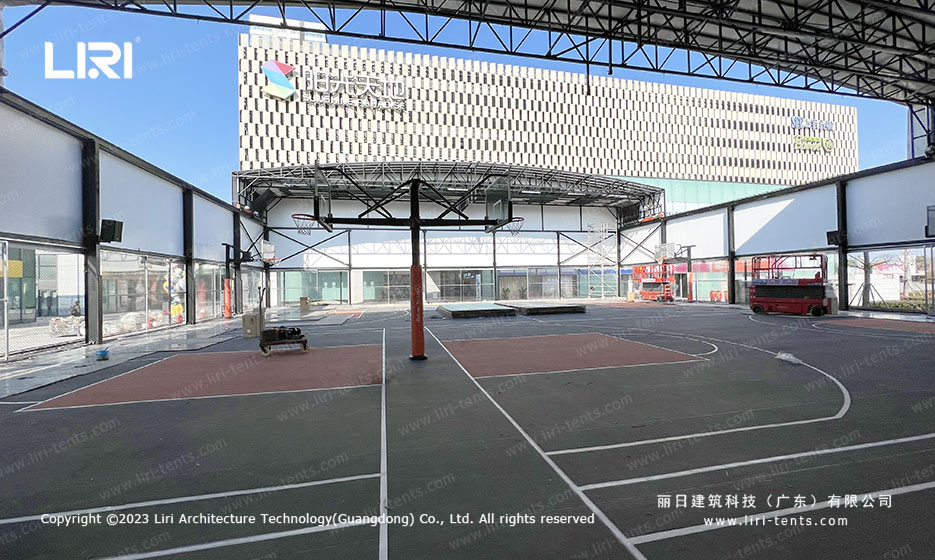

The frame uses 6061/T6 hard-pressed extruded aluminum alloy profiles, a standard spec for sport tents in the 1,000 m²-plus class. Each arch is bolted to a hot-dip galvanized steel base plate anchored to the existing concrete slab with chemical anchors. The 29 m clear span covers a regulation basketball court plus run-off without any internal columns. The bay spacing is 5 m along the 40 m length, so the frame divides into 8 modular sections that can be detached and redeployed if the venue relocates.

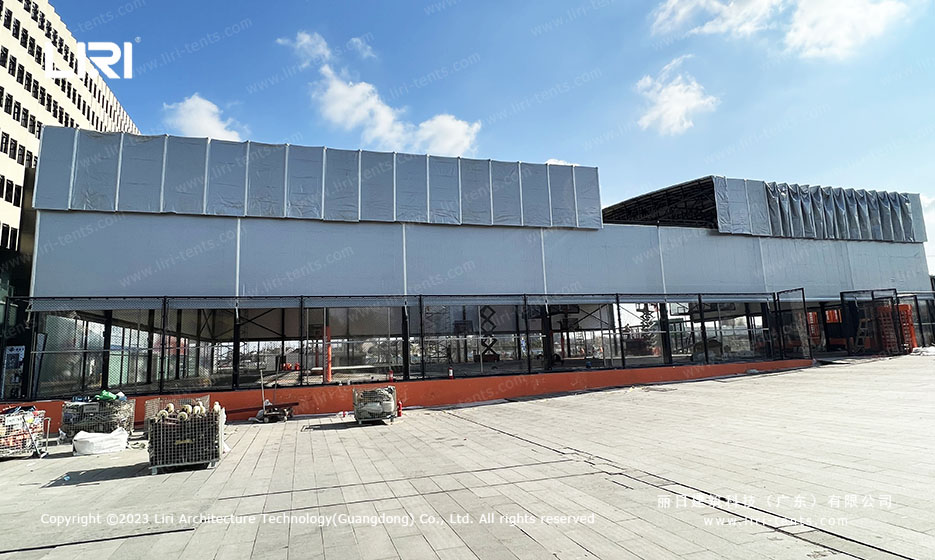

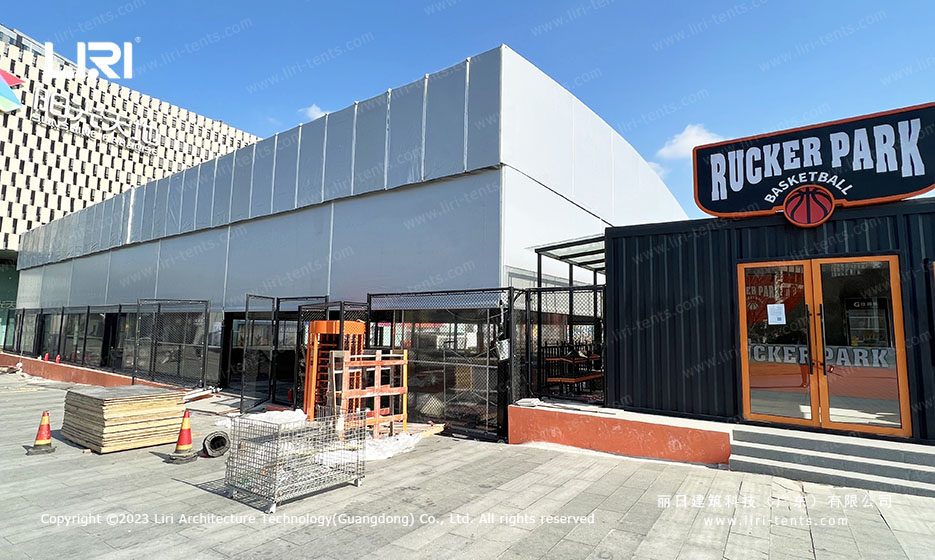

The retractable mechanism rides on heavy-duty castor rails set flush with the slab, with the same roller grade used in warehouse and industrial hall applications. Side curtains hang from the moving arch and travel with it, so the open position exposes the full court while the closed position seals the envelope. Roof fabric is 850 g/m² PVC-coated polyester with B1 fire-retardant certification, a 650 g/m² PVC sidewall, and an optional transparent PVC strip window band that lets daylight in without glare. All panels connect to the frame with keder-compatible rails for quick replacement if a panel is ever damaged.
On-Site Installation Timeline
The project reached the site as a flat-pack kit of pre-cut aluminum arches, purlins, base plates, fabric panels, and the drive system. Site prep was limited to surface cleaning, anchor drilling, and rail alignment on the existing court slab. A four-person erection crew with one supervisor and one electrician completed the structural assembly in 11 working days, followed by 2 days for fabric tensioning, electrical hookup, and drive-system commissioning. The full schedule from delivery to first training session fit inside a 16-day window.
Commissioning included wind-load testing with the frame in both open and closed positions, a full open/close cycle to verify motor torque and rail smoothness, and a watertight inspection after a controlled hose test. The completed hall carries a rated wind load of 100 km/h in the closed position and 60 km/h in any intermediate open position, which covers the local storm season. Operating temperature is rated from -30 °C to +70 °C, so winter training and summer open-day events both fit within the design envelope.
Year-Round Performance and Use Cases
Since commissioning, the venue has run a continuous schedule of training, youth league games, adult pickup sessions, and weekend tournaments across all four seasons. Booking utilisation has held above 70% during weather windows that previously forced outdoor courts offline. The transparent sidewall band cuts daytime lighting costs because natural light reaches the playing surface, while the opaque roof panel keeps glare off the backboard sightline. The hall also hosts a weekly community open day during summer, when staff retract the roof and run outdoor tournaments on the same court, then close it again for evening leagues. This dual use is the practical reason a large event tent system made more sense than a fixed hall for this site.
Technical Specifications
| Parameter | Specification |
|---|---|
| Footprint | 29 m × 40 m (1,160 m²) |
| Clear span | 29 m, no internal columns |
| Bay spacing | 5 m (8 bays along length) |
| Frame | 6061/T6 extruded aluminum alloy, anodized |
| Roof cover | 850 g/m² PVC-coated polyester, B1 fire-retardant |
| Drive system | Electric push-pull on castor rails, 8-minute full cycle |
| Wind load | 100 km/h closed / 60 km/h open |
| Installation time | 13 working days for structure and drive commissioning |
Other venues that use a comparable system include the clear span basketball court tent at Liuyang Rucker Park for indoor training and a separate push-pull basketball covered court product spec. Sites that need a non-retractable indoor option can review the gym tent product range and the clearspan tent for basketball games reference build. The indoor badminton court case study shows a similar aluminum frame applied to a smaller playing surface.
Frequently Asked Questions
How long does the electric retractable roof take to open or close?
A full open or close cycle takes about 8 minutes on the 29x40m hall, controlled by a single operator at the side console with safety stop sensors along the rail.
Can the tent be used while the roof is partially open?
Yes. The system holds any intermediate position, and the rated wind load in the partial-open state is 60 km/h, which covers most storm conditions without requiring the hall to be sealed.
What happens to the basketball court during a power outage?
The drive system has a manual override that lets two operators push the roof open or closed with a hand crank, so the court is not locked in either position if site power drops.
Does the retractable roof affect ball rebound and ceiling clearance?
The eave height is set to 7 m at the side and 9.5 m at the ridge, which sits above the official basketball ceiling clearance line and keeps rebound trajectories consistent across the court.
Can the structure be relocated to a new site after a few seasons?
The frame divides into 8 modular bays, and the drive system is mounted on detachable rail sections. A second installation typically completes within 12 working days on a prepared slab.
