Aluminum Orangery

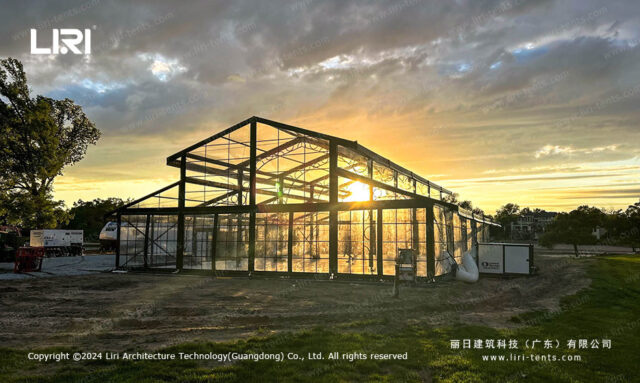

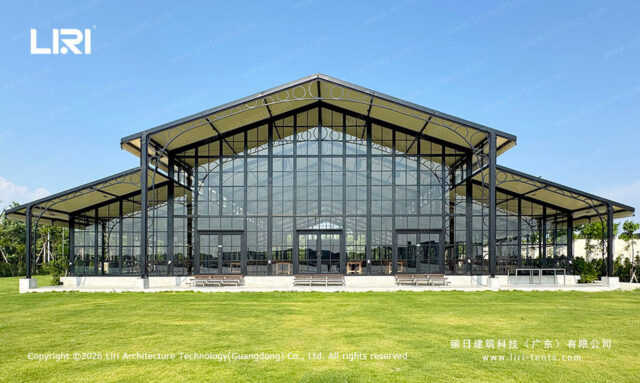

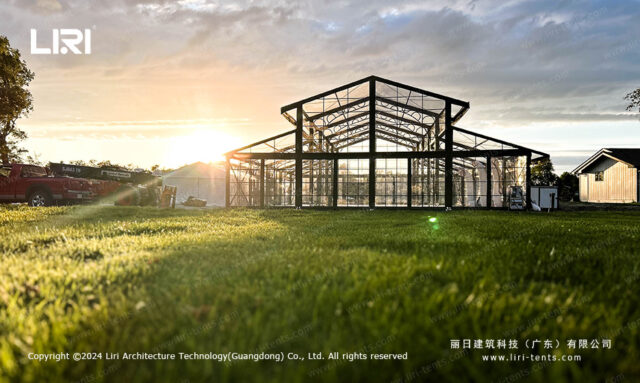

The aluminum orangery combines glazed aluminum walls with a PVC or glass roof to create a bright, permanent-looking garden room or event shell.

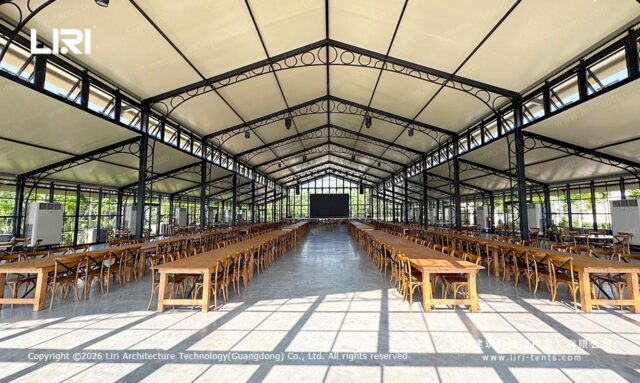

Our aluminum orangery uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Span 6–20 m with 3–5 m eaves for tall plants or banquet setups.
- Glaze walls in 4 mm tempered aluminum or swap to 650 g/m² PVC sidewalls.
- Add a glass or blackout PVC roof to control light and heat year-round.
- Join bays at 3 m pitches to extend the room along a terrace or lawn.
- Withstand 80–100 km/h wind and −30 to +70 °C with anodized frames.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 6–20 m width (20–66 ft) |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Home and estate conservatories
- Garden weddings and dining
- Nursery and plant display houses
- Café terraces and tasting rooms
Related Products
Aluminum Orangery — Frequently Asked Questions
What span widths are available for the aluminum orangery?
Clear spans from 3 m up to 6–20 m width (20–66 ft) are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the aluminum orangery be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
