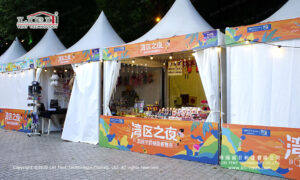

You must have seen these small pagoda tents that sell booths, ticket booths, and restrooms on commercial pedestrian streets. They come in different sizes and shapes and provide small temporary spaces for carnivals, security booths, information stations, etc. Thanks to the boom of commercial activities, small pagoda tents have good sales.
Mini pagoda tents are cubic in shape and come in sizes of 3 x 3m, 4 x 4m, 5 x 5m, 6 x 6m, 8 x 8m, 10 x 10m. The standard eave height is 2.5m and 2.6m. The perimeter can be covered with white PVC fiber cloth and can be closed or closed at your discretion. Of course, you can customize the canopy with other colors or patterns. As modular frame tents, you can design them in long interlocking rows, loops, and squares. It only takes a few hours to dismantle immediately after the event.
We provide high-quality event tents and structures for your event. For short-cycle events, we recommend trying our rental/lease service for one-half the cost of purchasing. Whether you are planning a commercial event, looking for a unique character tent for your backyard, or renting a small tent for shade, we can outline a detailed and complete event tent solution for you.
Mini Pagoda Tent Dimensions
| Span Whidth | Eave Height | Ridge Height | Main Profile |
| 3m | 2.5m | 4.3m | 65x65x2.5mm (4 – channel) |
| 4m | 2.5m | 4.8m | 65x65x2.5mm (4 – channel) |
| 5m | 2.5m | 5.43m | 65x65x2.5mm (4 – channel) |
| 6m | 2.5m | 5.92m | 65x65x2.5mm (4 – channel) |
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS

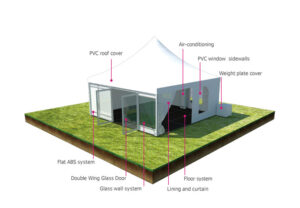

- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What is the clear-span width of the 10m × 10m pagoda tent?
The 10m × 10m pagoda tent is a full clear-span structure — no interior poles or beams, so 100% of the 10m × 10m footprint is usable. Clear spans are available from 3m up to 60m and can be extended in modular bays to any length.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this pagoda tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
