Different Combinations Of Pagoda Tents With Aluminum Doors And Windows

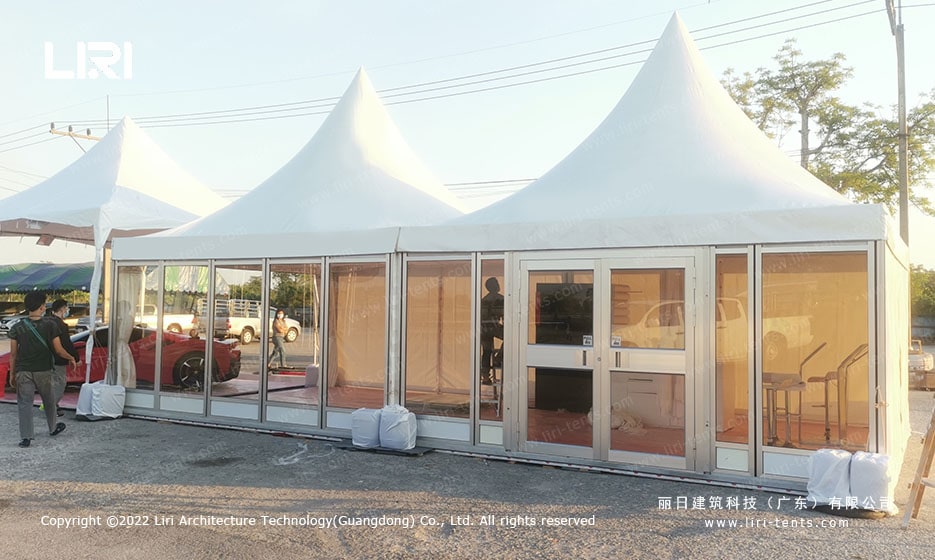

We offer different spans and types of clear span event tents, they can meet the requirements of different venues and number of people. This 5x10m pagoda tents use aluminum doors and glass walls to meet the requirements of merchants for temporary tent procurement. It consists of two pagoda tents for meeting rooms. A white tarp covers the entire body of the tent, and the floor is covered with a faux wood-style floor.
Pagoda Tents For Any Type Of Marketing Event
No matter if you are preparing a marketing booth or planning a venue for a city carnival, the flexible Pagoda Tent would be a good choice. It is versatile in terms of size, shape, and combination of formats. It is fully adaptable to the terrain and event planning requirements.

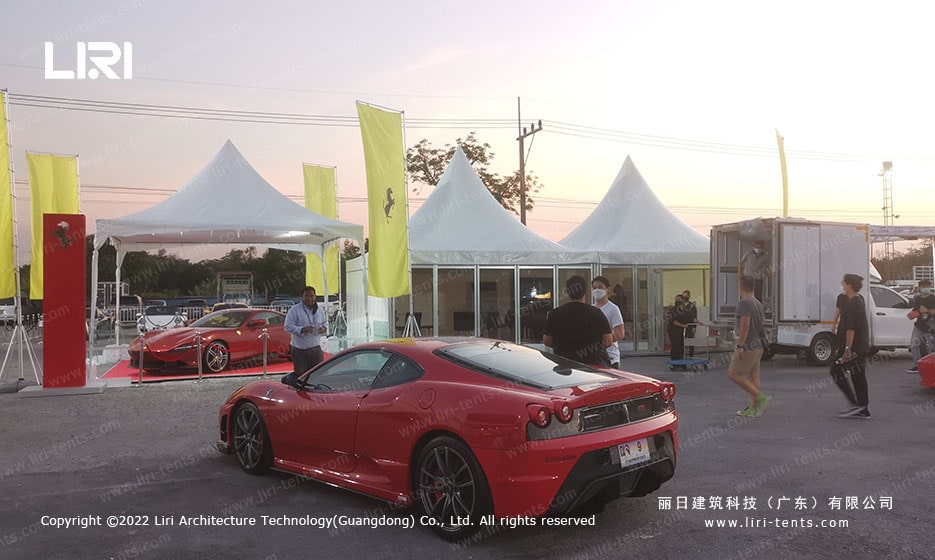

If you are planning an Auto Exhibition Promotion to showcase your products or services, please contact us.
Auto Exhibition Pagoda Tent Series Specifications
| Span Whidth | Eave Height | Ridge Height | Main Profile |
| 3m | 2.5m | 4.3m | 65x65x2.5mm (4 – channel) |
| 4m | 2.5m | 4.8m | 65x65x2.5mm (4 – channel) |
| 5m | 2.5m | 5.43m | 65x65x2.5mm (4 – channel) |
| 6m | 2.5m | 5.92m | 65x65x2.5mm (4 – channel) |
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this pagoda tent?
This pagoda tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this pagoda tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.

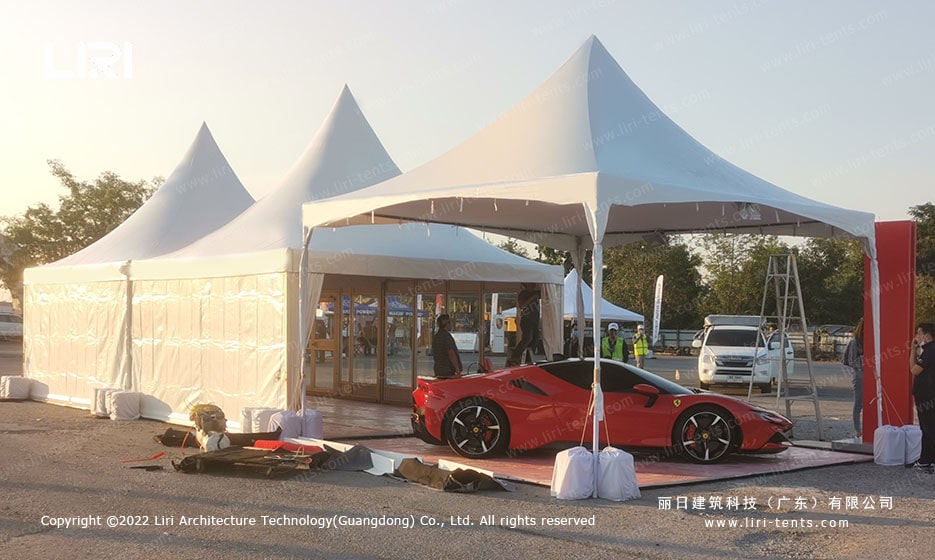

The closest my assets have come to a Ferrari is the Pagoda tent.

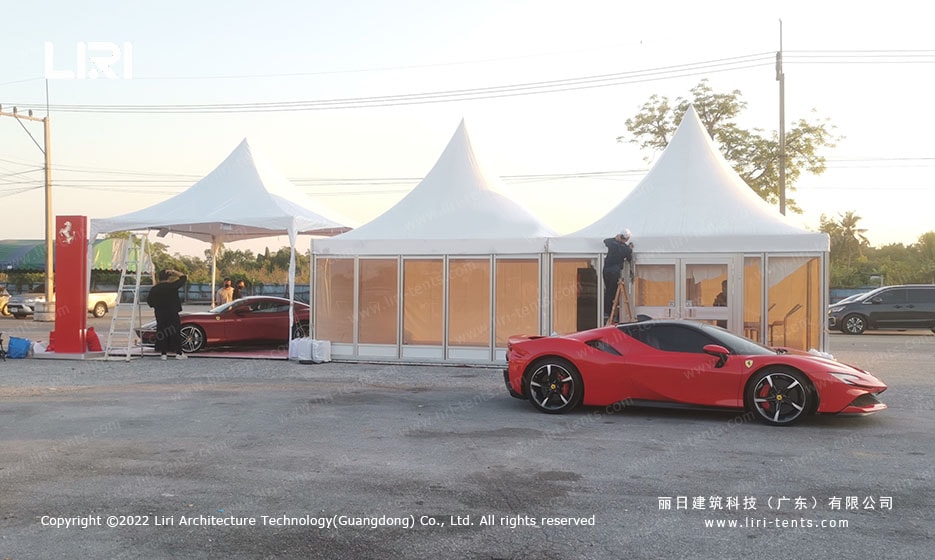

Such tipis can be seen at many trade shows, it turns out to be your product.
