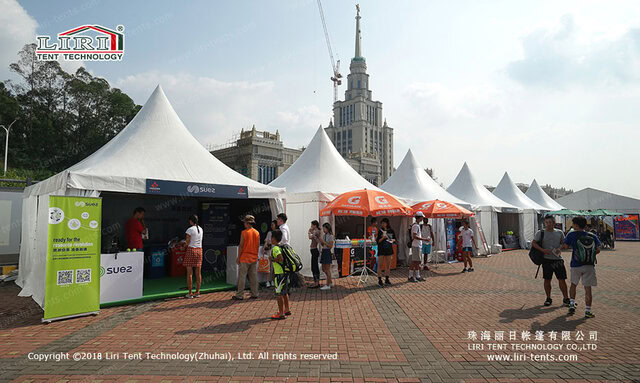

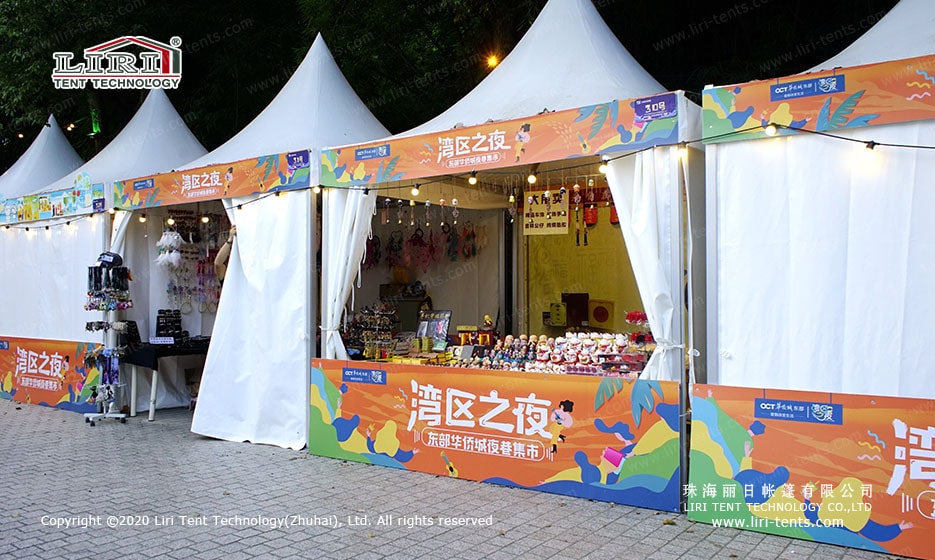

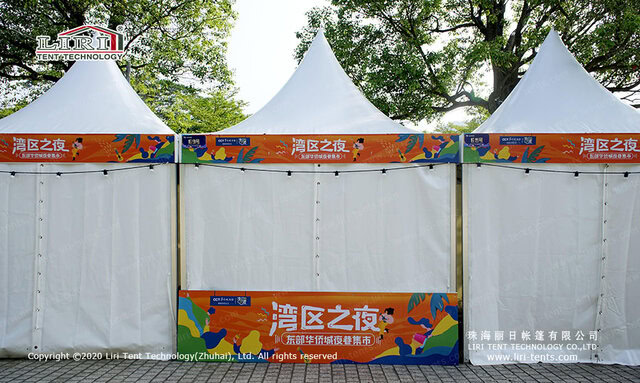

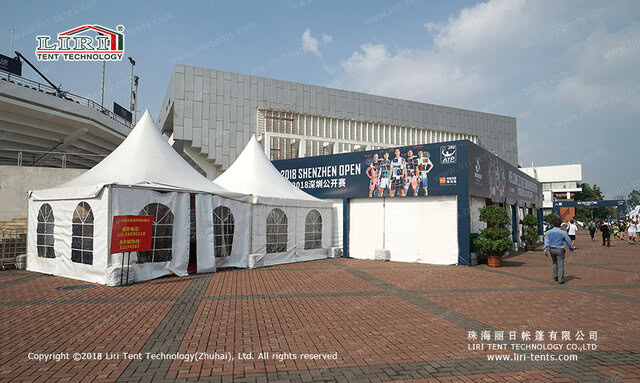

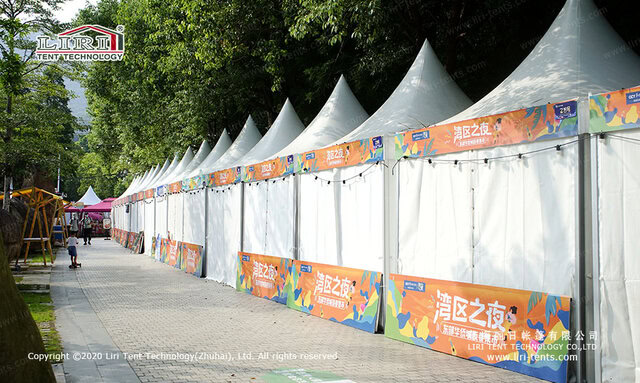

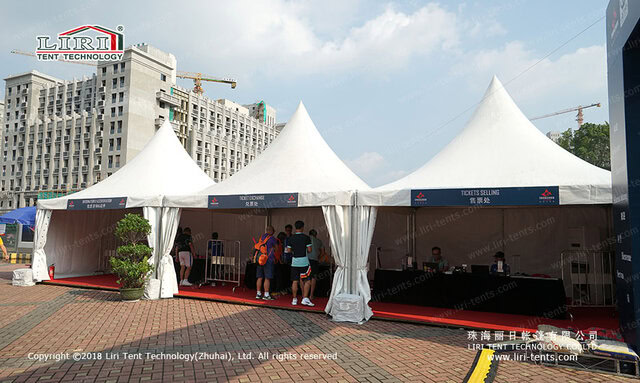

Mini Pagoda tent is one of the tent types favored by customers, and customers often appreciate it. It has a European-style high peak shape, and more importantly, the overall frame design is light and simple, making the tent more flexible and convenient for storage and transportation. Mini Pagoda tents are widely used in various types of events, food parties, commercial streets, exhibitions, etc., providing them with a perfect temporary space solution.
Below the mini pagoda tent is a cube. It can be assembled into a variety of shapes according to actual needs. For example, rectangular shape, square shape, cross shape, etc. Combination for you pagoda tent internal space is very large.
In addition, adding PVC rain gutters between the two tents can effectively prevent water accumulation, drifting rain, effectively keep the tent interior clear
Mini Pagoda tents are available in a variety of sizes which you could choose. The conventional specifications are 2.5m×2.5m, 3m×3m, 4m×4m, 5m×5m. We can also provide professional pagoda tent size customization services to meet the diverse needs of customers as much as possible.
You may have noticed. Various commercial patterns or logos can be painted on the eaves and the blank spaces of the roof. It attracts people’s attention more effectively and invariably increases the business value.
It is easier to retain our customers in a comfortable environment. Therefore, we offer more accessories to further improve the interior space. For example, clear PVC window sidewalls, floor anchors, counterweight panels, roof liners, etc. In terms of tent accessories, there are also curtains, glass walls, ABS walls, sandwich walls, glass doors, sliding doors, rolling doors, etc.
Let customers experience a different tent from inside to outside.
Mini Pagoda Tent Specification
| Span Whidth | Eave Height | Ridge Height | Main Profile |
| 2m | 3.65m | 2.3m | 55x55x2mm (4 – channel) |
| 2.5m | 3.93m | 2.3m | 55x55x2mm (4 – channel) |
| 3m | 4.12m | 2.3m | 55x55x2mm (4 – channel) |
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this pagoda tent?
This pagoda tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this pagoda tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
