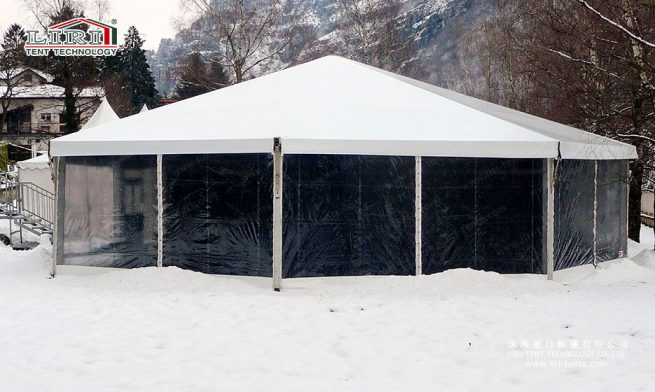

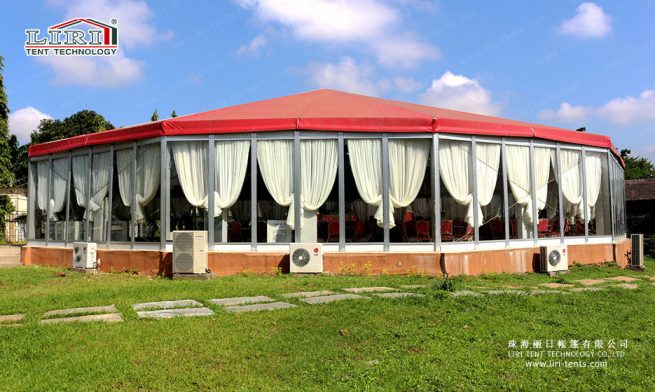

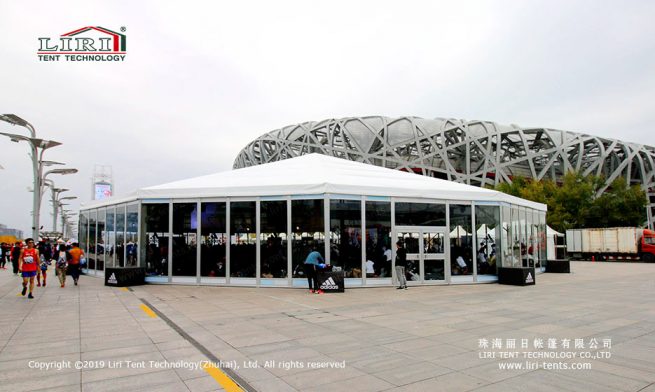

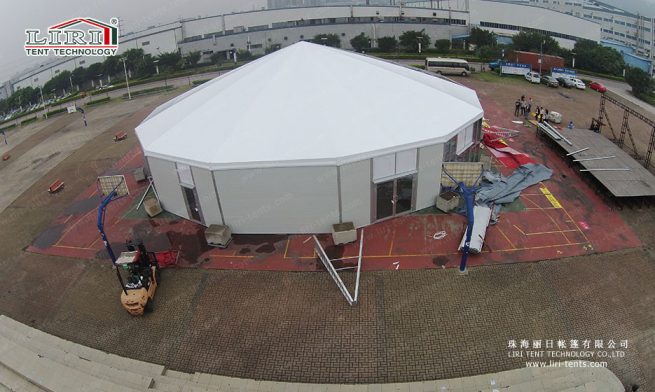

Dodecagonal Tent
The dodecagonal tent wraps a twelve-sided polygon frame around a column-free floor, giving large gatherings a striking shape that reads as architecture rather than a temporary marquee.
Our dodecagonal tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Plan 15–40 m twelve-sided footprints with no interior poles across the whole floor.
- Choose a diamond or high-peak roof crown to set the silhouette and interior height.
- Join 3–5 m bays so the polygon stretches or contracts to your guest count.
- Clad walls in PVC, glass, or ABS panels and add clear windows for a brighter hall.
- Carry 80–100 km/h wind and 75 kg/m² snow on a 6061/T6 aluminum frame.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 15–40 m diameter footprint (49–131 ft), 12-sided polygon |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications

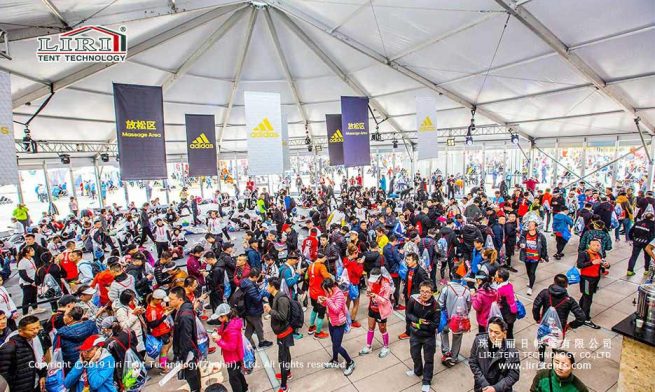

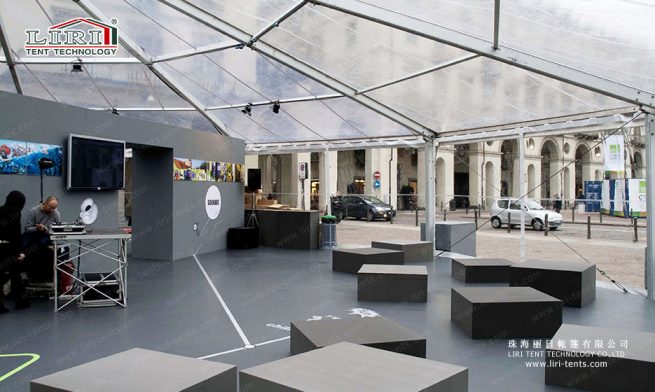

- Exhibitions and trade-show pavilions
- Sporting events and award ceremonies
- Corporate launches and gala dinners
- Festival hubs and civic gatherings
Related Products
Dodecagonal Tent — Frequently Asked Questions
What span widths are available for the dodecagonal tent?
Clear spans from 3 m up to 15–40 m diameter footprint (49–131 ft), 12-sided polygon are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the dodecagonal tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
