Why a 25x60m Clear Span Tent is the Ideal Choice for Your Expo
When planning a large-scale event like an investment forum or an industry expo, the venue is everything. The space needs to be large, flexible, and professional. This is where a 25x60m clear span tent shines. These large event tents for exhibition are widely used for industry meetings and outdoor exhibitions, providing a professional and temporary structural space that can be set up almost anywhere.
The Unobstructed Advantage of Clear Span Design
What makes a clear span tent the preferred choice for event planners? Its key feature is the absence of any intermediate columns or poles inside. This “clear span” design creates an integrated, three-dimensional space that offers a number of benefits:
- Maximum Flexibility: With no columns to obstruct the view or layout, you have complete freedom to arrange booths, stages, and seating as needed.
- Enhanced Visibility: An open interior ensures that every attendee has a clear line of sight, which is crucial for keynote speakers and presentations.
- Spacious & Inviting: The open, column-free interior makes the space feel more spacious and welcoming, which is perfect for encouraging networking and movement.
This unobstructed design is why event planners find these structures to be an ideal choice for both industry forums and corporate booths.
Built for Quality and Scale

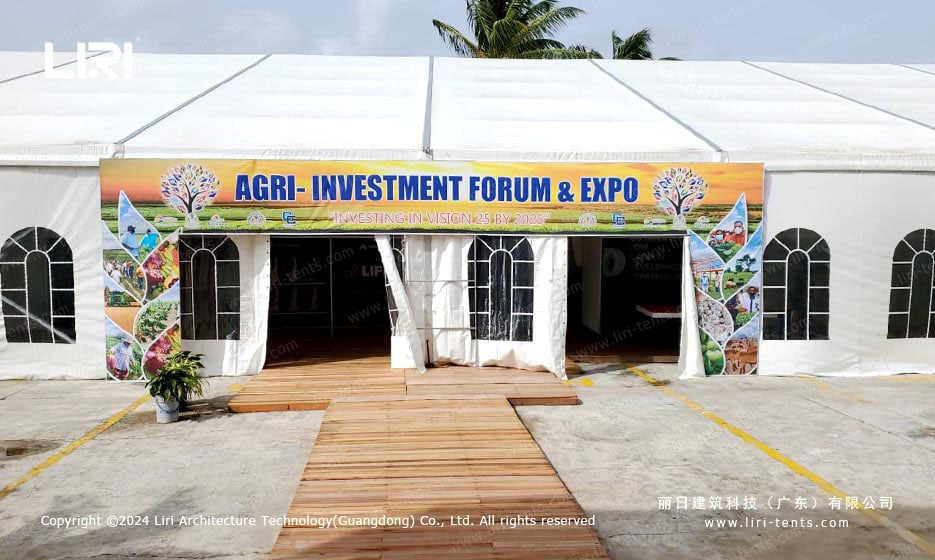

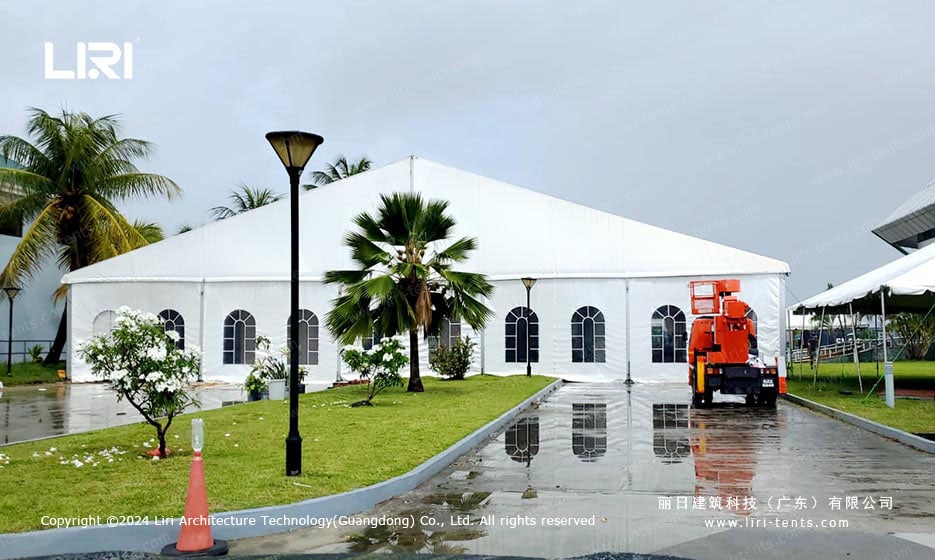

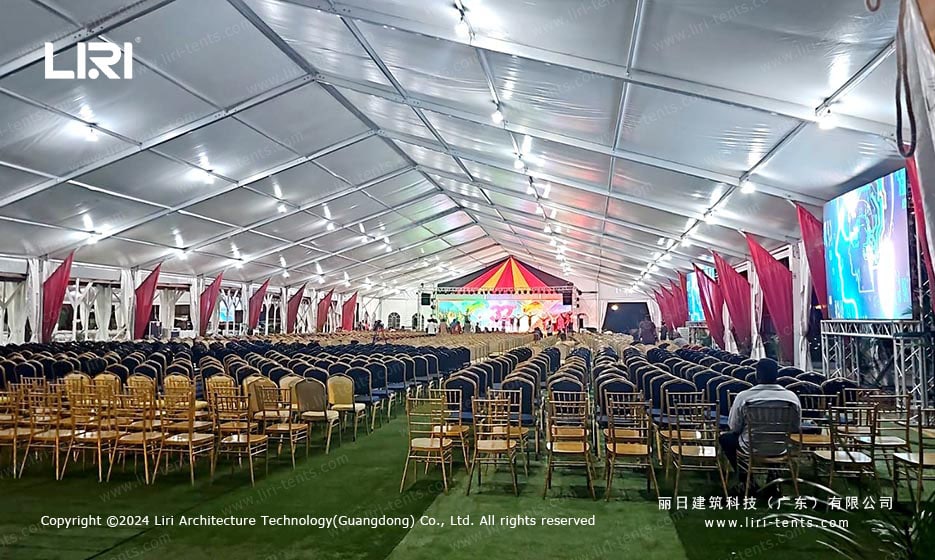

Choosing the right quality clear span tents is a critical investment. For an event of this magnitude, the materials and construction must be reliable. The pictured 25x60m clear span tent provides a massive 1500 square meters of space, capable of accommodating around 1000 people for an industry exhibition.
These structures are built to meet the needs of different scenarios. You can also customize the appearance to match your brand. For example, some tents offer a wide variety of roof shapes (over 100 options) and fabric colors (50 PVC colors). This level of customization ensures your venue looks as professional as your event.
Navigating the Cost of a Quality Clear Span Tent
When considering the clear span tent price, it’s important to look beyond just the initial figure. The overall value is determined by factors like the size, materials, and customization options. For a large-scale project like a 25x60m clear span tent, the initial investment reflects its quality and scalability. Opting for a cheaper, lower-quality alternative could lead to significant long-term costs in maintenance or potential safety issues.
Instead of focusing on a single price point, consider all the variables. What is the tent’s intended use? What specific features do you need? By breaking down the factors that contribute to the total investment, you can make a more informed decision that aligns with your budget and project goals.
A 25x60m clear span event tent is more than just a large cover; it’s a professional and highly flexible solution for major events. Its unobstructed interior, high-quality construction, and ability to be customized make it the premier choice for large-scale forums and exhibitions.
Ready to find the perfect solution for your next big event? Tell us about your project needs, and let us provide a custom proposal tailored to your vision.
Clear Span Tent Series Specifications
| Span Whidth | Eave Height | Ridge Height | Bay Distance | Main Profile |
| 10m | 3.88m | 5.53m | 5m | 204x120x4mm (4 – channel) |
| 12m | 3.88m | 5.83m | 5m | 204x120x4mm (4 – channel) |
| 15m | 3.88m | 6.3m | 5m | 204x120x4mm (4 – channel) |
| 16m | 4m | 6.5m | 5m | 204x120x4mm (4 – channel) |
| 18m | 3.88m | 6.9m | 5m | 204x120x4mm (4 – channel) |
| 20m | 3.88m | 7.1m | 5m | 204x120x4mm (4 – channel) |
| 20m | 6m | 9.22m | 5m | 204x120x4mm (4 – channel) |
| 21m | 3.88m | 7.25m | 5m | 204x120x4mm (4 – channel) |
| 25m | 3.88m | 7.88m | 5m | 204x120x4mm (4 – channel) |
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What is the clear-span width of the 25m × 60m clear-span tent?
The 25m × 60m clear-span tent is a full clear-span structure — no interior poles or beams, so 100% of the 25m × 60m footprint is usable. Clear spans are available from 3m up to 60m and can be extended in modular bays to any length.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this clear-span tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
Send the site details, required size and operating season for a tailored specification.
