Black Tent

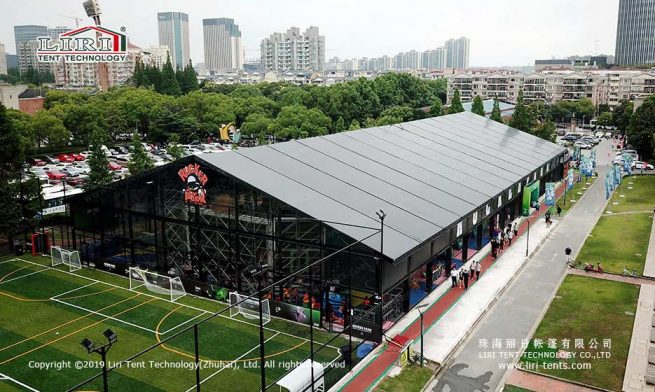

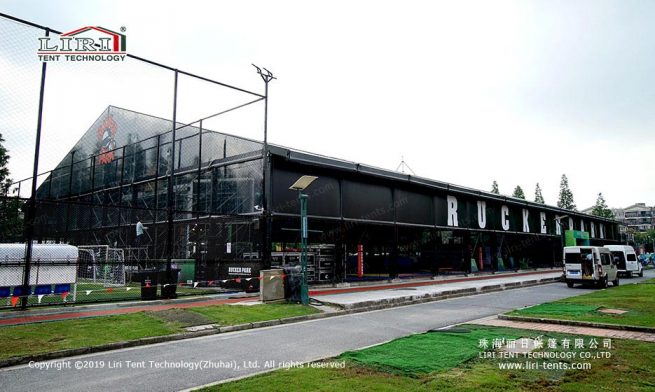

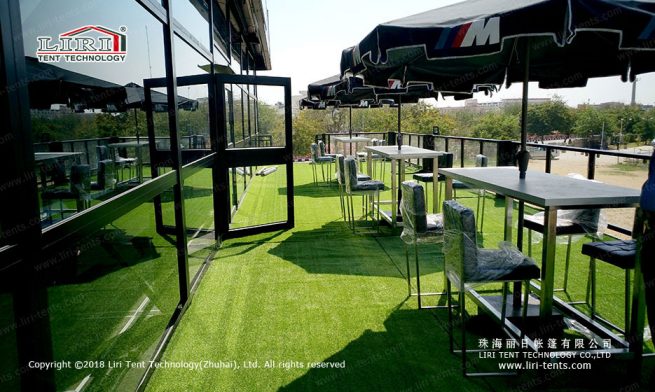

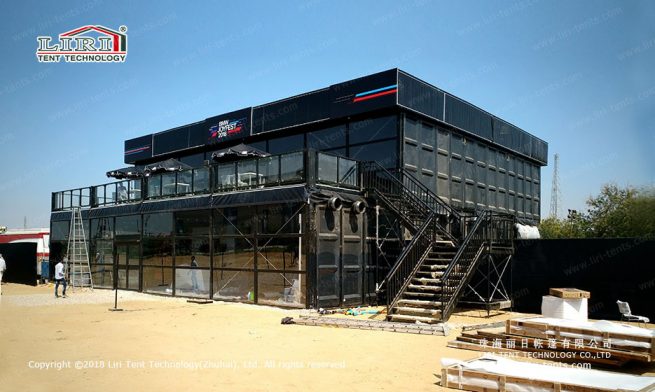

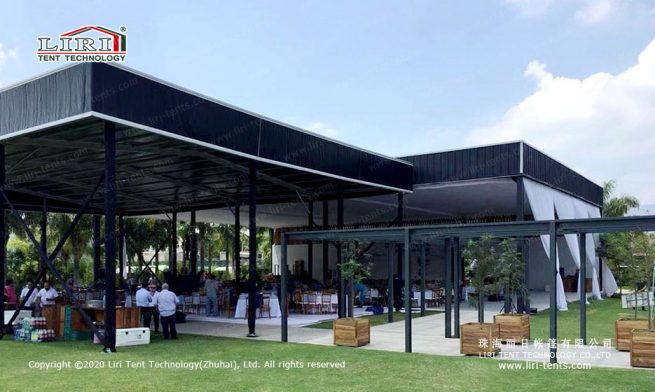

The black tent wraps a clear-span aluminum frame in opaque black PVC to create a dramatic, light-controlled space for nightlife, cinema, and premium events.
Our black tent uses a hard-pressed aluminum clear-span frame with no interior poles, so the full floor area stays open for storage, events, or production. Each unit is built to order with PVC covers, galvanized connectors, and the load ratings shown in the specification table below.
Product Overview
- Cover 10–40 m clear spans in full blackout 850 g/m² PVC for total light control.
- Run 80–100 km/h wind loads on a 6061/T6 anodized aluminum frame.
- Line the interior with acoustic or LED-ready liners for club-grade atmosphere.
- Set eave heights of 2.5–4 m and link bays at 3–5 m for big-room layouts.
- Meet DIN4102 B1 / NFPA 701 fire codes for public gatherings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Span width | 10–40 m width (33–131 ft) |
| Frame | Hard-pressed extruded aluminum alloy 6061/T6, anodized |
| Roof cover | 850 g/m² (25 oz/yd²) PVC-coated polyester, UV-resistant, blackout optional |
| Sidewall | 650 g/m² (19 oz/yd²) PVC-coated polyester |
| Connectors | Hot-dip galvanized steel, anti-corrosion |
| Wind load | 80–100 km/h (50–62 mph), 0.4–0.5 kN/m² |
| Snow load | 75 kg/m² (15 psf) |
| Temperature | -30 °C to +70 °C |
| Fire resistance | DIN4102 B1 / NFPA 701 / BS 7837 flame retardant |
| Certifications | CE, SGS, ISO 9001, TÜV |
| MOQ | 1 set (mixed containers accepted) |
| Lead time | 15–25 working days |
| Trade terms | FOB Shenzhen / Guangzhou, China |
Typical Applications
- Nightclubs and after-parties
- Private cinema and screening rooms
- Premium product launches
- Fashion shows and immersive events
Related Products
Black Tent — Frequently Asked Questions
What span widths are available for the black tent?
Clear spans from 3 m up to 10–40 m width (33–131 ft) are available, with bay spacing of 3–5 m and eave heights from 2.5 m to 4 m to fit most sites.
How long is the lead time and what are the trade terms?
Standard lead time is 15–25 working days, 1 set (mixed containers accepted), FOB Shenzhen / Guangzhou, China. Mixed containers are accepted.
Can the black tent be customized with glass walls or HVAC?
Yes — options include glass walls, transparent roofs, lining, flooring, lighting truss, and climate control to match the site and intended use.
