The Double Decker Tent originally came from Germany, but now the chief engineer and owner Mr. Liang has designed and produced it in China. The product has a good reputation in both China and around the world. You can use it for catering, exhibitions or other activities as your need.
The Double Decker Tent is defined as a structure that is made out of two floors but the actual Double Decker is divided into two types:
- DDS A shape model clear span which can be from 10m to 30m. The main profile is 300x125x5/8mm.
- ADDS dome shape model clear span which can be from 15m to 30m. The main profile is 300x125x5/8mm.
Both of them can give you more space and it looks more elegant. You deserve this wonderful design.
The double-decker tent has a different span width of 10-25m. And we can enlarge the span width based on your requirement. And the length can be extended by a 5m bay section without a limit.

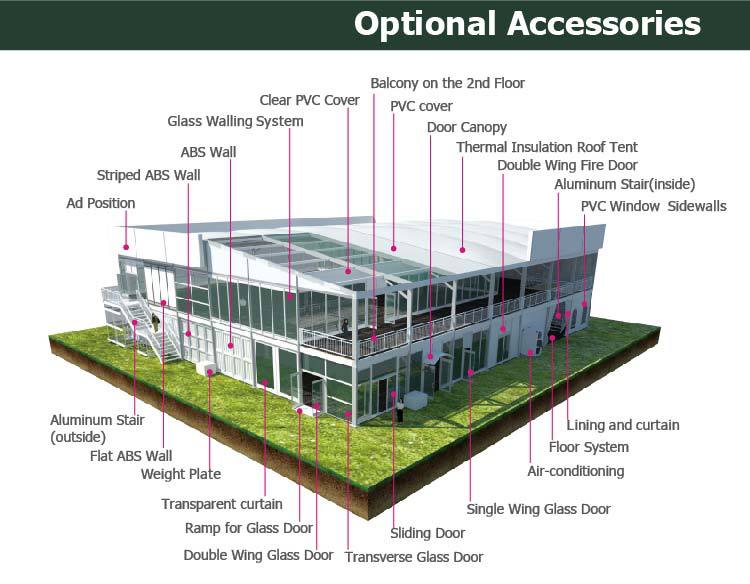

These options include a clear roof or wall, stakes, weight plates, silk lining, glass/ABS hard wall and door system, sandwich panel wall, steel panel wall, sliding door, rolling shutter, flooring and guttering system, round ends, front view balcony, stairs, and one bay out entrance.

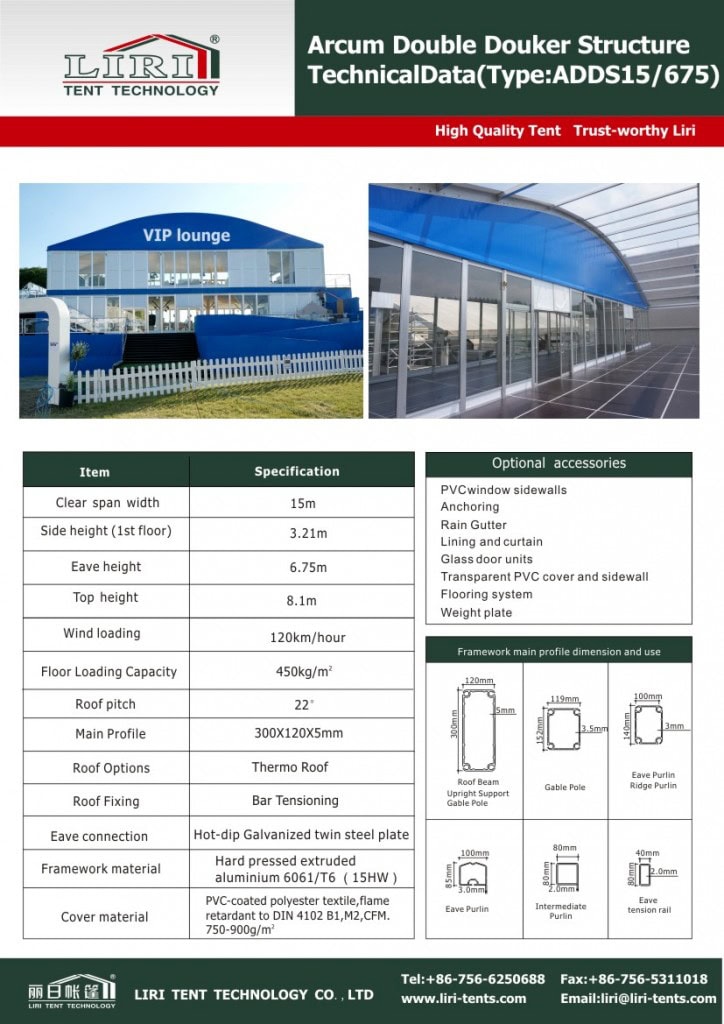

Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this double-decker two-storey tent?
This double-decker two-storey tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
How much load can the double-decker second floor carry?
The two-storey structure is engineered on a 6061-T6 aluminum frame with a rated floor load for crowds, furniture and displays. Staircases, railings and flooring are all included and certified.
What are the MOQ, lead time and shipping for this double-decker two-storey tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
