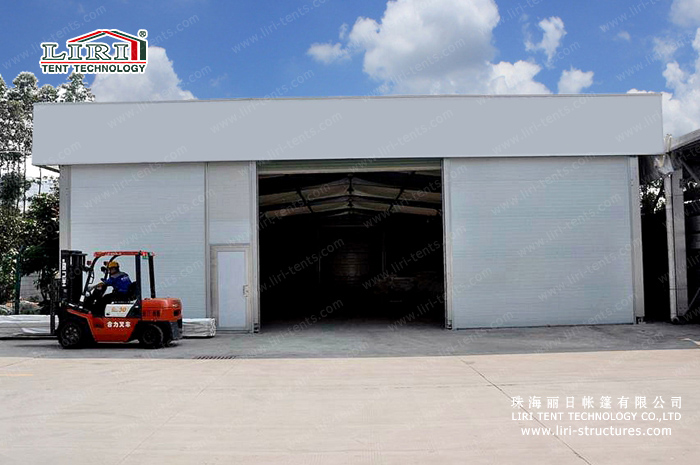

The clear span of the Thermal Insulation Roof Cube Tent series is 10m 15m 20m 25m 30m, and the main profile size is 256x121x5mm.
The characteristics of our thermal insulation roof cube tent structure are as below:
1.The roof of the tent is made of thermal insulated PVC fabric, with heat insulation, preservation, and thermostatic effect.
2.The roof is flat with a 7° roof pitch. It is worth mentioning that there is a tippet on the eave of the tent, after improvement and innovation, we increase the space for the banner advertising, providing our customers with the platform to print Ads on the tents.
The Thermal Insulation Roof Cube Tent series is very stable and durable, and the wind loading can be 100km/hour, o.5kn/㎡, easy to assemble and disassemble, and easy to store. It’s widely used for all kinds of outdoor temporary events, and it is a good optional solution for both temporary and permanent buildings.
There are many accessories for the Thermo Roof Cube Tent, such as sidewalls with clear PVC church windows, ground anchor, lining and curtain, glass wall system, ABS hard wall system,
sandwich wall system, steel sheet wall system, glass doors, sliding doors, electromotive rolling door system, transparent roof cover and sidewalls, and flooring system, etc.
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this event tent?
This event tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this event tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
Send the site details, required size and operating season for a tailored specification.
