Warehouse tent from China manufacturer

1. Application:

The tent can be widely used as the warehouse tent, temporary workshop, event marquee, and so on.

2. Specification for the marquee tents (WS series):

Main frame profile size for BT series: 256*121*5mm
Wind load: 100km/h
Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length.

3. Optional Accessories:
1)Sidewall-White PVC wall, transparent PVC wall, colorful PVC sidall, ABS wall, Glass wall, Sandwich wall, Steel wall.
2)Windows-Clear PVC window, breathable glass window.
3)Floor-Normal cassett floor system, VIP cassett floor system.
4)Door-Double-swings glass door, Double-swings fire glass door, Double-swings aluminun door, Automatic rooling door, one man door.
5)Decoration curtain and linning-Flat or pleating.
6)Furniture-Round tables, chairs, stages and ect…
7)Electric equipment-Air conditioner, lighting system.
8)Others-printing Ads, artificial grass, ramp, transport rack etc.

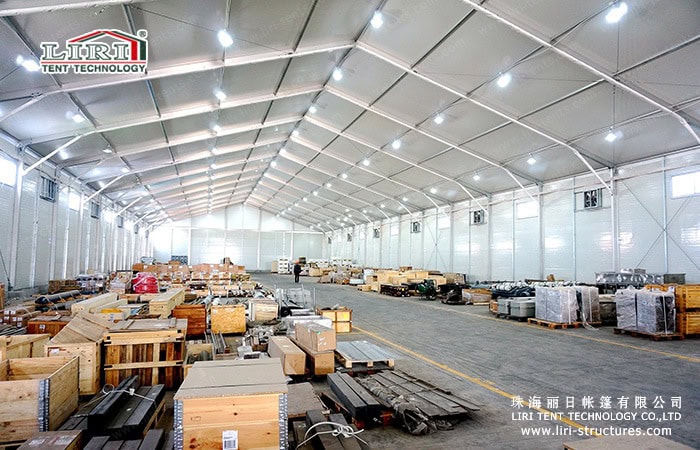

1425603558781315299

4. Materials:
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

5. Color available: White, red, yellow, blue, green, black, grey, transparent etc

6. Products certificate:
Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2
Structure safety: Certificates by the registered engineers in the U. S. A & Australia.

If the customers need above certificates copy, pls feel free to contact with Liri Tent Technology. We will not show them on the website to avoid copys.

7. Characters & Features
1, 100% relocatable, and unobstructed free span space;
2, very easy and very fast to install and dismantle;

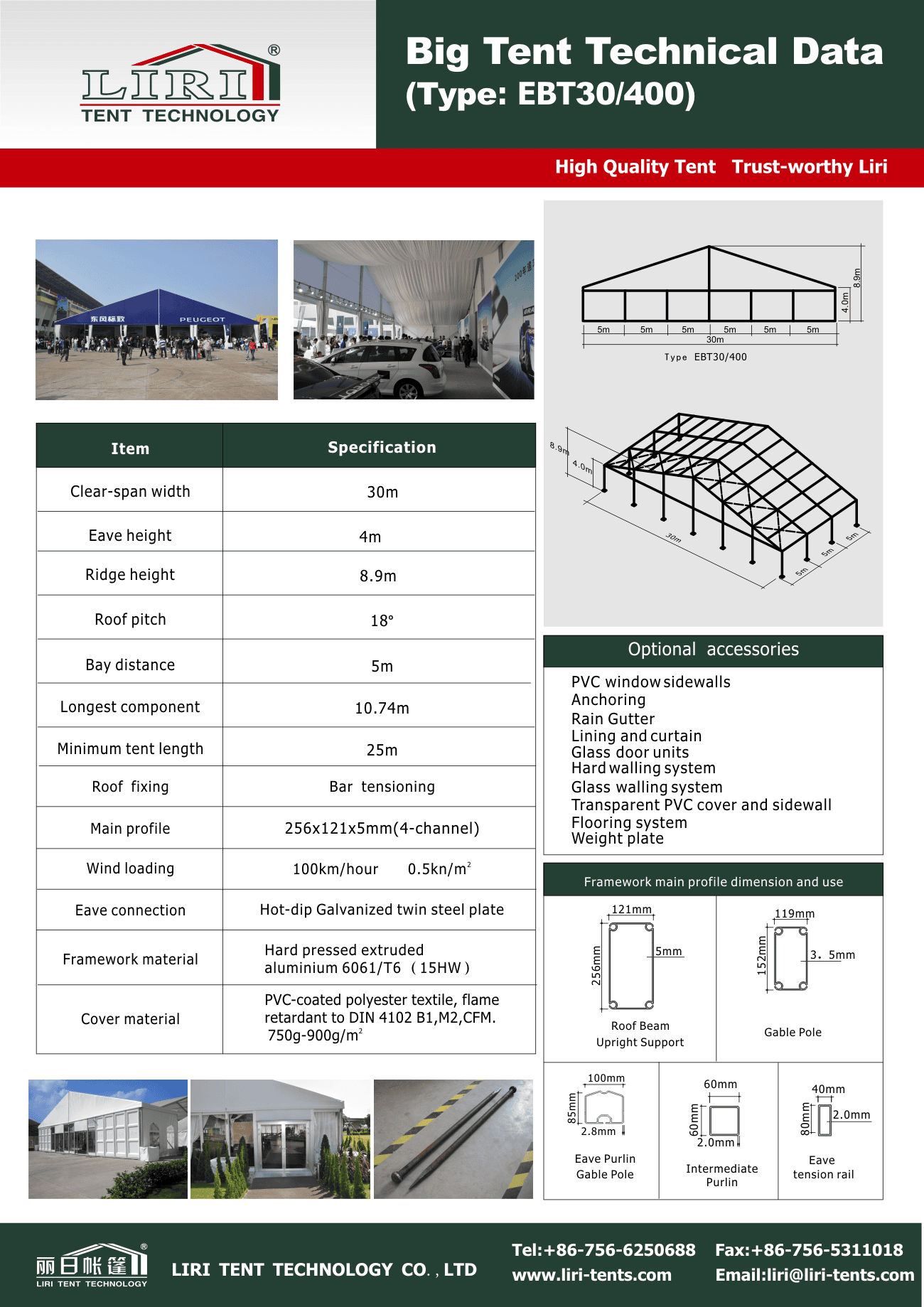

EBT30-400

8. Application
Widely used for private & corporate party, celebration, outdoor exhibition & Expo, trade show, commercial activity.

9. Installation of tents, canopies and marquee tents:
We will provide you the installation manual in English and Russian. Supervisor will be available if needed.

10. Package of Liri Tents, Canopies and Marquee tents
1) Aluminum Frame–membrane film
2)Hardware–solid carton box
3) Tent cover–PVC carry bag.

Warehouse Tent
frame main profile size:256*121*5mm
with Roof &Triangle cover,PVC Side walls
Size(width*length) 20×30m
side height 3m
ridge height 5.64m
Capacity 400-600 persons
frame material Hard pressed extruded aluminum alloy 6061/T6 (13HW)
Roof Pitch 20°
Max allowed wind load speed 100km/hour
PVC sidewall water proof, fire resistance, UV resistance roof 850k/sqm sidewall 650ksqm
Eave connection Hot-dip galvanized steel insert

For more information, please contact me

Company Name: Zhuhai Liri Tent Technology Co., Ltd.
Sales: Rainbow Liu
Tel: +86-756-6320923
Mobile: +86-135 7066 9565
