High Quality 30m TFS Tent as the Warehouse

Home / Tips / High Quality 30m TFS Tent as the Warehouse

1: Application

The special TFS Tent Series could be widely used as the warehouse tent, storage tent, logistic tent and other industrial function.

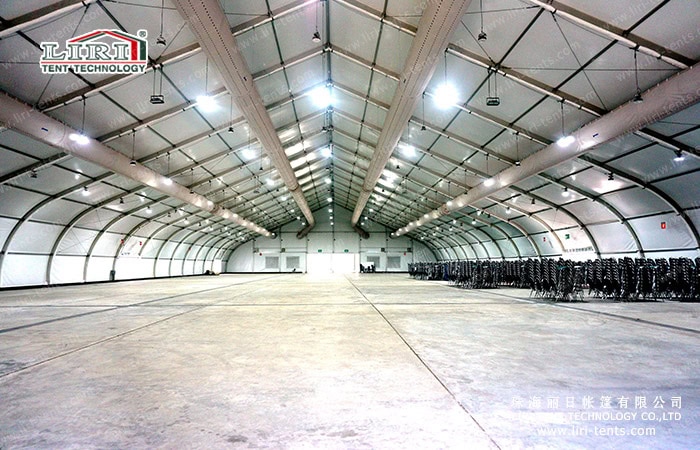

40x90m curve tent in Thailand (4)

2. Size

There are 3 types for Curve Tent series. These include CBT(span from 15m to 25m), CEBT(span from 15m to 30m), and CTH(span from 20m to 40m). With its curved roof design, curve tent series has capability of snowload. It’s a solution for semi-permanent stucture.

For the detials of the CTH series, please refer to the following chart,

Model No. Span Width Length Eave Height Ridge Height Bay Distance Main Profile
CTH20/400 20m unlimited 3.89m 8.9m 5m 300x120x5mm
CTH25/400 25m unlimited 3.89m 10m 5m 300x120x5mm
CTH30/400 30m unlimited 3.89m 11.2m 5m 300x120x5mm
CTH40/400 40m unlimited 3.89m 13.5m 5m 300x120x5mm

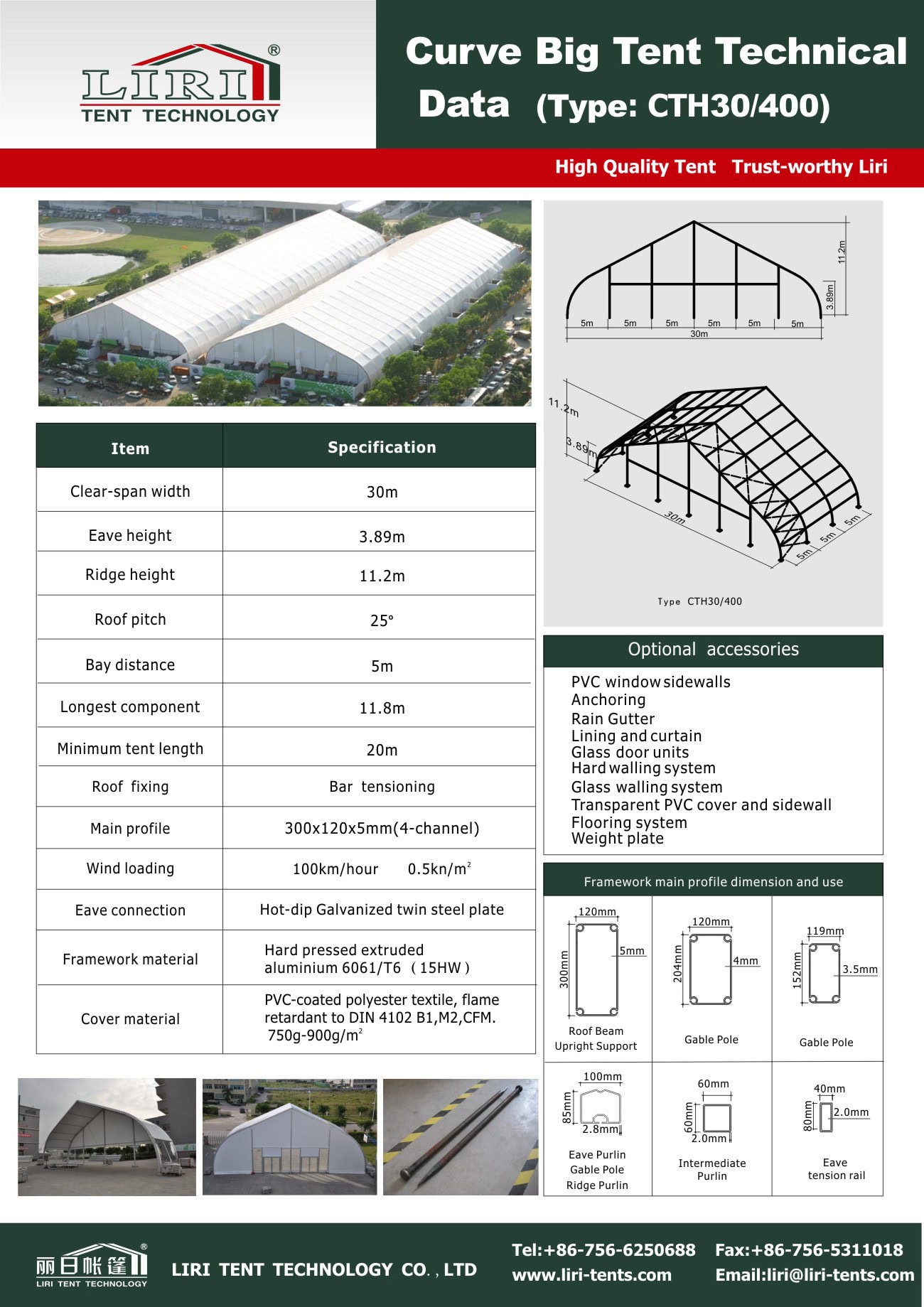

CTH30-400

3. System Features

–Distinctive shape with high roof space

–Clear span design 100% interior space available

–Can be constructed for temporary or permanent

–Excellent performance in snow load capability

–Modular system able to flexibly exend and move

4. Materials
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

5. Installation of tents, canopies and marquee tents

We will provide you the installation manual in English and Russian. Supervisor will be available if needed.

6. Package of Liri Tents, Canopies and Marquee tents
1) Aluminum Frame–membrane film
2)Hardware–solid carton box
3) Tent cover–PVC carry bag
