Extreme cold weather can be a real challenge, but clear span tents are here to help. These tents, also known as event tents or aluminum tents, can keep the inside at 20°C even when it’s -20°C outside. Let’s see how they work.
Security Checkpoints

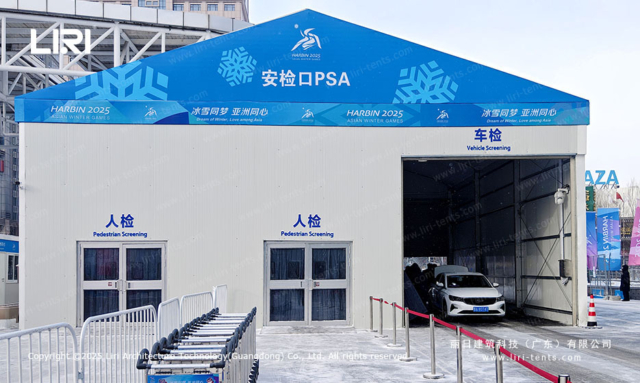

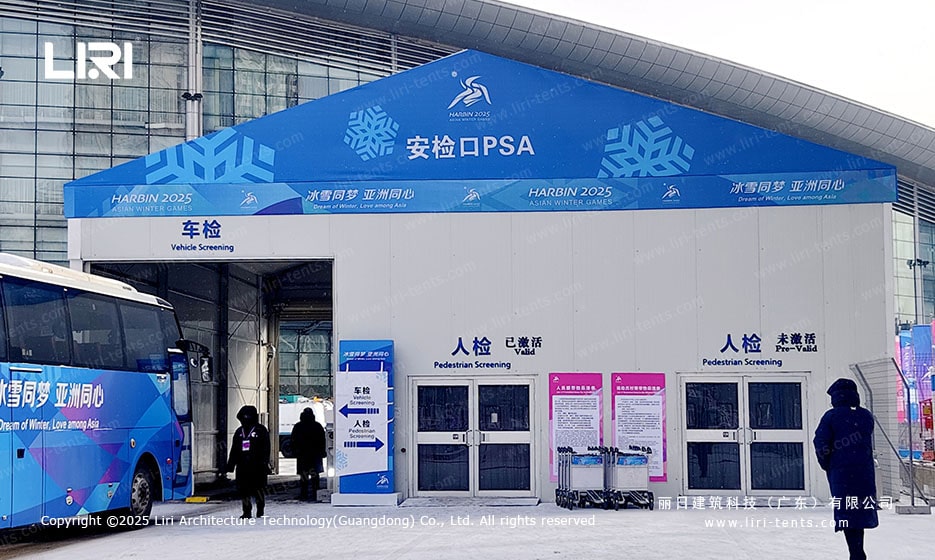

Clear span tents are great for security checkpoints. They provide a warm place for security personnel to work. In Harbin, China, these tents kept security staff comfortable during a big event. The large space inside made it easy to use security equipment. The aluminum frame of the tent is strong and durable, able to withstand heavy snow and strong winds.
Vehicle Lanes
These tents are also perfect for vehicle lanes. Vehicles can pass through without any trouble. In Mohe, China, clear span tents were used during a winter festival. They kept the area inside from getting too cold, which was important for the vehicles and people. The event tents are easy to set up and take down, making them a convenient choice for temporary vehicle lanes.
Equipment Storage
Clear span tents are useful for storing equipment too. The controlled temperature inside prevents equipment from freezing. In Siberia, Russia, these tents were used on a construction site. They kept the equipment safe from the cold and made it easy for workers to access. The aluminum tents are also waterproof and windproof, protecting the equipment from snow and ice.
Extra Insulation
In really cold places, adding 75mm thick rock wool insulation wall panels can make a big difference. Rock wool is a great insulator that stops heat from escaping. In Antarctica, research stations used clear span tents with rock wool panels. This kept the inside warm enough for researchers to live and work comfortably. The event tents with insulation are a reliable solution in extreme cold environments.
Clear span tents are a reliable choice for extreme cold weather. They work well as security checkpoints, vehicle lanes, and equipment storage. The aluminum frame and rock wool insulation make them strong and warm. These tents help operations run smoothly, no matter how cold it gets.
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this clear-span tent?
This clear-span tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this clear-span tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
