We have different sizes of PVC roof cover event tent to accommodate 100 people, 150 people or more.
| Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile | |
| 3m/9.8′ | 3m/9.8′ | 2.6m | 3.16m | 100x48x3mm(4-channel) | |
| 4m/13′ | 3m/9.8′ | 2.6m | 3.35m | 100x48x3mm(4-channel) | |
| 5m/16.4′ | 3m/9.8′ | 2.6m | 3.52m | 100x48x3m4-channel) | |
| 6m/19.7′ | 3m/9.8′ | 2.6m | 3.71m | 100x48x3mm(4-channel) | |
| 8m/26.2′ | 3m/9.8′ | 2.6m | 4.05m | 100x48x3mm(4-channel) | |
| 9m/29.52′ | 3m/9.8′ | 2.6m | 4.24m | 100x48x3mm(4-channel) | |
| 10m/32.8′ | 3m/9.8′ | 2.6m | 4.4m | 100x48x3mm(4-channel) | |
| 12m/39.4′ | 3m/9.8′ | 2.6m | 4.76m | 100x48x3mm(4-channel) | |
| The length can be extended by 3m bay such as 6m,9m,12m,15m…Customized size is available. | |||||
What’s more, we can offer your different shapes of the tent based on your requirements, such as the high peak tent, polygon tent, arcum tent, dome tent, double-decker tent. So if you need any of the tents for different applications, LIRI TENT will be your good choice.

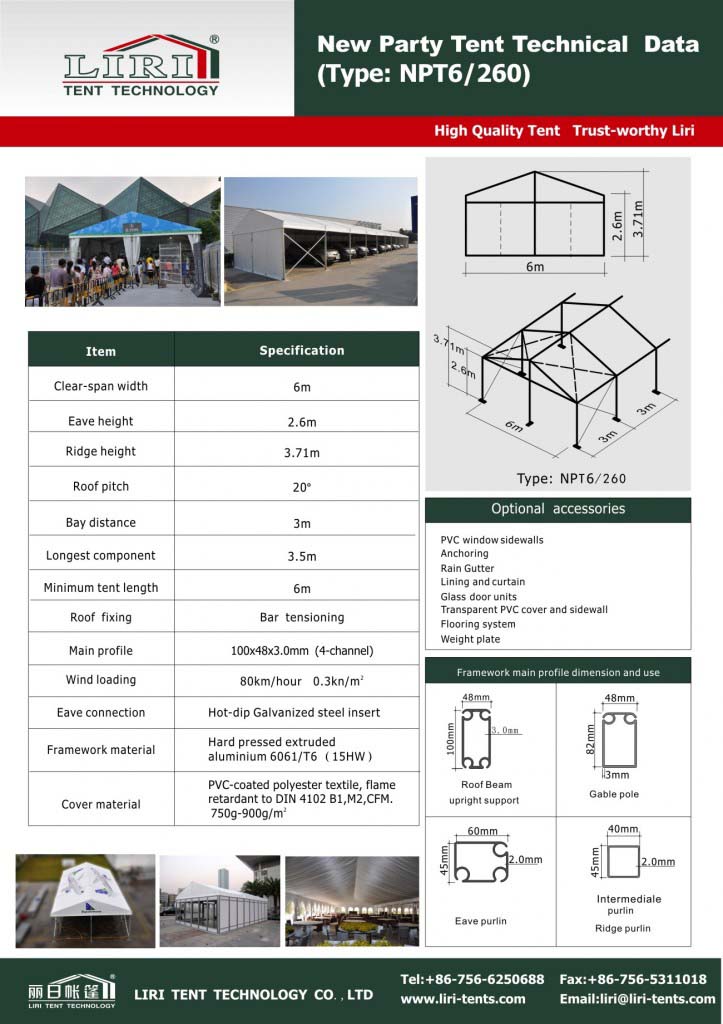

Here are the technical data of the 6m clean span PVC roof cover event tent with the aluminum structure for the lounge for your reference:

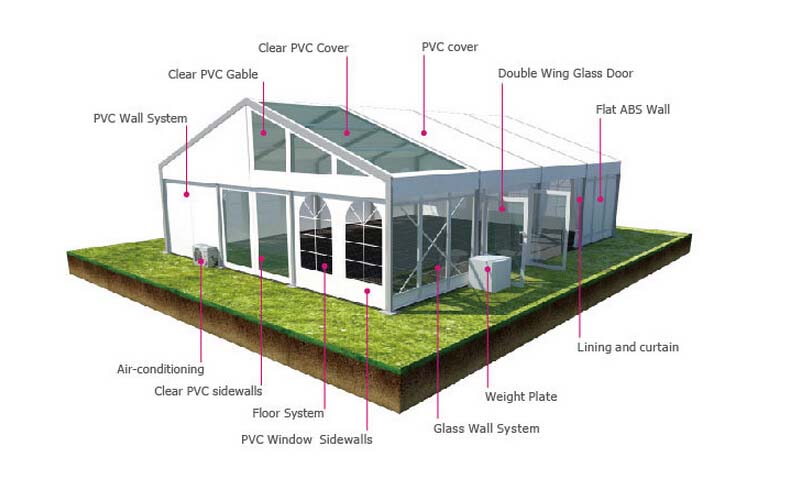

Optional Accessories for the Event Tent
1. Cassette floor or economic wooden floor
2. Decoration liners(roof liner and side liner)
3. Glass door+glass wall
4. French window
5. ABS solid wall
6. Steel Sheet Plate Wall or Sandwich panel wall(perfect for warehouse)
7. Lights(standard lights&Crystal Chandelier)
8. Air conditioners
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this event tent?
This event tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this event tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
