200 People Translucent Dome Event Tent | Customized Geodesic Tents

We are a professional manufacturer of frame tents. Long-term supply and construction of frame tents for weddings, parties, superstores, and temporary events. Our frame tents are pre-fabricated at the factory and quickly assembled on-site. Even 1000 square meters can be set up in a day.

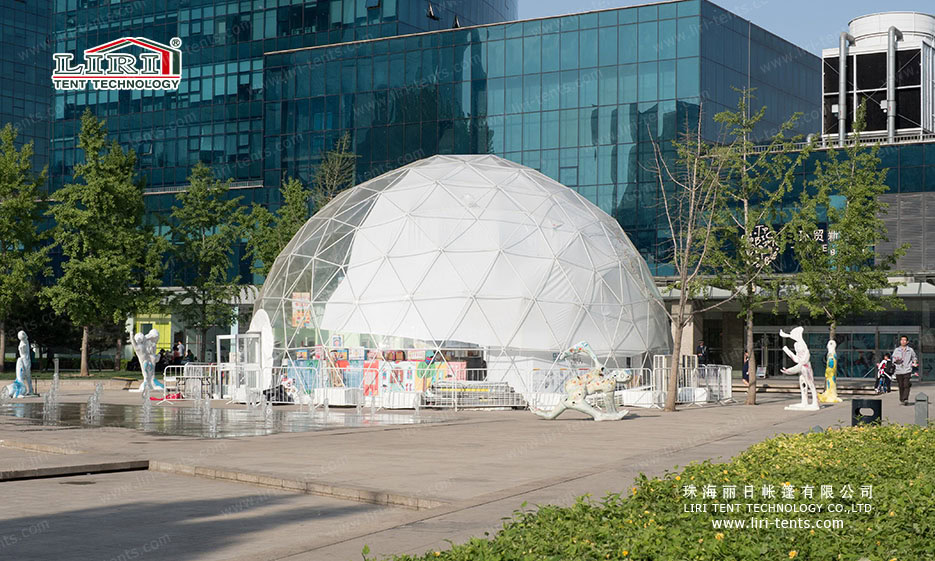

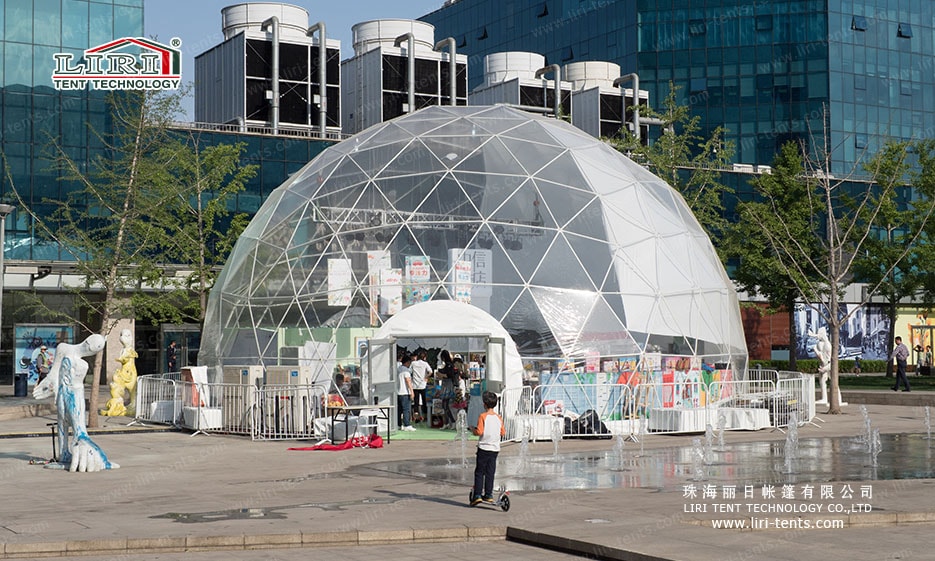

This is a translucent dome tent that can accommodate up to 200 people. With a diameter of 12 m and an inner height of 7 m, it has no interior poles to cover it and the space is almost 100% used. The interior is completely unrestricted in its arrangement. The dome tent is based on the triangular cross-fixing principle and has a lofty overhead space.

Decorative Concept Of Translucent Tent

The translucent tarp has good light transmission, but it has some ability to resist UV rays, which makes a big difference from direct exposure to the outdoors. And the percentage of transparent tarpaulin is chosen from 30% to 70%.

The interior of the tent is usually stuffy in the sun. The modular tent can be replaced with different glass door frames, aluminum door frames, ABS solid walls, French doors, etc. Different interior decorations can bring different experiences to customers.

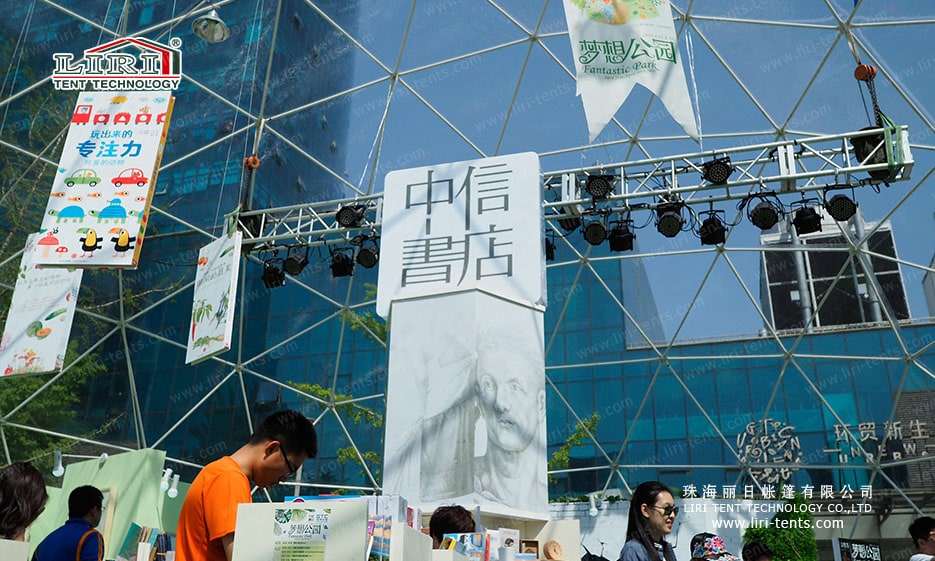

Translucent dome tent billboard decoration

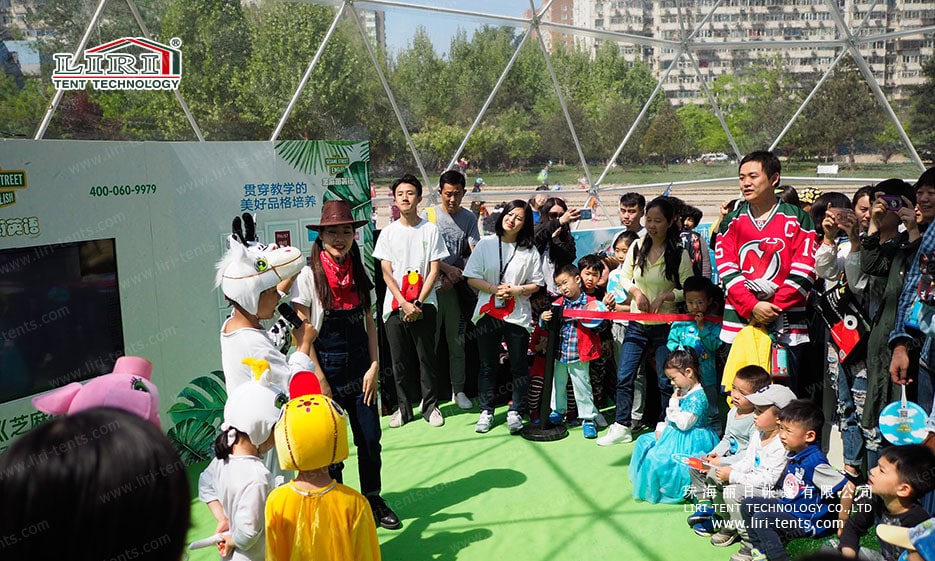

Translucent dome tent interior decoration



Translucent Dome Tent Specifications

DiameterCeiling HeightFloor AreaVolumeStruts Details
3m2.3m
7.1m²12.7m³20mm
4m2.89m12.6m²28m³20mm
5m2.93m19.6m²41m³20mm
6m3.52m28.3m²70m³20mm
7m4.1m38.5m²110m³26mm
8m4m50.2m²134m³26mm
9m4.5m63.6m²191m³26mm
10m5m78.5m²262m³26mm
11m5.5m95m²348m³26mm
12m6m113m²452m³33mm
13m5.82m132.7m²545m³33mm
14m6.27m153.9m²685m³33mm
15m
6.72m176.6m²845m³33mm
16m7.16m201m²1030m³33mm
17m8.5m226.9m²1285m³33mm
18m9m254.3m²1525m³33mm
19m9.5m283.4m²1795m³33mm
20m10m314m²2090m³38mm
21m10.5m346.2m²2420m³38mm
22m
11m379.9m²2785m³38mm
23m11.5m415.3m²3180m³38mm
24m12m452.2m²3615m³38mm
25m12.5m490.6m²4090m³48mm
30m13m706.5m²5744m³48mm
35m14m961m²8170m³48mm
40m15m1256m²11191m³51mm
45m18m1589.6m²17367m³48mm
50m20m1962.5m²

23823m³48mm
55m22m2374.6m²21710m³48mm
60m25m2826.0m²43524m³51mm
