1000sqm Aluminum Strong Warehouse Tent

Home / Tips / 1000sqm Aluminum Strong Warehouse Tent

1. Application:

The tent can be widely used as the warehouse tent, temporary workshop, event marquee, and so on.

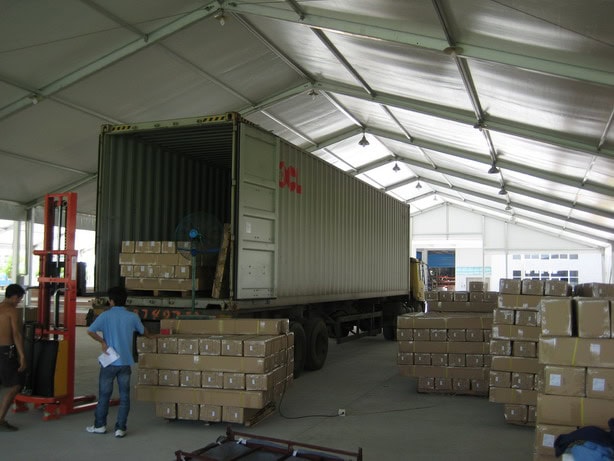

The marquee which the photo shows us the 20m width, 5m eave height for warehouse use, in which can fit for the truck with container. It is with 850g/square meter PVC roof cover and 5cm thick sandwinch panel sidewall with sliding glass windows.

IMG_2258_缩小大小

2. Specification for the warehouse tents (WSBT series):

Main frame profile size for WSBT series: 204*120*4mm
Wind load: 100km/h
Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length.

For more details, please refer to the following chart,

Model No. Span Width Length Eave Height Ridge Height Bay Distance Main Profile
WSBT5 5m unlimited 4.2m 5.05m 5m 204x120x4mm
WSBT7.5 7.5m unlimited 4.2m 5.46m 5m 204x120x4mm
WSBT10 10m unlimited 4.2m 5.84m 5m 204x120x4mm
WSBT12 12m unlimited 4.2m 6.16m 5m 204x120x4mm

3. Optional Accessories:
1)Sidewall-White PVC wall, transparent PVC wall, colorful PVC sidall, ABS wall, Glass wall, Sandwich wall, Steel wall.
2)Windows-Clear PVC window, breathable glass window.
3)Floor-Normal cassett floor system, VIP cassett floor system.
4)Door-Double-swings glass door, Double-swings fire glass door, Double-swings aluminun door, Automatic rooling door, one man door.
5)Decoration curtain and linning-Flat or pleating.
6)Furniture-Round tables, chairs, stages and ect…
7)Electric equipment-Air conditioner, lighting system.
8)Others-printing Ads, artificial grass, ramp, transport rack etc.

4. Materials:
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

5. Color available: White, red, yellow, blue, green, black, grey, transparent etc

6. Products certificate:
Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2
Structure safety: Certificates by the registered engineers in the U. S. A & Australia.

If the customers need above certificates copy, pls feel free to contact with Liri Tent Technology. We will not show them on the website to avoid copys.

7. Characters & Features
1, 100% relocatable, and unobstructed free span space;
2, very easy and very fast to install and dismantle;

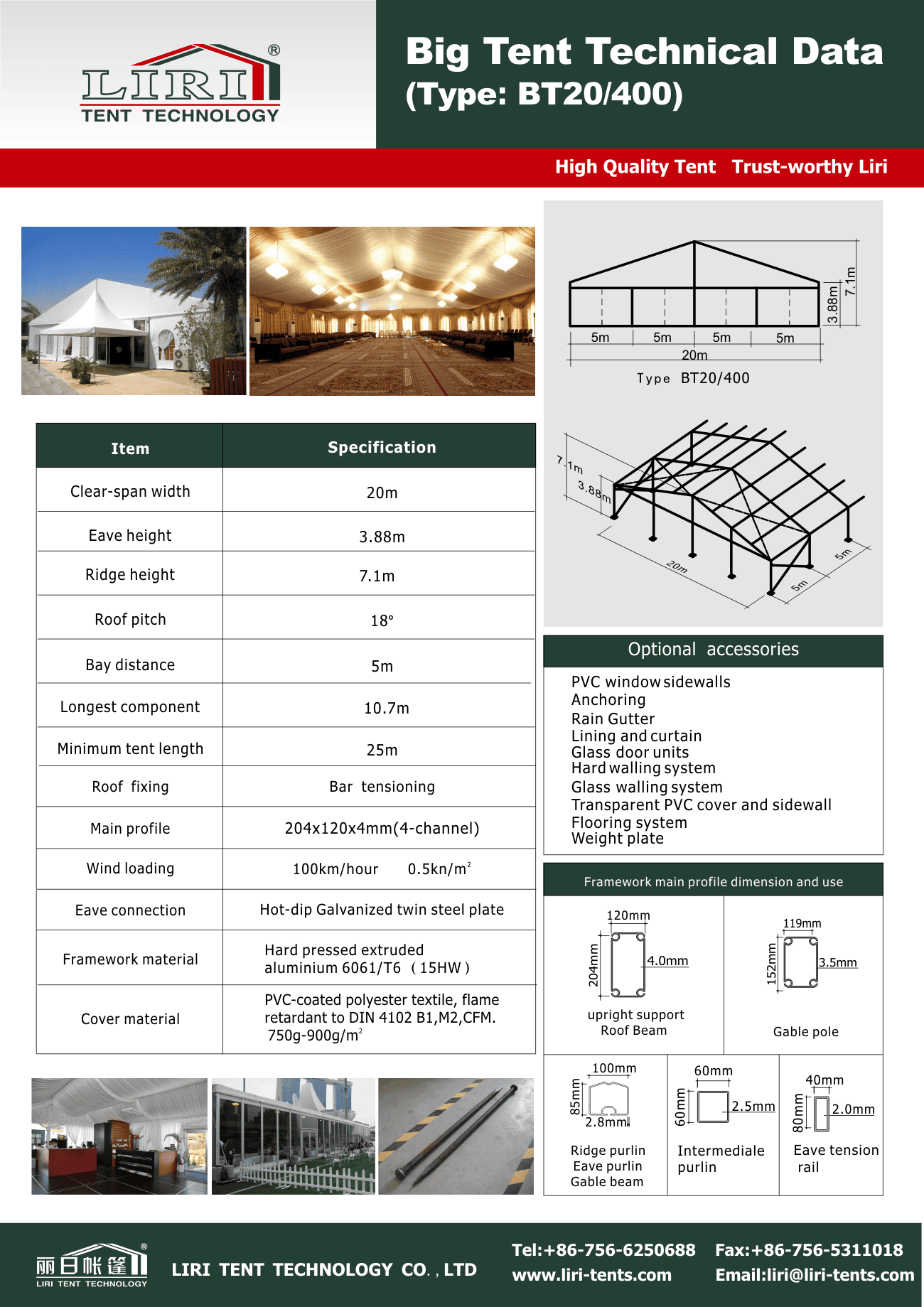

BT20-400

8. Application
Widely used for private & corporate party, celebration, outdoor exhibition & Expo, trade show, commercial activity.

9. Installation of tents, canopies and marquee tents:
We will provide you the installation manual in English and Russian. Supervisor will be available if needed.

10. Package of Liri Tents, Canopies and Marquee tents
1) Aluminum Frame–membrane film
2)Hardware–solid carton box
3) Tent cover–PVC carry bag.

Company Information

Liri Tent Technology (Zhuhai) Co., Ltd. was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.

To form an integrated management system,Liri Tent introduced advanced ERP system in 2008 and bar code management system in 2013. Liri Tent is also the pioneer to apply CNC machines that achieved the automatic processing of aluminum.

LIRI TENT Successful Cases:
Kinds of New Style Tent for China Open
Canton Fair Exhibition Hall
2011 Universiade Official Tent Supplier
2010 Asian Games Exclusive Tent Supplier&Sponsor
Dior Event in Hong Kong
China Grand  Rally Sponsor
Hong Kong Wine and Dine Festival

FAQ
Q1: Can you print our logos on tent?
Yes.Customized logos can be print on the tent fabric according to your requirements.

Q2: Is that factory price?
Yes. We assure you all prices are based on factory.

Q3: Does your tent be able to install repeatedly?
Our tents can be assembled and dismantled repeatedly with small transportation size.The lifespan of aluminium framework can reach 15-20 years,and 5-8 years for PVC fabrics depending on different conditions of usage.

Q4: What documents are available?
A full range documents including structural drawings,packing list,installation manual and relative certificates can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.

Q5: What size tent is necessary for your special event?
A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.

Q6: Has your tent product been certified?
Yes.Our tent product has passed the engineering tests and gained the America And Australia structural engineering certificates. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and gained the flame retardant certificates issued by America, Australia, New Zealand, and Britain.

Q7: Is your tent strong and stable enough? How about the wind loading?
Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6) so our tent structure is safe and strong and can resist wind up to 100 km/hr.

Q8: How long is the warranty period?
Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem.
