Curved roof tents are very popular among different types of event tents. The end of the roof is equipped with a retractable gable, which can be freely adjusted according to the needs and can extend up to 3 meters. This time, we installed a glass curtain wall for the curved tent, which not only increases the amount of indoor light, but also allows you to observe the outdoor environment.

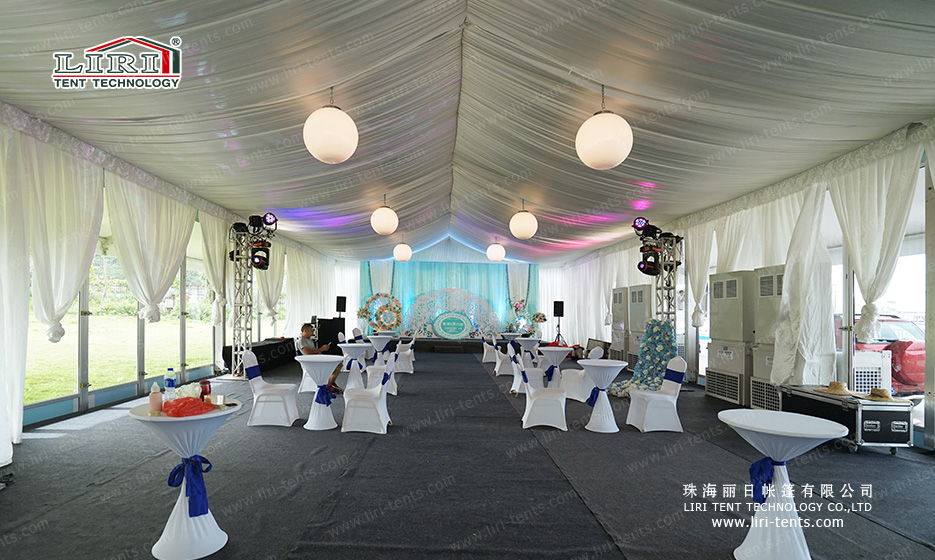

The 10x30m arcum tent for the wedding was very rich in accessories. We install multiple devices for it. For example, wooden floor, multiple high-powered air conditioners, decorative cloth Aman, spherical chandelier, wedding stage, white tables, chairs, etc. This greatly reduces the work of the organizer in terms of accessories. We provide perfect after-sales service. Whether it is the end of the party tent recovery, or continuing to rent have a mature and executable plan. It’s worth mentioning that the arc tent has good cases in weddings, exhibitions, and sports events, and is a trustworthy clear span event tent.
Arcum Wedding Event Tents Dimensions
| Span Whidth | Eave Height | Ridge Height | Bay Distance | Main Profile |
| 10m | 3.88m | 5.53m | 5m | 204x120x4mm (4 – channel) |
| 12m | 3.88m | 5.83m | 5m | 204x120x4mm (4 – channel) |
| 15m | 3.88m | 6.3m | 5m | 204x120x4mm (4 – channel) |
| 16m | 4m | 6.5m | 5m | 204x120x4mm (4 – channel) |
| 18m | 3.88m | 6.9m | 5m | 204x120x4mm (4 – channel) |
| 20m | 3.88m | 7.1m | 5m | 204x120x4mm (4 – channel) |
| 20m | 6m | 9.22m | 5m | 204x120x4mm (4 – channel) |
| 21m | 3.88m | 7.25m | 5m | 204x120x4mm (4 – channel) |
| 25m | 3.88m | 7.88m | 5m | 204x120x4mm (4 – channel) |
Technical Specifications
- ●Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- ●Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- ●Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- ●Connectors: hot-dip galvanized steel
- ●Wind load: up to 100 km/h (with proper anchoring)
- ●Snow load: 75 kg/sqm
- ●Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- ●Bay distance: 3m / 5m, extendable in modular sections
- ●Certifications: CE, TÜV, ISO9001, SGS
- ●Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
Frequently Asked Questions
What is the clear-span width of the 10m × 30m wedding tent?
The 10m × 30m wedding tent is a full clear-span structure — no interior poles or beams, so 100% of the 10m × 30m footprint is usable. Clear spans are available from 3m up to 60m and can be extended in modular bays to any length.
Can the tent be fully decorated and lined for a wedding?
Absolutely. We offer ceiling linings, drapery, wood or glass flooring, lighting, glass walls and climate control so the marquee matches any wedding theme.
What are the MOQ, lead time and shipping for this wedding tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
