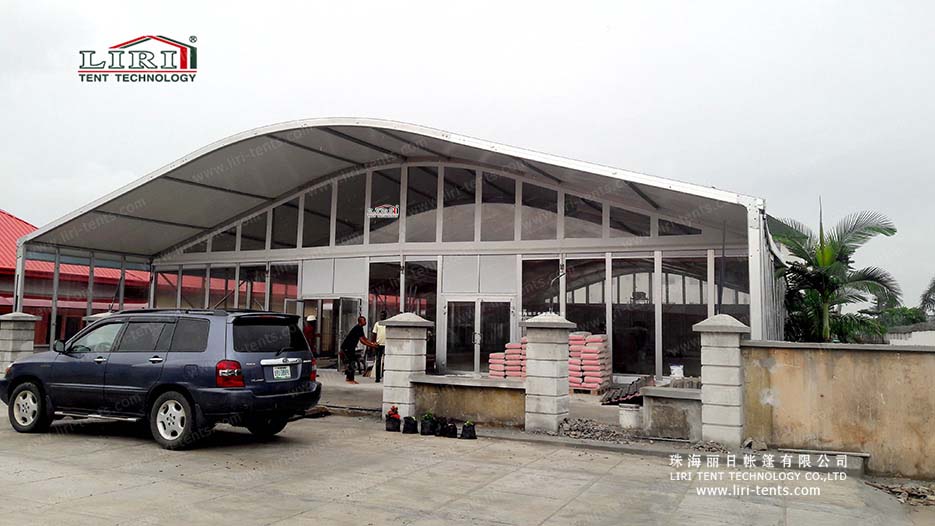

This curved event tent measures 20x40m and can accommodate up to 1000 people. It was installed in Cameroon, Central Africa, for an outdoor restaurant. The interior of the Liri clear span tent is not covered by any poles and the floor space can be used 100%. The tent is available with a wide range of edging, mounting panels, PVC fabric, aluminum door frames, etc.
The curved roof tent has one advantage: the roof does not collect rain, wind, sand or debris. Roofs are easier to keep clean.

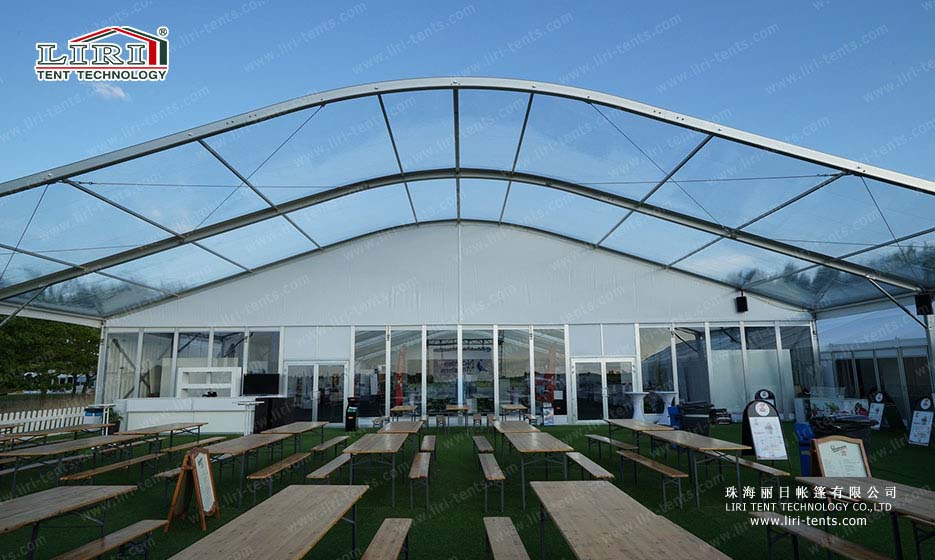

The Arc Roof Tent can be widely used as a wedding tent, party tent, exhibition tent, church tent, etc. The clear span tents are available in widths from 10m to 60m and lengths of 3m or 5m as a pitch. In addition, be imaginative and change the shape of the roof to A-shape, circle, curve, polygon, etc.
We are a manufacturer and seller of large event tents and have a full line of clear span frame tents for sale and rental. Used arc roof tents can be used for a variety of important event occasions, with the advantage of 500, 1000, and 2000 people specifications and cheap rental fees.
Features
- Light weight, easy to transport.
- Strong structure, can resist wind speed 80 km/h.
- Flexible can be installed on any type of land.
- Quiet, can block most of the outdoor noise.
- Multi-functional, can match a variety of practical equipment.
Accessories
- PVC window wall.
- Transparent PVC roof cover.
- Transparent PVC wall.
- Rain gutters.
- Ground Anchor.
- Counterweight plate.

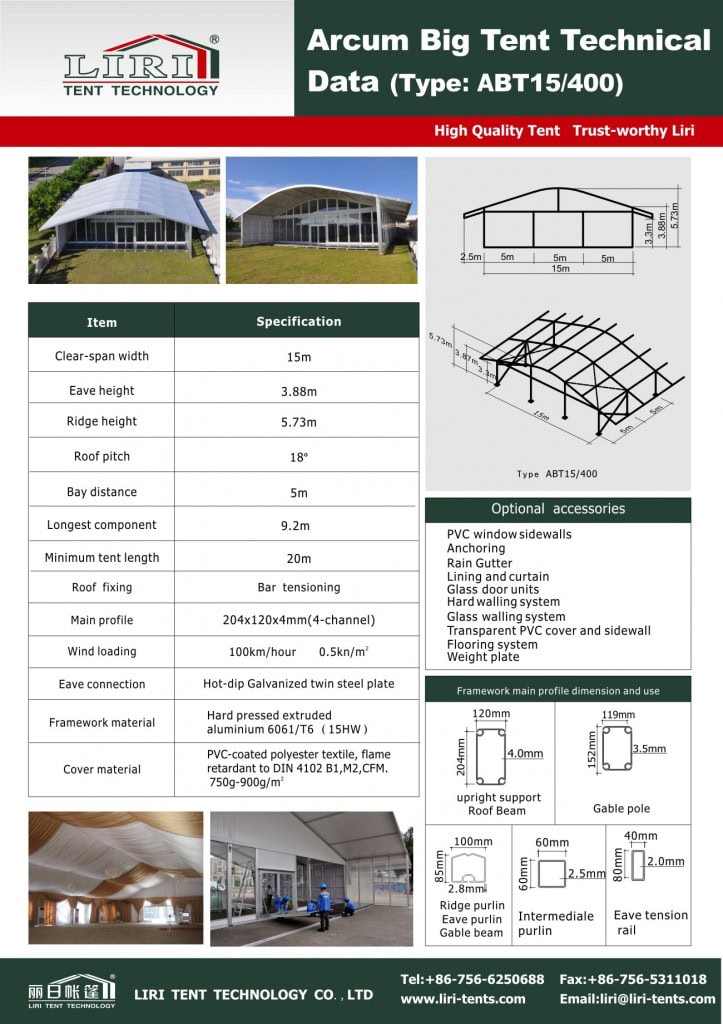

Specifications
| Span Whidth | Eave Height | Ridge Height | Bay Distance | Main Profile |
| 15m | 3.92m | 5.4m | 5m | 300x120x5mm (4 – channel) |
| 20m | 3.92m | 6.3m | 5m | 300x120x5mm (4 – channel) |
| 25m | 3.92m | 7.15m | 5m | 300x120x5mm (4 – channel) |
| 30m | 3.92m | 7.87m | 5m | 300x120x5mm (4 – channel) |
| 40m | 3.92m | 9.6m | 5m | 300x120x5mm (4 – channel) |
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What size arcum arc-roof tent do I need for 1000 people?
For around 1000 guests we recommend a clear-span structure of about 25m × 40m (82ft × 131ft). The exact size depends on your layout — banquet seating with a stage and dance floor needs more space than theatre or standing setups. Our team sizes every arcum arc-roof tent to your headcount and venue.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this arcum arc-roof tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
Shipping costs for shipping 1000 people tents to the USA. How much is the price difference between a new tent and a used tent.
What is the budget for a 1000 people tent? I am really anxious to use a large tent.
