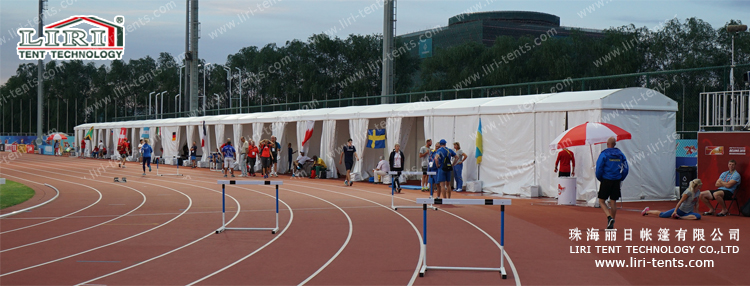

Elegant small dome tents are designed for a variety of special, small gatherings. It is equally at home in the aisles and passageways of large sporting events, for temporary restrooms, equipment rooms, and more.

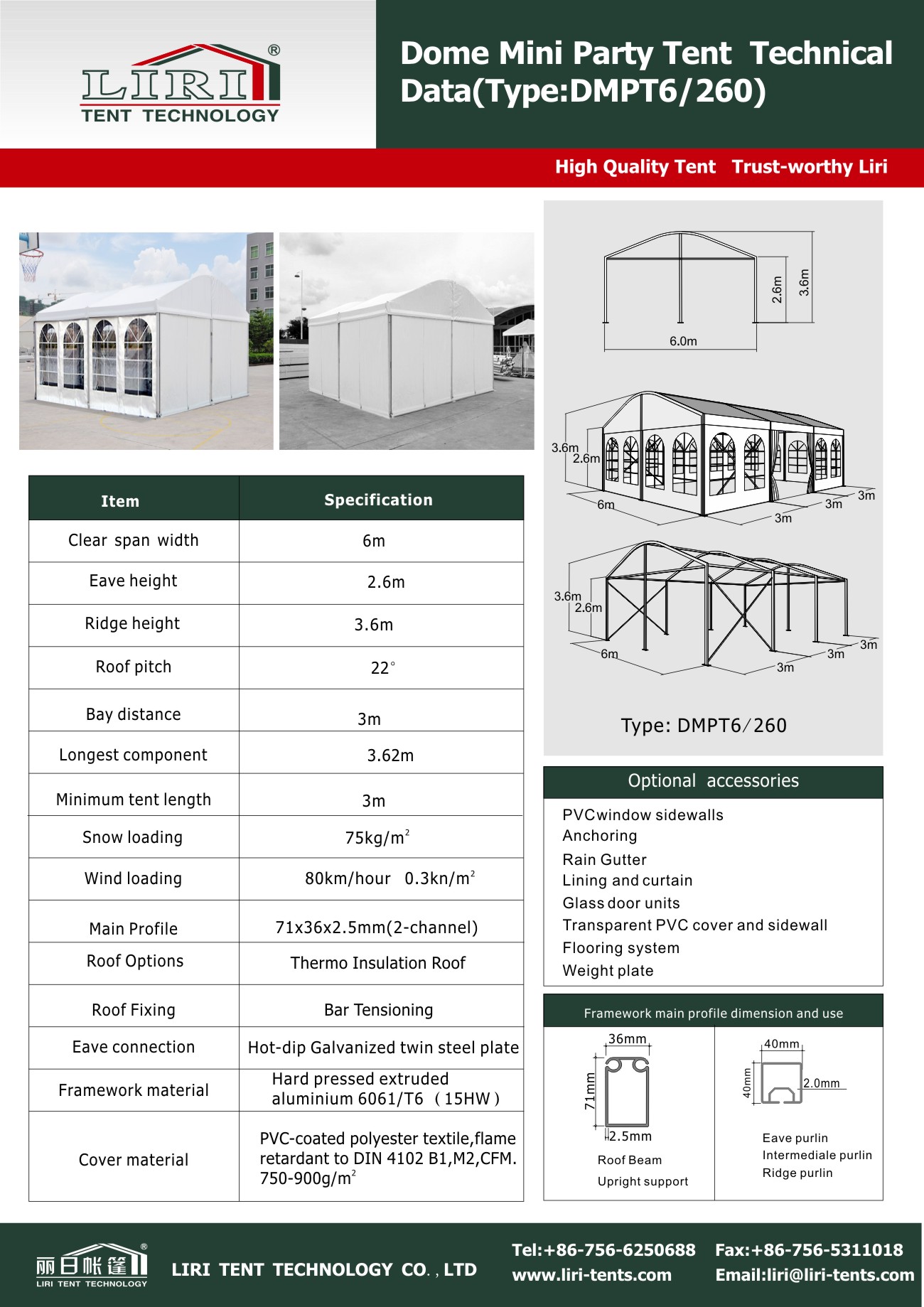

The span widths of the Dome Mini Party Tent series are available in 3m, 4m, 5m, 6m, and 8m, and the length has no limit, which can be increased or decreased by 3m bay distance. Please refer to the following chart to get more details,
| Model No. | Span Width | Length | Eave Height | Ridge Height | Bay Distance | Main Profile |
| DMPT3/260 | 3m | unlimited | 2.6m | 3m | 3m | 71x36x2.5mm |
| DMPT4/260 | 4m | unlimited | 2.6m | 3.2m | 3m | 71x36x2.5mm |
| DMPT5/260 | 5m | unlimited | 2.6m | 3.4m | 3m | 71x36x2.5mm |
| DMPT6/260 | 6m | unlimited | 2.6m | 3.6m | 3m | 71x36x2.5mm |
| DMPT8/260 | 8m | unlimited | 2.6m | 4m | 3m | 71x36x2.5mm |
System Features
–Fine shape with a dome roofline.
–Flexible connection with any position on another tent.
–Excellent walkway solution.
–Easy to set up and dismantle without machinery.
–Aluminium clear span structure.
–No exterior guy lines are required.
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this geodesic dome?
This geodesic dome is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
Will the tent protect the sports surface underneath?
Yes. The clear-span design leaves the full court/field free of poles, and optional flooring or ground protection can be added so the playing surface stays intact.
What are the MOQ, lead time and shipping for this geodesic dome?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
