The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m, and 6x6m. Pagoda Tent has a side height of 2.5m. This type of Pagoda tent uses a 3 channel 65x65x2.5mm aluminum alloy. The standard 10x10m Pagoda with a 2.6 side height uses a 4 channel 122x68x3mm aluminum alloy and the wind loading is 80km/h (0.3kn/m2).
The optional accessories for the Pagoda are glass walling system, door units, flooring system, ground anchors, lining, etc.
Pagoda tents can be used as a single unit or combined to enlarge space and become a special structure style with a rain gutter.
Pagoda Tent can make your outdoor event become more visually pleasing!
For more information please contact us!
tent67@liri-tents.com Mobile/whatsapp: +86-18818651021 skype: tent67

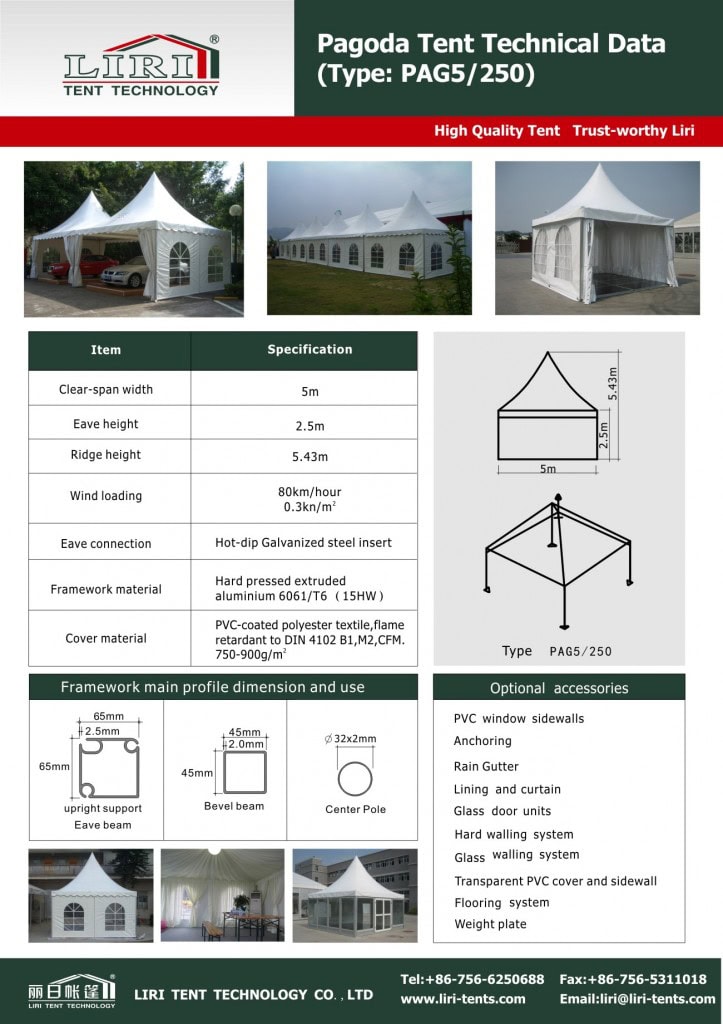

Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What is the clear-span width of the 3m × 3m pagoda tent?
The 3m × 3m pagoda tent is a full clear-span structure — no interior poles or beams, so 100% of the 3m × 3m footprint is usable. Clear spans are available from 3m up to 60m and can be extended in modular bays to any length.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this pagoda tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
Send the site details, required size and operating season for a tailored specification.
