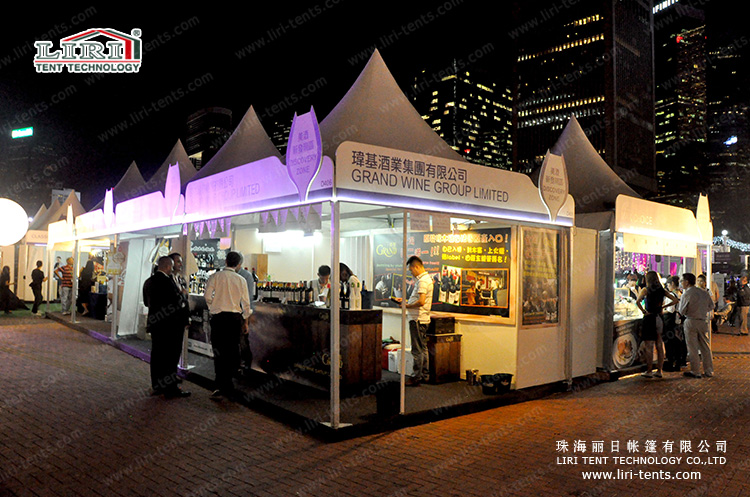

The 2015 Hongkong Wine and Dine Festival is holding in the beautiful port. Have you been there to have fun? Have you paid attention to all kinds of tents? Very glad, our company, Liri Tent cooperated with the big event once more.

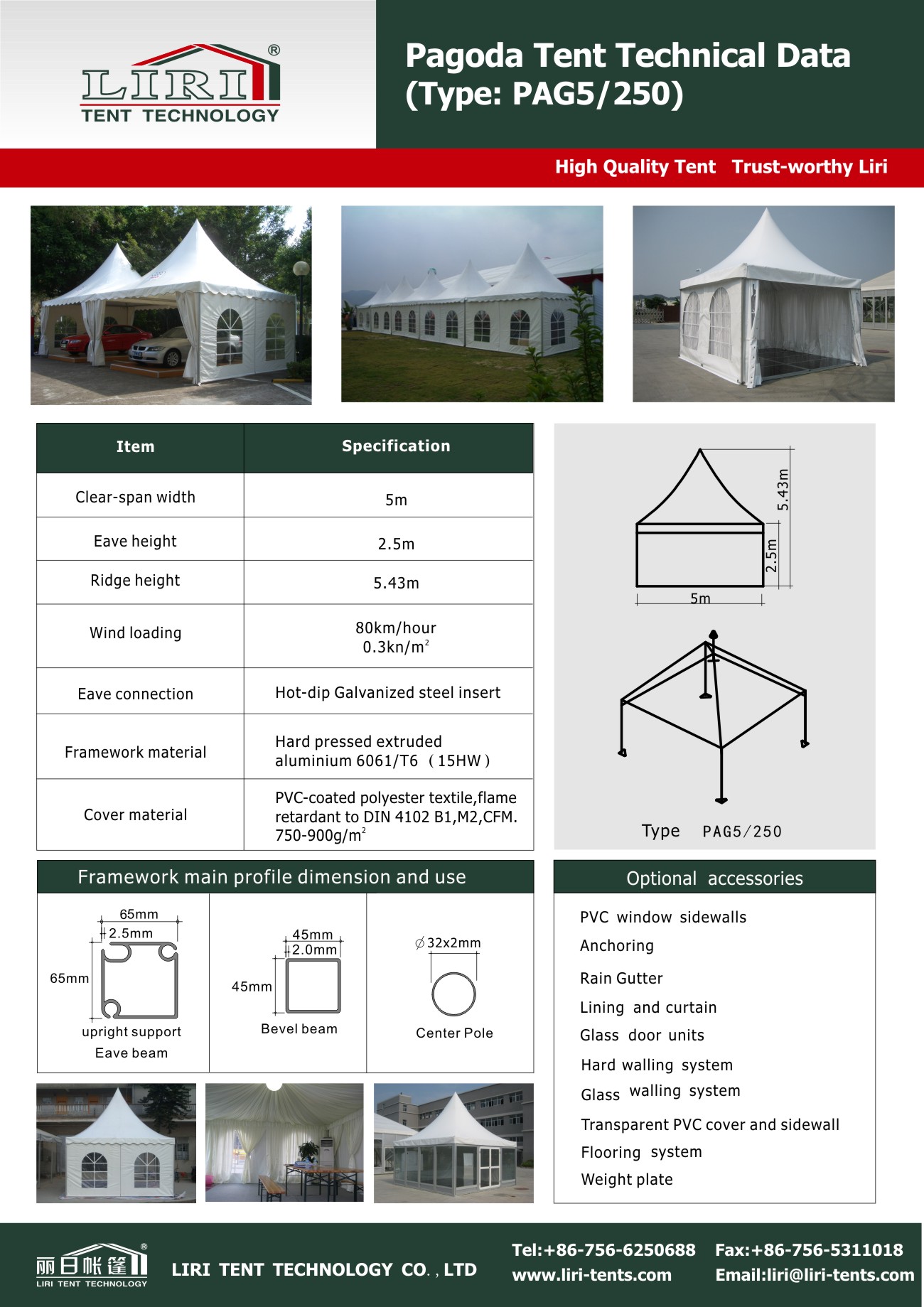

Among the different kind of tents, the Pagoda Tent must be the leading role which attract your eyes. The standard Pagoda Tent Series is available in 3x3m, 4x4m, 5x5m, 6x6m, 8x8m and 10x10m which with the high peak. It could be used as the single unit or combined to enlarge space and become a special structure style with a rain gutter.
System Features,
–Elegant high peak roof line
–Easy assemble and dismantle
–No machinery required
–Patented roof cover fixation of aluminum tube exclusive by Liri Tent
–The new roof cover fixation reduce the assemble time and physical effort prevent keder slip out mostly
–Single unit but can be combined by a rain gutter to make a larger space and a special structure style
For more details, please contact me,
Zhuhai Liri Tent Technology Co., Ltd
Ms. Rainbow
Mobile/Whatsapp: +86 135 7066 9565
Phone: +86 756 6320923
Skype: tents65
Email: tent65@liri-tents.com
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this event tent?
This event tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this event tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
