The length of the Sports structure Tents is unlimited with a standard span that includes 10m, 15m, 18m, 20m, 25m, 30m, 37m, and 40m. The maximum span is 60m and the largest edge height is 7m. The top height is 15 meters.
The standard spans can be divided into small, medium, and large multi-functional sports structures tents. In addition to the standard size range, we can produce the pre-processing of multi-functional sports structure tents to meet the site-specific requirements of the customer.
Framework
The framework of the tent uses a high-strength special aluminum alloy structure, it is strong and safe. The tent tarp is made out of imported double PVC synthetic fiber. Customers can choose the standard tension fabric of the monolayer roof and hot inflatable energy-efficient roof.
The tent structures venue has no required placement area. The product can be placed on any surface, generally the ground. These surfaces can include grass, sand, asphalt, cement, and marble. The weather-resistant tents have a capacity of 8 which is able to protect from fire, rain, and sunlight. The UV Protection function is at international standards.
Services
Multi-functional sports structure tents provide a full range of non-insulation and full insulation wall options and accessories. These include pedestrian and vehicle traffic doors, internal separator screen, HVAC (HV/AC), and lighting system, which can be configured to ensure that the available light will achieve the best effect.
Multi-functional sports structure tents also have a variety of optional accessories available. The options include stairs within the canopy, stairs outside of the canopy, the edge wall covering with transparent PVC window, ground anchors, interior ceiling, glass curtain wall, ABS hardware wall, sandwich wall, color steel hoardings, glass doors, sliding doors, electric gates, fully transparent tarpaulin, sidewall coverings, and flooring system.

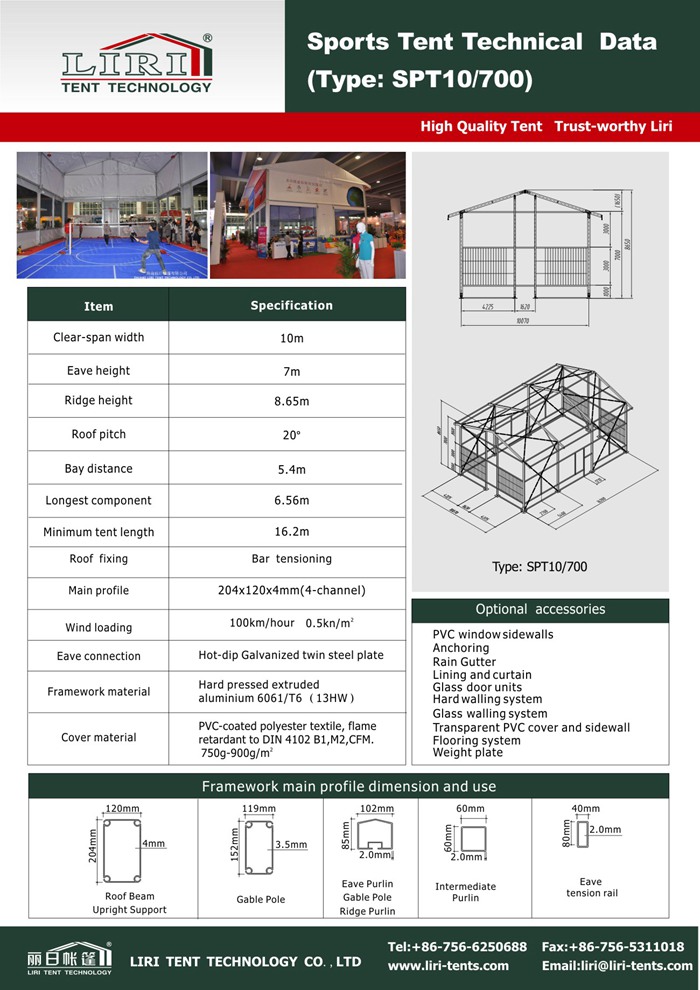

Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What sizes are available for this sports tent?
This sports tent is built as a clear-span structure available from 3m to 60m wide and extendable in modular bays to any length, so it can be tailored to your exact guest count and site.
Will the tent protect the sports surface underneath?
Yes. The clear-span design leaves the full court/field free of poles, and optional flooring or ground protection can be added so the playing surface stays intact.
What are the MOQ, lead time and shipping for this sports tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
