Pagoda Tent used for Outdoor Sport Tent
A pagoda tent is a peaked aluminum-frame structure that works well for many outdoor sport events. Unlike flat-roof canopies, its raised centre creates headroom and draws the eye — making it a natural choice for VIP lounges, registration desks, and sponsor booths at sporting events.
Common uses at sport venues include temporary rest areas for marathon runners, medical checkpoints during cycling races, and covered viewing platforms at horse racing events. The compact 5x5m and 6x6m models are easy to transport and set up with a small crew — no crane or heavy machinery needed.
Sporting event tents like the pagoda series connect flexibly to other marquee structures. You can link several units together to form a walkway from the main tent to a VIP area, or arrange them as standalone hospitality pods around a race track.
Key advantages of the aluminum pagoda tent:
– Clear span interior — no centre poles to work around
– Modular bay system lets you extend length in 5m increments
– PVC roof cover is fire retardant to DIN4102 B1, M2 standard
– Wind resistance rated to 100 km/h with proper anchoring
– Available in multiple colours, including block-out and translucent fabric options
For sport organizers planning temporary infrastructure, a professional event tent supplier with in-house manufacturing can customize the frame colour, roof fabric, and sidewall configuration to match sponsor branding requirements.

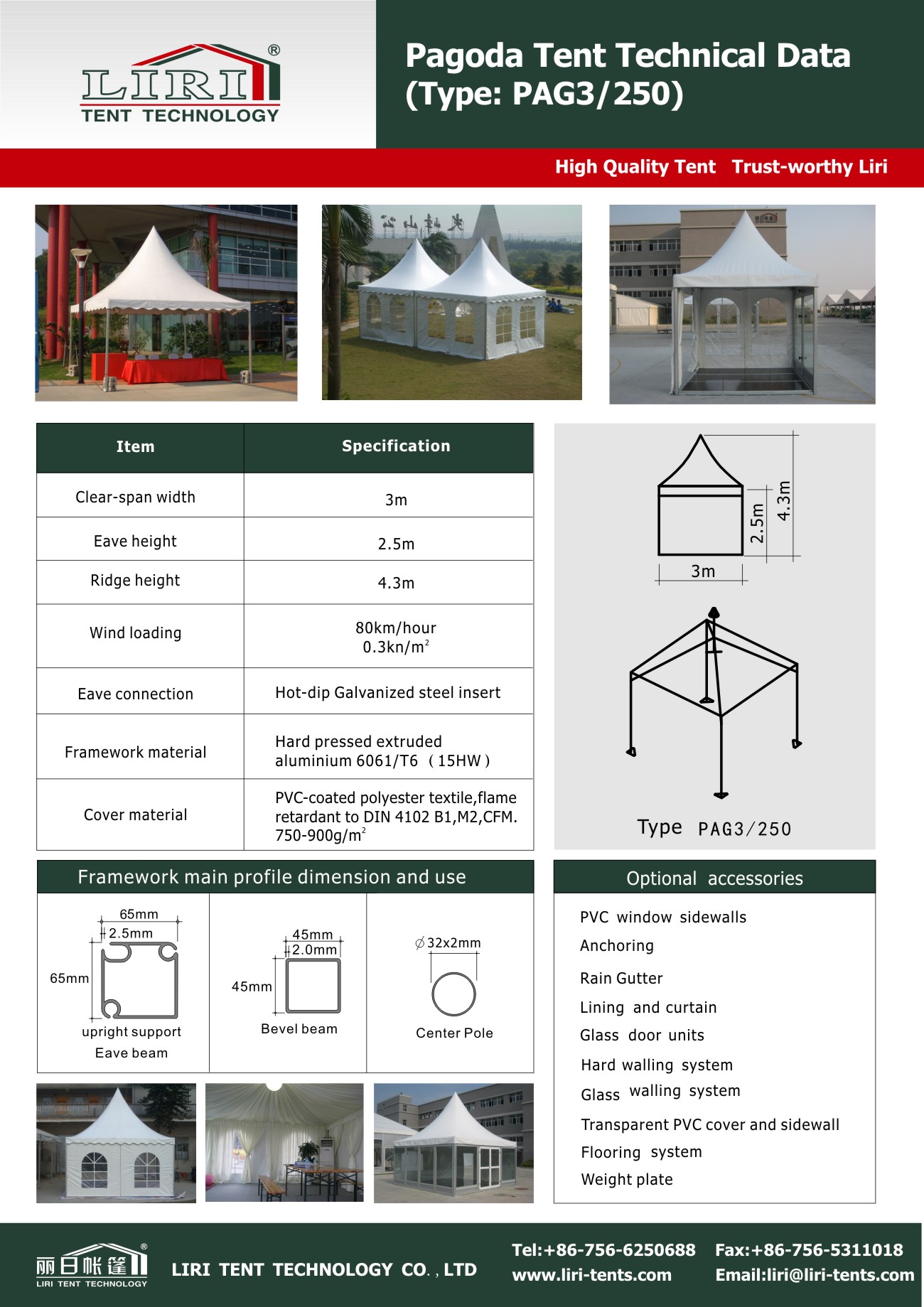

Below is the standard pagoda tent specification table for quick reference:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| PAG 4m/13.1′ | 4m/13.1′ | 2.5m | 4.78m | 65x65x2.5mm (3-channel) | |
| PAG 5m/16.4′ | 5m/16.4′ | 2.5m | 5.57m | 65x65x2.5mm (3-channel) | |
| PAG 6m/19.7′ | 6m/19.7′ | 2.5m | 5.92m | 65x65x2.5mm (3-channel) | |
| PAG 8m/26.2′ | 8m/26.2′ | 2.6m | 5.36m | 122x68x3mm (3-channel) | |
| PAG 10m/32.8′ | 10m/32.8′ | 2.6m | 6.38m | 122x68x3mm (3-channel) |
Frequently Asked Questions
Can pagoda tents connect to larger marquee structures?
Yes. Pagoda tents can link to any position on a clear span marquee via flexible connection channels, making them ideal as entry lobbies or VIP extensions to a main event tent.
What sizes are available for sport event use?
Standard span widths range from 4m to 10m. For most sport hospitality applications, the 6x6m or 8x8m models provide enough space for a reception desk, seating area, and refreshment station.
How fast can a pagoda tent be set up?
A trained crew of 2-3 people can assemble a 6x6m pagoda tent in under two hours. The aluminum frame uses pin-and-socket connections — no welding or heavy lifting equipment required.
Is the roof cover fire-rated for public events?
Yes. The PVC roof fabric meets DIN4102 B1/M2 fire retardant standards, which is the minimum requirement for temporary structures at most public sporting events in Europe and the Middle East.
Aluminum frame event tents come in many configurations — the pagoda is just one of them. For larger sport venues, consider a clear span or TFS curve structure. For more details, contact Liri Tent Technology.
