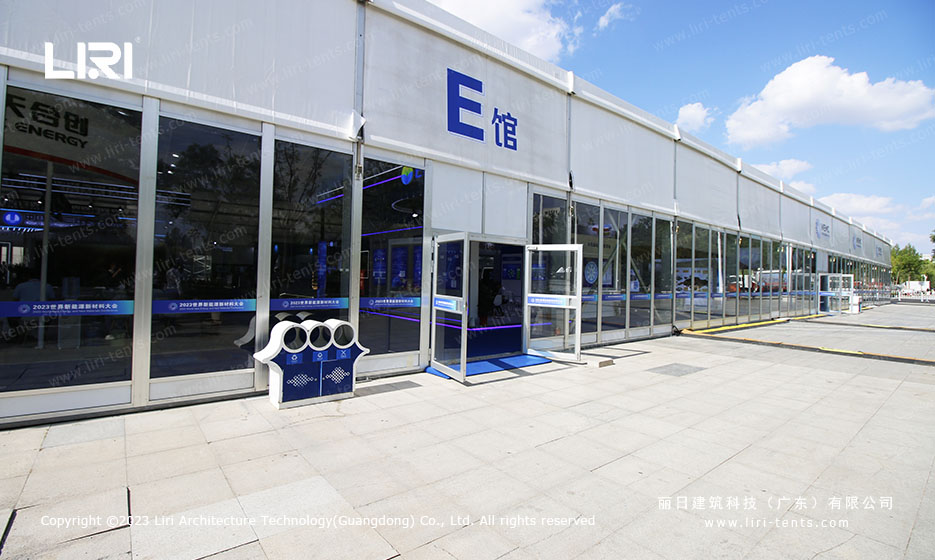

The clear span event tent has revolutionized the organization of trade fairs globally. In the past, these events took place in permanent structures, shielded from weather conditions, and fully-equipped. Today, the robust trade show tent serves as a seamless substitute for the conventional building.
Large trade shows typically span 3 to 30 days, accommodating over 10,000 attendees. The venue is meticulously divided into areas, including exhibition space, equipment quarters, security checkpoints, and rest areas. The equipment demands for the venue are exceptionally high, requiring reliable access to electricity, proper ventilation, rain protection, and sturdy flooring at entrances and throughout the space.
The new exhibition tent event finally meets the requirements and performs flawlessly under strict construction supervision. It utilizes high-strength aluminum as the framework, allowing for a height of up to 10 meters. Additionally, its length and width have nearly unlimited extension capabilities. Lastly, all necessary equipment can be provided on a temporary basis.
Technical Specifications
- Frame: 6061-T6 aluminum alloy, 3–4mm wall thickness, 20–30 year lifespan
- Roof & walls: 850gsm double PVC-coated polyester — 100% waterproof, UV & tear resistant, self-cleaning
- Fire rating: flame-retardant to DIN4102 B1 / M2 / CFM
- Connectors: hot-dip galvanized steel
- Wind load: up to 100 km/h (with proper anchoring)
- Snow load: 75 kg/sqm
- Clear-span width: 3–60m, no interior poles or beams (100% usable space)
- Bay distance: 3m / 5m, extendable in modular sections
- Certifications: CE, TÜV, ISO9001, SGS
- Options: glass / ABS / transparent walls, glass doors, flooring, lining, air conditioning, lighting
Tent Size & Capacity Guide
Use this quick reference to match guest numbers to a recommended clear-span size (banquet/seated layouts; theatre or standing fits more):
| Guests | Recommended Size (m) | Imperial (ft) | Floor Area |
|---|---|---|---|
| 100 | 10m × 15m | 33ft × 49ft | 150 m² |
| 150 | 10m × 20m | 33ft × 66ft | 200 m² |
| 200 | 10m × 25m | 33ft × 82ft | 250 m² |
| 300 | 15m × 25m | 49ft × 82ft | 375 m² |
| 500 | 20m × 30m | 66ft × 98ft | 600 m² |
| 800 | 20m × 40m | 66ft × 131ft | 800 m² |
| 1000 | 25m × 40m | 82ft × 131ft | 1000 m² |
| 2000 | 30m × 60m | 98ft × 197ft | 1800 m² |
Frequently Asked Questions
What size exhibition tent do I need for 1000 people?
For around 1000 guests we recommend a clear-span structure of about 25m × 40m (82ft × 131ft). The exact size depends on your layout — banquet seating with a stage and dance floor needs more space than theatre or standing setups. Our team sizes every exhibition tent to your headcount and venue.
What materials is the tent made of?
A 6061-T6 aluminum alloy frame with an 850gsm double PVC-coated cover — 100% waterproof, flame-retardant to DIN4102 B1, wind-rated to 100 km/h and built to last 20+ years.
What are the MOQ, lead time and shipping for this exhibition tent?
Production typically takes 3–6 weeks depending on size and options. We ship worldwide FOB by container, support flexible MOQ, and provide installation drawings and on-site guidance. Contact us for a quote.
