Clear Span Event Tents

The clear span event tent is the most widely used type of tent in structural tents.

Widths range from 20m/30m/40m/50m and 80m/100m.

There are no poles inside and space is 100% available.

Commonly used for parties, weddings, family gatherings, and business events.

Features of Clear Span Event Tents

  • Frame struss: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel.
  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius.
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.

Clear Span Event Tents Specification

Span WhidthEave HeightRidge HeightBay DistanceMain Profile
30m4m8.9m5m350x120x5mm (4 - channel)
40m4m10.5m5m350x120x5mm (4 - channel)
45m4m11.38m5m350x120x5mm (4 - channel)
50m4m12m5m350x120x5mm (4 - channel)
60m4m13.6m5m350x120x5mm (4 - channel)

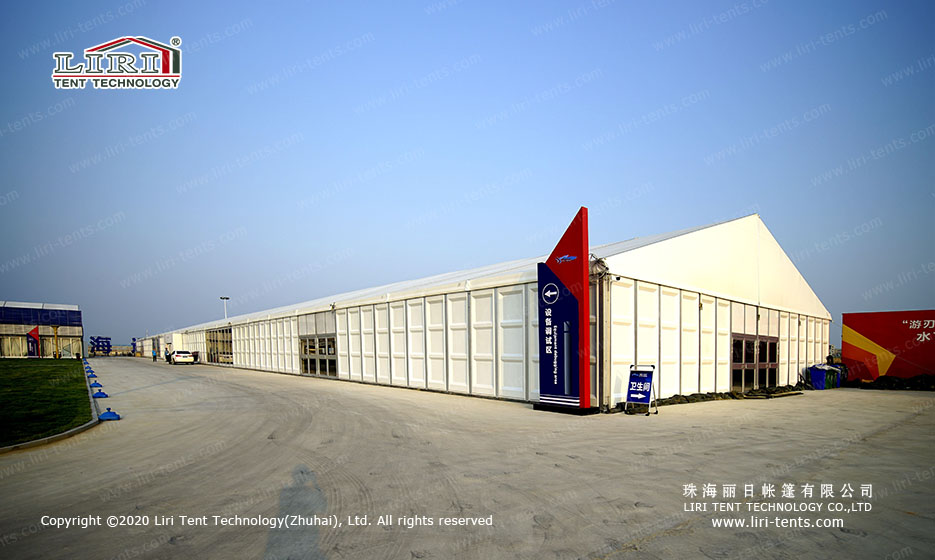

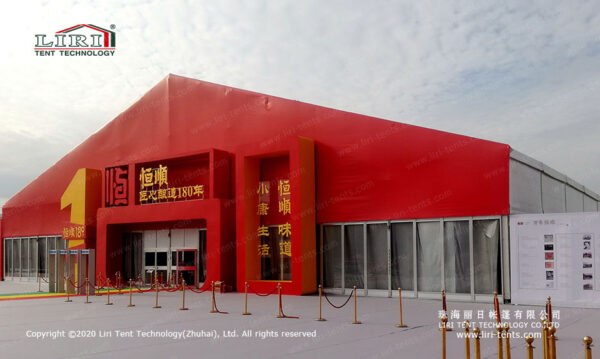

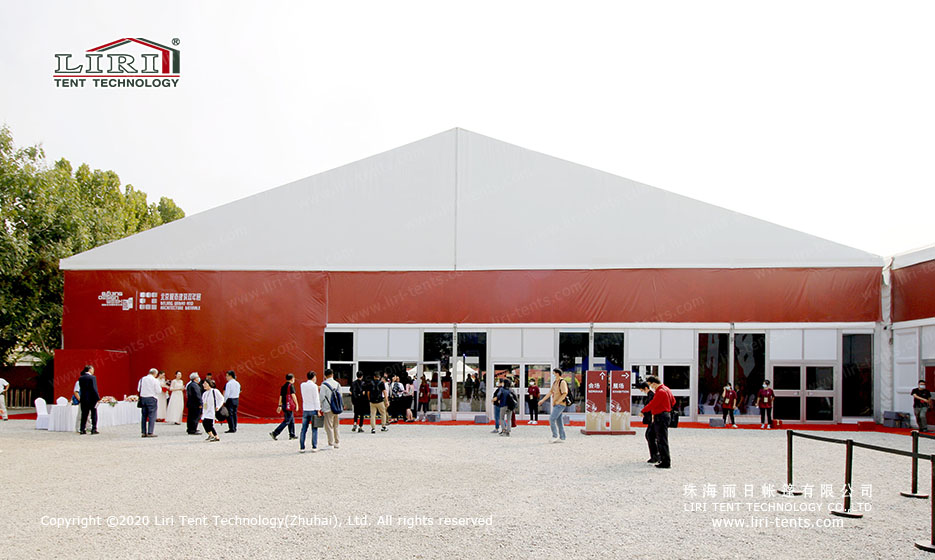

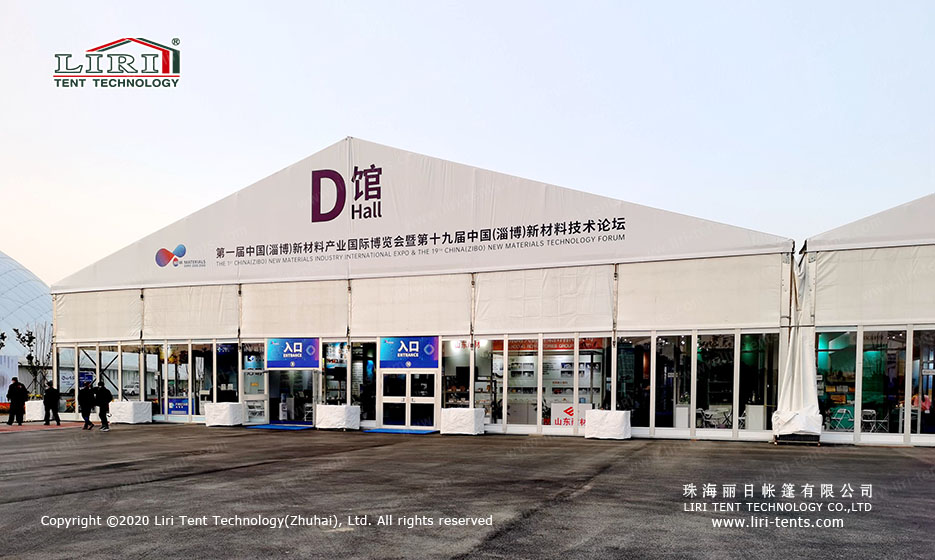

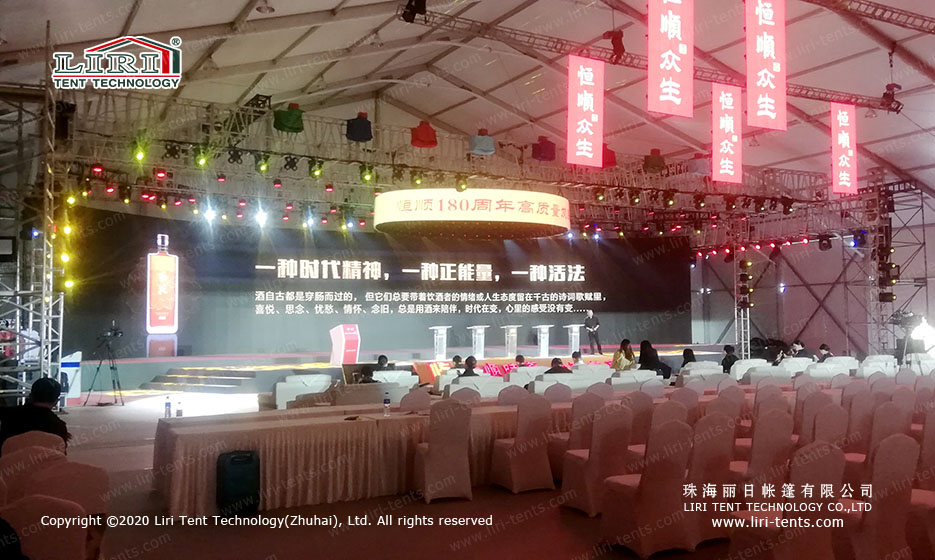

clear span event tents

The clear span event tent offers a very reliable and cost-effective solution for many businesses requiring temporary event space. Not only is it available with a wide range of shaped roofs, but it also has a wide range of practical accessories to provide a practical space with ease.
