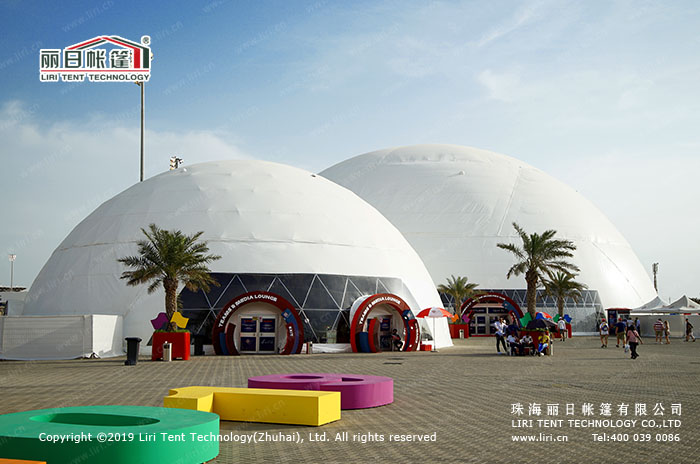

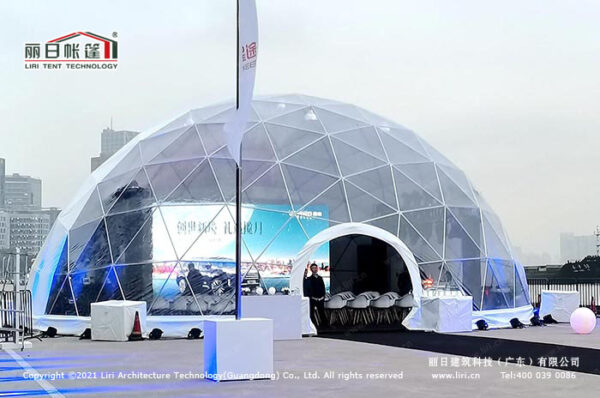

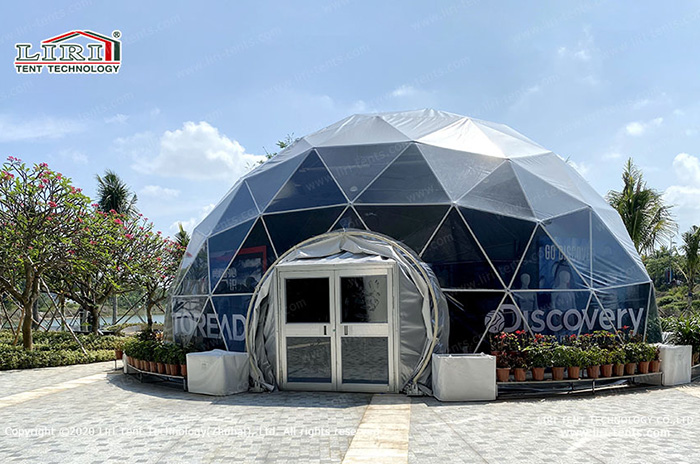

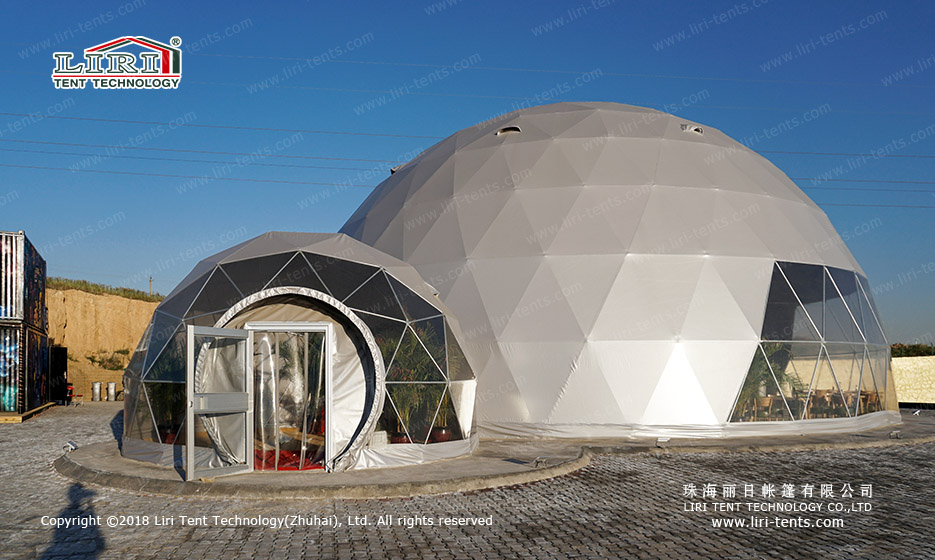

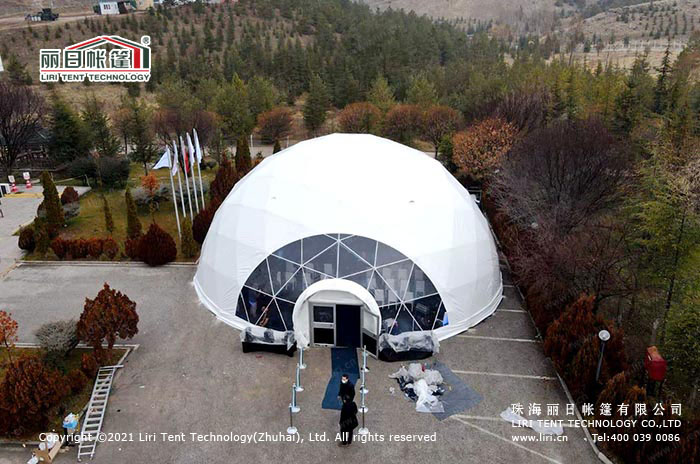

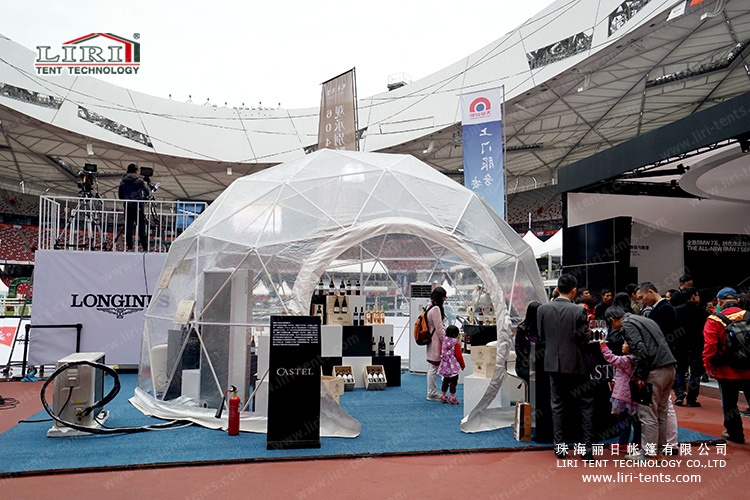

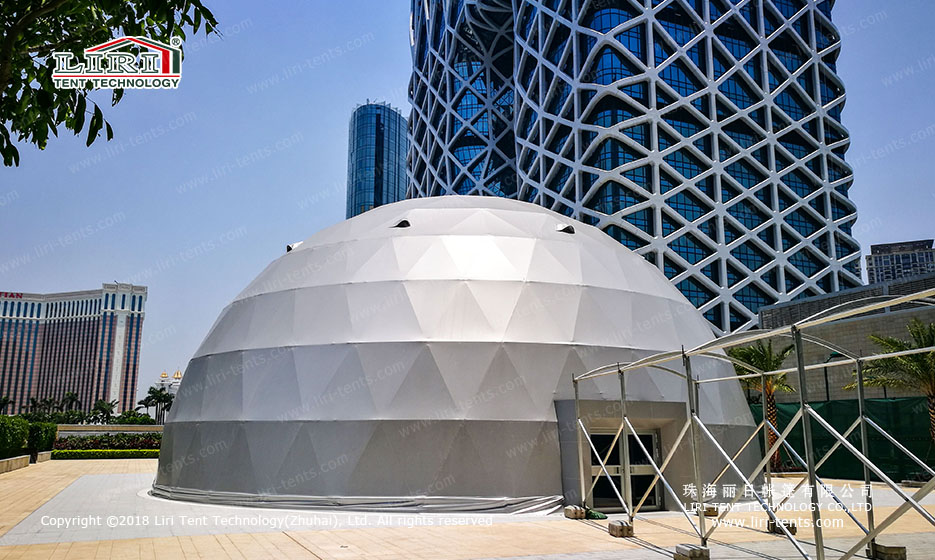

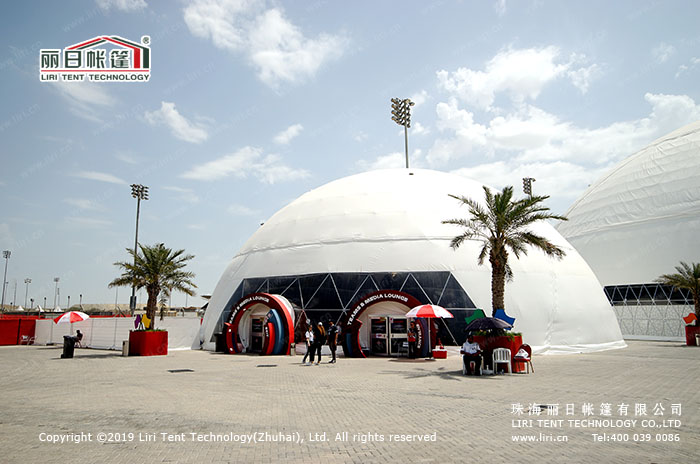

Geodesic Dome Event Tents

The geodesic dome tent has a very rigid structure. It is a triangular element covering the entire tent roof, distributing the force-bearing units to the entire tent support.

Geodesic dome tents use high-strength steel tubes with hot-dip galvanized surface treatment.

The size of geodesic dome tents can be manufactured from 3m to 60m. There are pop-up, inflatable, Eureka, mountain, and hotel tents, and there is no need to worry about the type of ground. Geodesic dome tents with bathrooms and dome tents for large events are very inexpensive to buy or rent.



Main Profile Material of Geodesic Dome Event Tents: hard pressed extruded aluminum 6061/T6.
Cover Material: 850g/sqm block-out,650g/sqm translucent double PVC-coated polyester textile.
Component Material: a superior enclosure with hot-dip galvanized steel or aluminum alloy.

Specification of Geodesic Dome Event Tents

DiameterCeiling HeightFloor AreaVolumeStruts Details
3m2.3m
7.1m²12.7m³20mm
4m2.89m12.6m²28m³20mm
5m2.93m19.6m²41m³20mm
6m3.52m28.3m²70m³20mm
7m4.1m38.5m²110m³26mm
8m4m50.2m²134m³26mm
9m4.5m63.6m²191m³26mm
10m5m78.5m²262m³26mm
11m5.5m95m²348m³26mm
12m6m113m²452m³33mm
13m5.82m132.7m²545m³33mm
14m6.27m153.9m²685m³33mm
15m
6.72m176.6m²845m³33mm
16m7.16m201m²1030m³33mm
17m8.5m226.9m²1285m³33mm
18m9m254.3m²1525m³33mm
19m9.5m283.4m²1795m³33mm
20m10m314m²2090m³38mm
21m10.5m346.2m²2420m³38mm
22m
11m379.9m²2785m³38mm
23m11.5m415.3m²3180m³38mm
24m12m452.2m²3615m³38mm
25m12.5m490.6m²4090m³48mm
30m13m706.5m²5744m³48mm
35m14m961m²8170m³48mm
40m15m1256m²11191m³51mm
45m18m1589.6m²17367m³48mm
50m20m1962.5m²

23823m³48mm
55m22m2374.6m²21710m³48mm
60m25m2826.0m²43524m³51mm

Advantages of geodesic dome tents

  • Relatively simple and quick to set up and dismantle.
  • The tent can be folded after disassembly, small size, convenient for transportation and storage.
  • A wide range of applications can do car shows, camping, parties, recreation, and other temporary activities.
  • No special requirements for the erection site.

Geodesic dome tent safety

  • Waterproof. Use double-sided PVC synthetic fiber cloth.
  • Wind resistance. Resist 11 wind speeds. Meets Australian DIN4102B1, M2 standards.
  • Flame retardant. Fireproof case performance meets international standards.
  • Strong structure. Can be built even on soft ground such as grass and beach.
