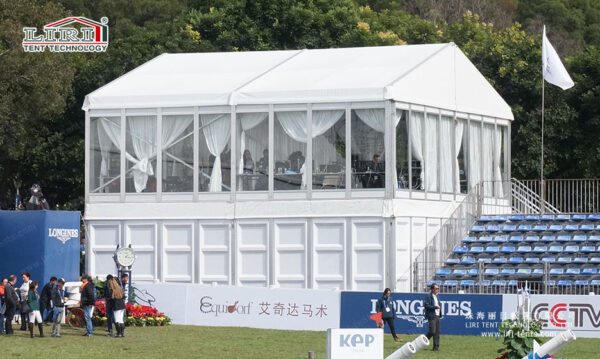

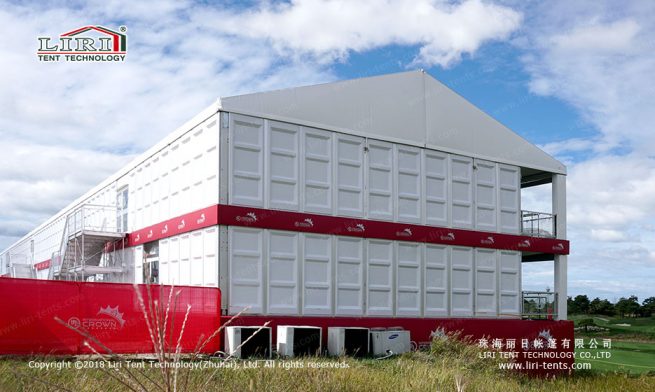

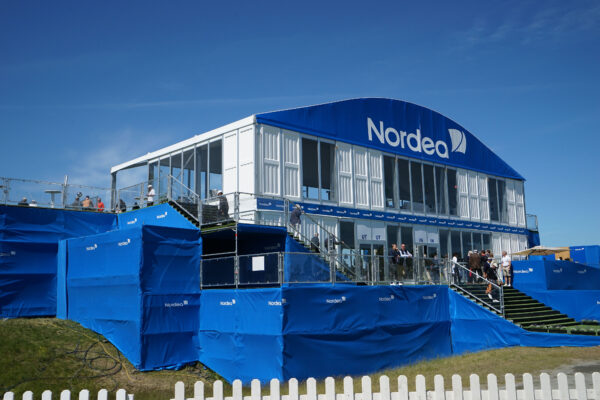

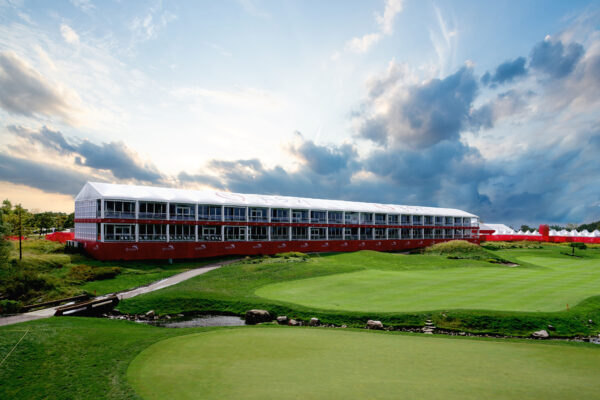

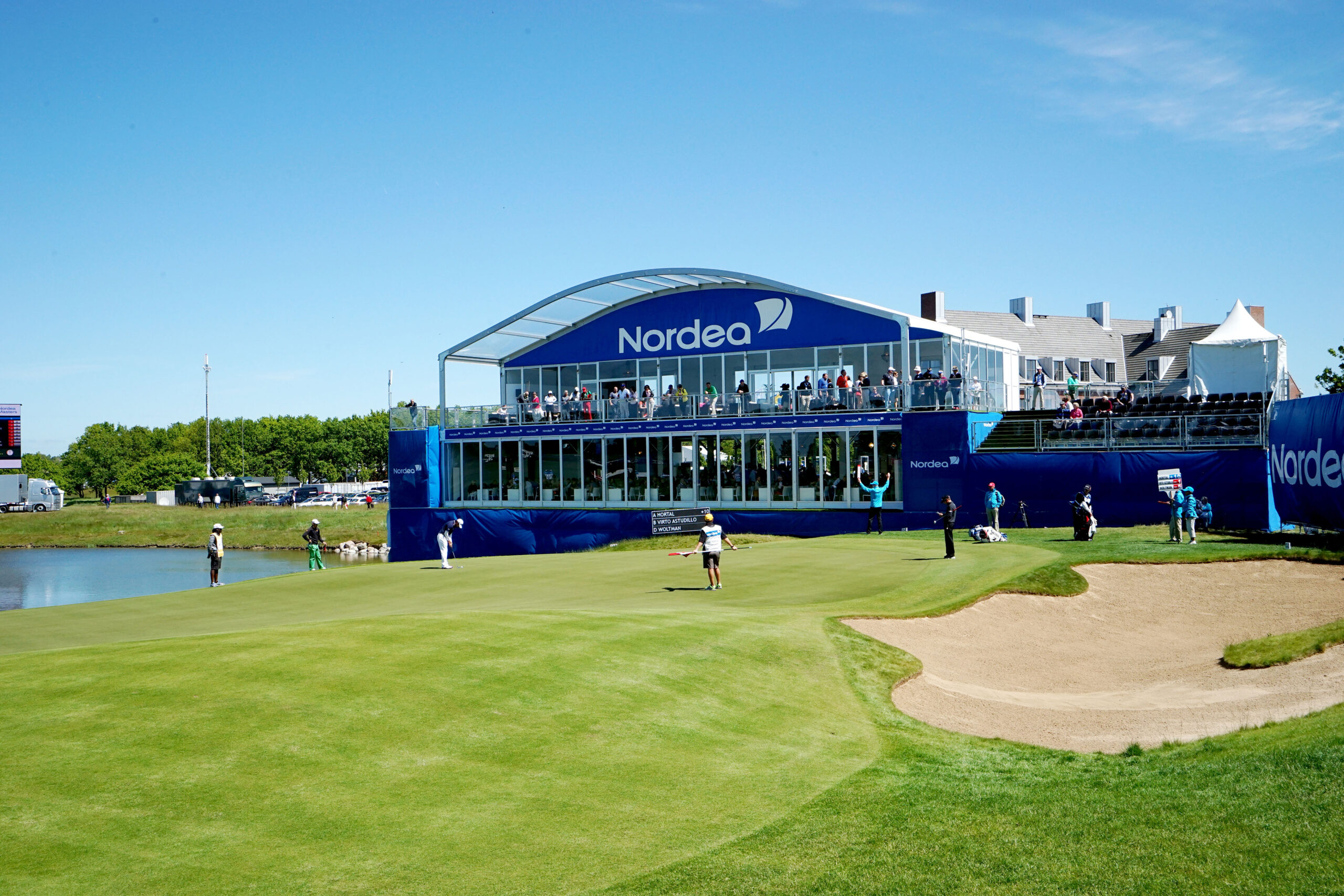

Double Decker Tent also called Two Story Tent which builds two floors on the same area so as to make 100% use of the land. The side height of the tent can be 8m or even higher. It is popular used outdoor sports events and international events, like Olympic Games, F1, PGA golf Events.
The framework of the Double Decker Tent is adept at high-quality hard pressed aluminum alloy, life span can be 20 years. The roof cover is PVC fabric, waterproof, flame retardant, UV resistant. In order to make your tent is different from others, you can print logos on the cover or make a customized cover with different colors and designs.
The shape of the rooftop can be A shape, dome shape, high peak, or cube so as to match different themes of the events. As it is a modular design, you can add a watching balcony and insulation restrooms on the second floor so as to meet different clients’ needs.
The width of Double Decker Tent is varied from 10m to 40m, length is unlimited, bay distance is 5m, you can make it shorter or longer by your needs, side height can be 8m.

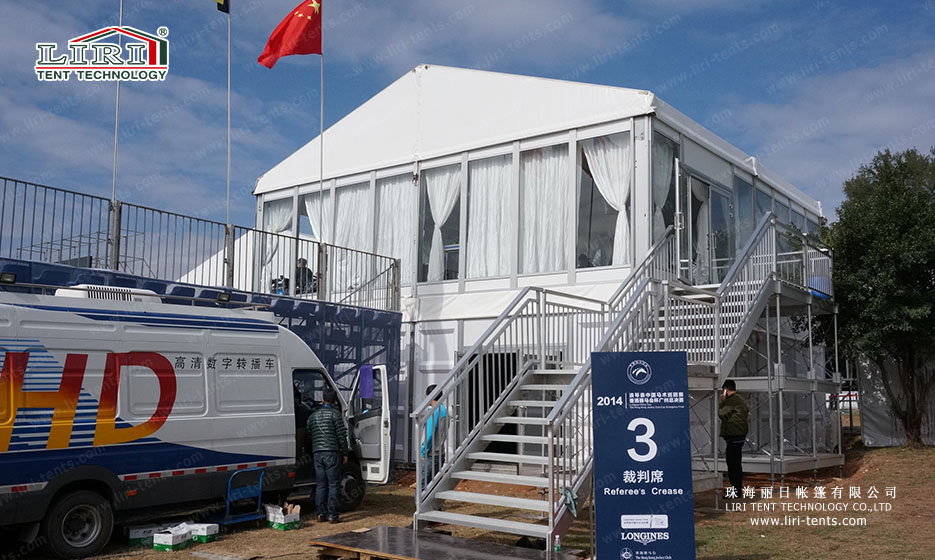

Inside and outside aluminum stairs
PVC fabric sidewalls with clear windows
Roof lining decoration
Electrical rolling door
|Span Whidth||Eave Height||Ridge Height||Bay Distance||Main Profile|
|10m||6.75m||8.50m||5m||300x120x5mm (4 - channel)|
|15m||6.75m||9.34m||5m||300x120x5mm (4 - channel)|
|20m||6.75m||10.17m||5m||300x120x5mm (4 - channel)|
|25m||6.75m||11m||5m||300x120x5mm (4 - channel)|
|30m||6.75m||11.75m||5m||300x120x5mm (4 - channel)|
|40m||6.75m||13.5m||5m||300x120x5mm (4 - channel)|
